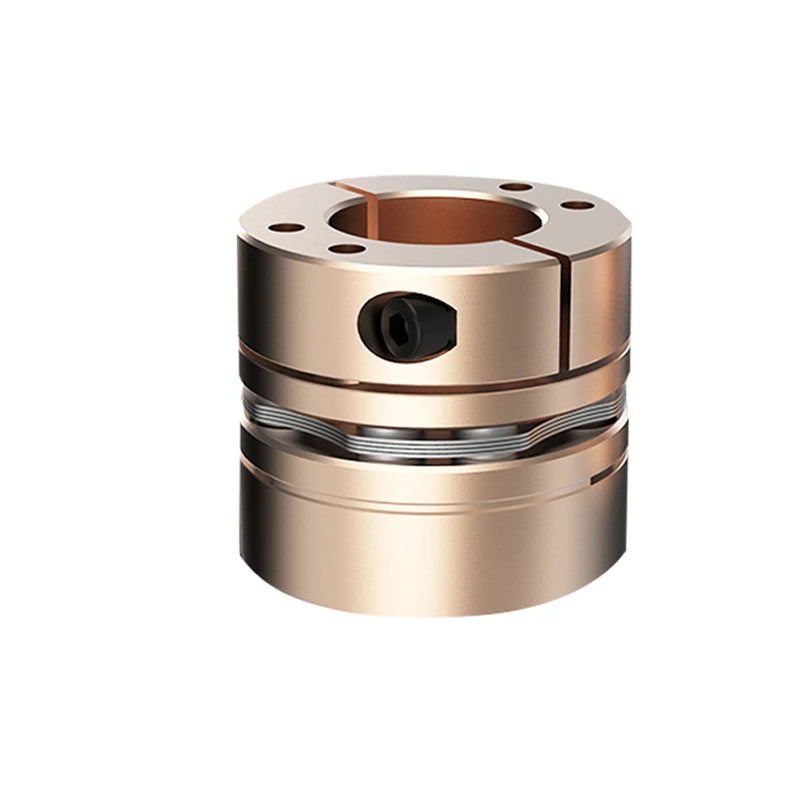

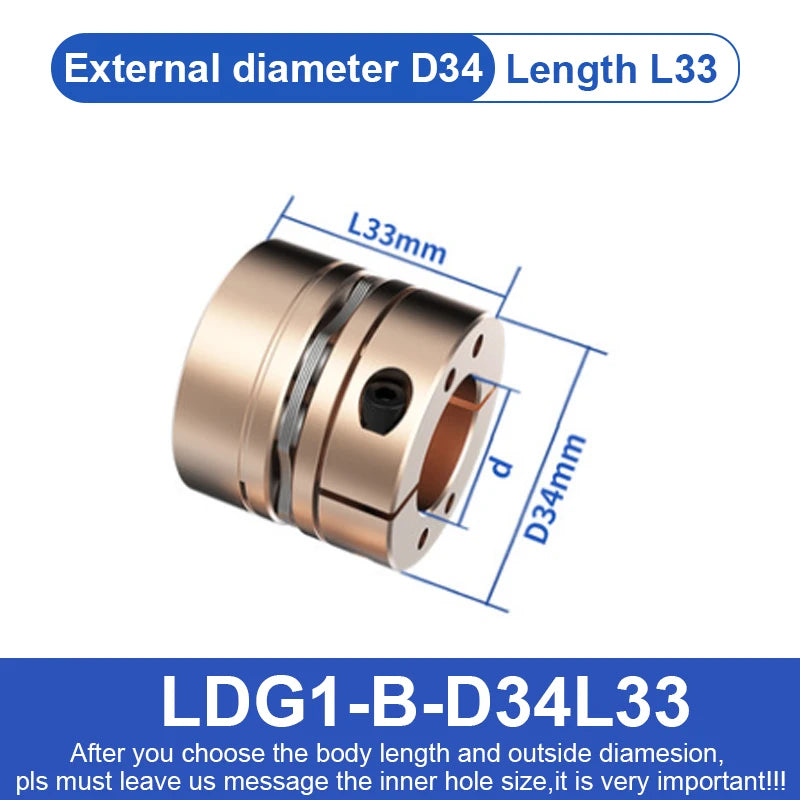

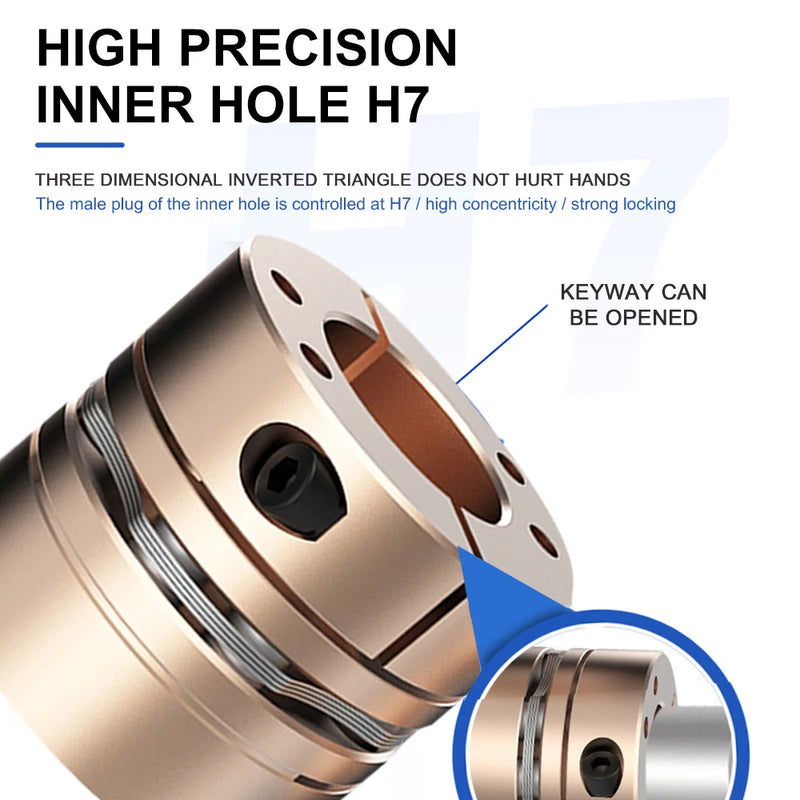

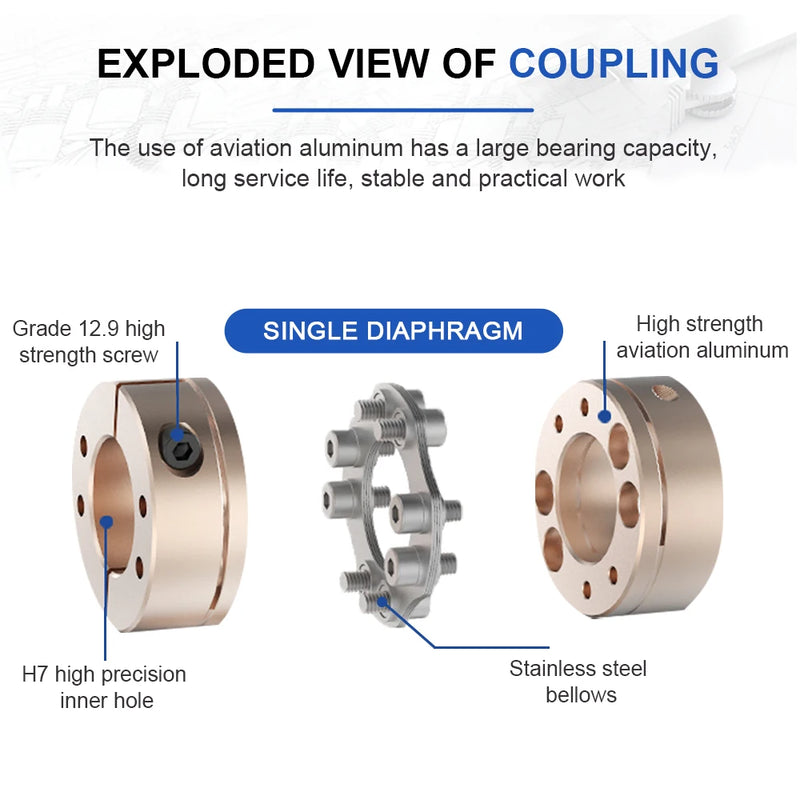

Acoplamiento de diafragma flexible D34L33 6 mm a 16 mm 8 tornillos más grande

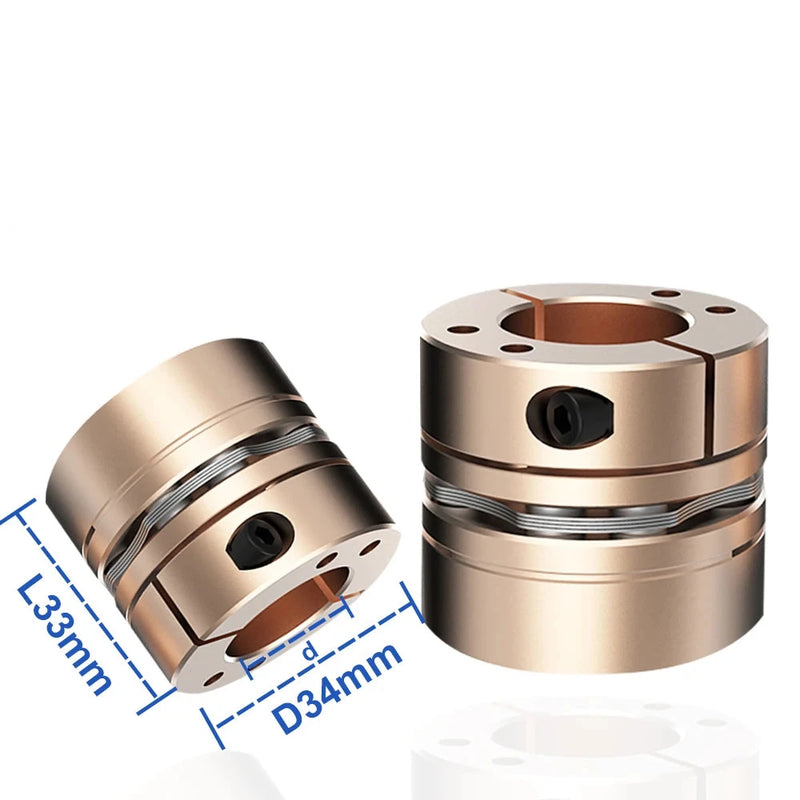

Modelo |
D |
l |
D1-D2 |
METRO |
L1 |
L2 |
L3 |
L4 |
Atornillar esfuerzo de torsión |
26 |
26 |
4-12 |
M3 |
11.8 |
2.4 |
4.3 |
/ |
2.1 |
|
| 32 |
30 |
5-14 |
M3 |
13.4 |
3.2 |
4.2 |
/ |
2.1 |
|
34 |
33 |
6-16 |
M4 |
14.9 |
3.2 |
5.2 |
/ |
4.9 |
|
40 |
35 |
8-22 |
M4 |
15.9 |
3.2 |
5.2 |
/ |
4.9 |
|
45 |
40 |
10-24 |
M5 |
18 |
4 |
6.4 |
/ |
10 |
|
| 50 |
44 |
12-26 |
M5 |
20 |
4 |
6.15 |
/ |
10 |
|
56 |
49 |
14-30 |
M6 |
22 |
5 |
7 |
/ |
17 |
|
sesenta y cinco |
58 |
16-35 |
M8 |
26,5 |
5 |
9 |
/ |
44 |
|
87 |
68 |
20-45 |
M10 |
30,75 |
6.5 |
10,75 |
/ |
90 |
Modelo |
Par nominal |
Tuerca maxima |
Velocidad máxima |
Momento de inercia |
Paralelo permitido |
angular permitido |
Peso |
| LDG1-B-D26L26 |
2.1 |
3.5 |
10000 |
3*10-6 |
0.1 |
1 |
47 |
| LDG1-B-D32L30 |
3.6 |
6 |
10000 |
9*10-5 |
0.1 |
1 |
75 |
| LDG1-B-D34L33 |
9 |
15 |
10000 |
3*10-5 |
0.1 |
1 |
91 |
| LDG1-B-D40L35 |
13.2 |
22 |
10000 |
3,8*10-5 |
0.1 |
1 |
129 |
| LDG1-B-D45L40 |
15 |
25 |
10000 |
3*10-5 |
0.1 |
1 |
182 |
| LDG1-B-D50L44 |
27 |
45 |
10000 |
5,8*10-5 |
0.1 |
1 |
243 |
| LDG1-B-D56L49 |
28.8 |
48 |
8000 |
1,4*10-4 |
0.1 |
1 |
336 |
| LDG1-B-D65L58 |
46,6 |
78 |
6000 |
5,7*10-4 |
0.1 |
1 |
529 |
| LDG1-B-D87L68 |
177 |
295 |
5000 |
8,7*10-3 |
0.1 |
1 |
1101 |
