M118A Digital Mini Multimeter – 6000 Counts True RMS Auto Range, AC/DC 0.5–600V, NCV, Diode, Capacitance, Backlight & Flashlight
Specifications
| Parameter | Value |
|---|---|
| Model number | M118A Digital Mini Multimeter |
| Display | 6000 counts |
| Operating mode | Auto range |
| DC voltage range | 0.5V–600V |
| AC voltage range | 0.5V–600V |
| DC current range | 20mA / 10A |
| AC current range | 20mA / 10A |
| Resistance range (as provided) | 0.1–50 Ω |
| True RMS | Yes |
| NCV | Yes |
| Data hold | Yes |
| Sample rate | 3 times per second |
| Backlight | Yes |
| Flashlight | Yes |
| Auto power off | Yes |
| Battery included | No |
| Certification | None stated |
| High-concern chemicals | None |
The M118A is a compact 6000-count digital mini multimeter designed for fast everyday measurements and simple troubleshooting in electrical and electronics work. It features auto-ranging operation, a clear digital display with backlight, and a built-in flashlight for working in darker areas such as cabinets, junction boxes or behind appliances. With True RMS support and a 3 readings/second update rate, it offers stable measurements for typical AC and DC tasks.
The meter measures AC/DC voltage from 0.5V to 600V and supports current ranges up to 10A (via test leads). It also includes NCV non-contact voltage detection, diode test, capacitance measurement, and data hold, plus auto power off to save energy. The M118A is supplied without a battery.
Technical correction: the provided “Measuring Resistance Range: 0.1~50 Ohm” looks unrealistically narrow for a multimeter and is often a typo in listings. Because no detailed resistance ranges were supplied beyond that, the description keeps the value as provided, but it should be verified with the product manual or label before publishing as a guaranteed spec.
Package contents (without battery)

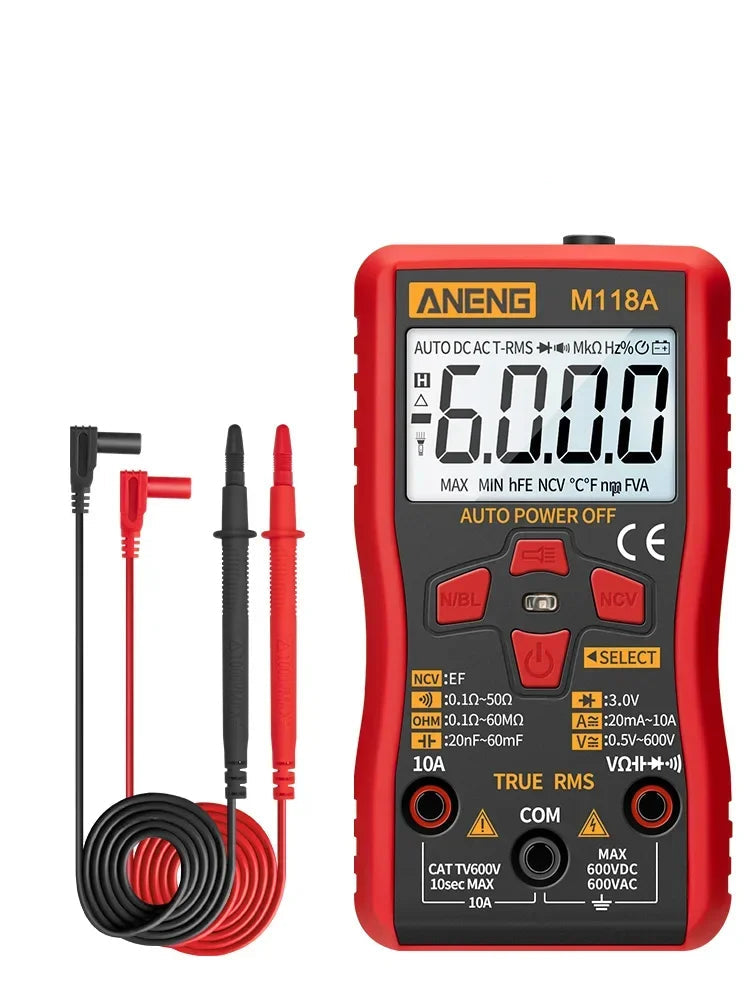

Item 1: 1 × M118A digital multimeter
Item 2: 1 × Test leads
Item 3: 1 × English user manual
