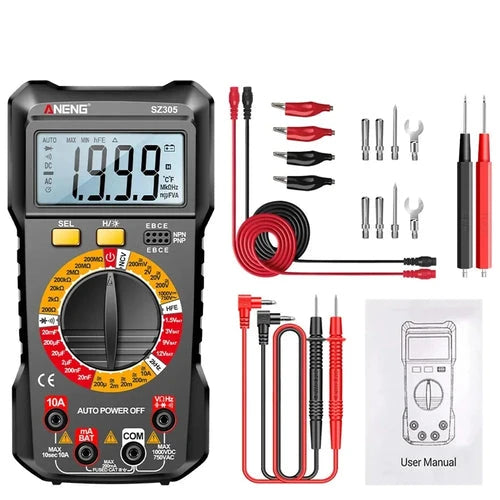

SZ305 Digital Multimeter - AC/DC Voltage, Current, Resistance, Capacitance Tester
Description:

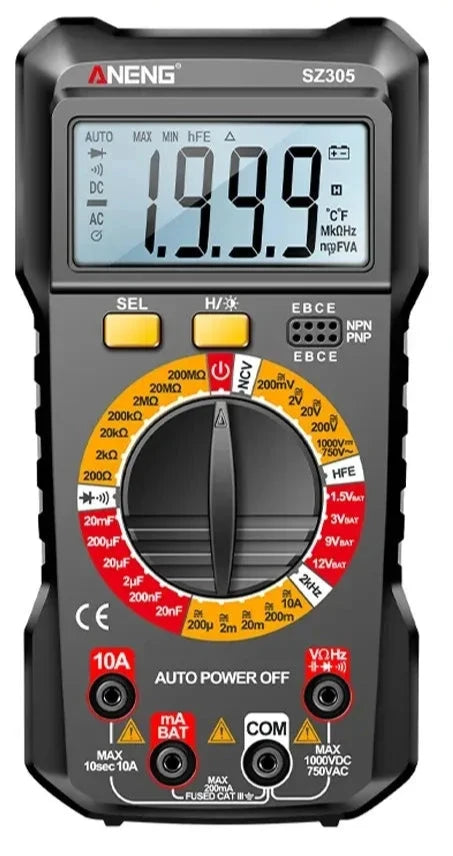

The ANENG SZ305 is a versatile handheld digital multimeter designed to meet international electrical safety standards. It accurately measures AC/DC voltage, AC/DC current, resistance, capacitance, diode functionality, and more. Ideal for both professional and DIY applications, this multimeter offers precise readings with a user-friendly interface.
Features:
- Model: SZ305
- Auto Power Off: Yes

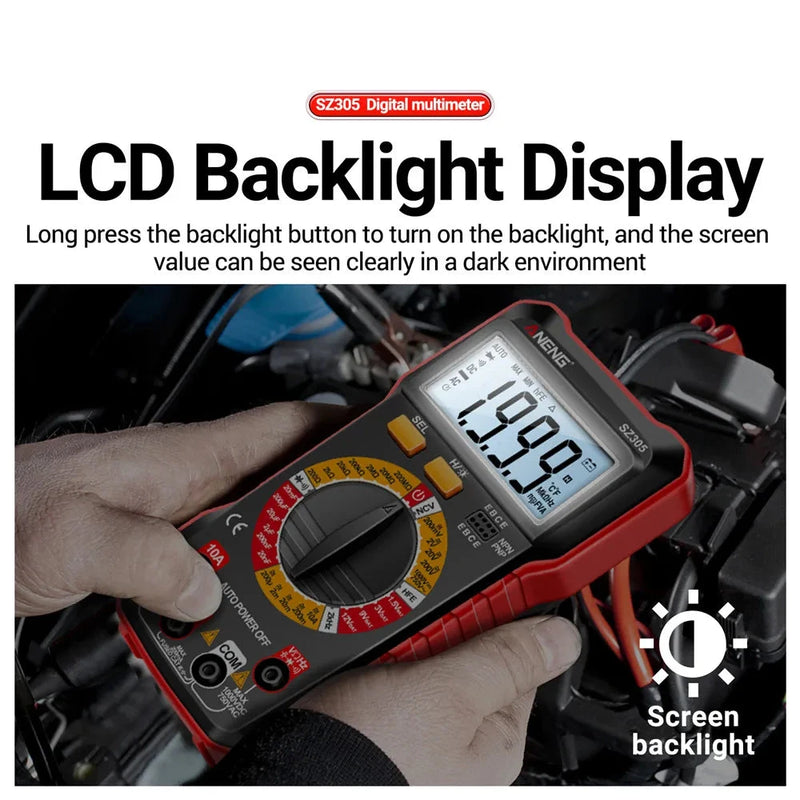

- Screen Backlight: Yes
- Data Retention: Yes
- Material: ABS
- Battery: 2 x AAA (not included)
- Max Count: 1999
- Low Battery Indication: Yes

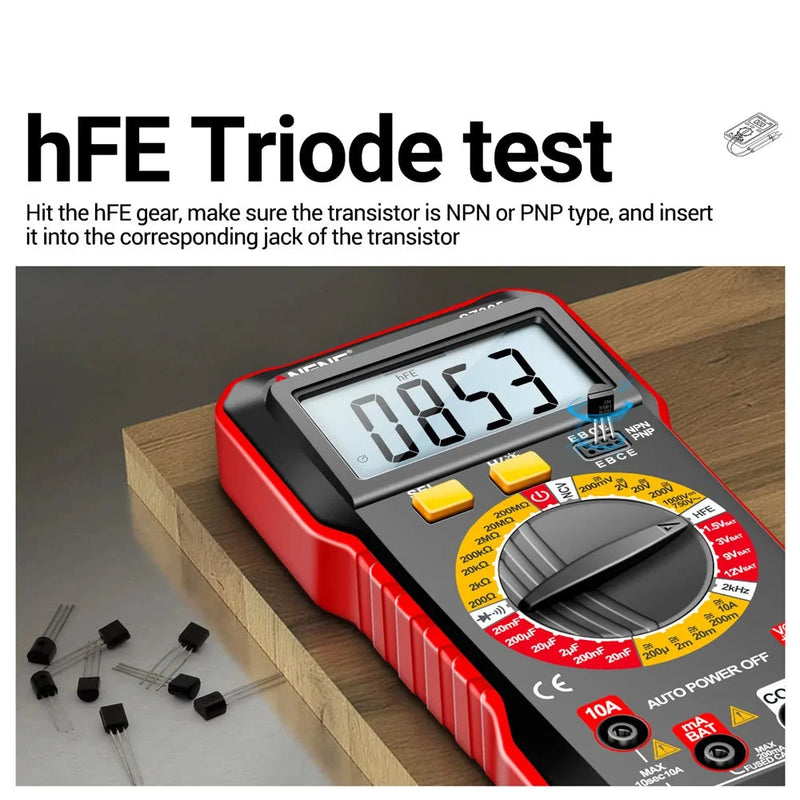

- Diode & hFE Triode Testing: Yes
- Buzzer & NCV Voltage Detection: Yes

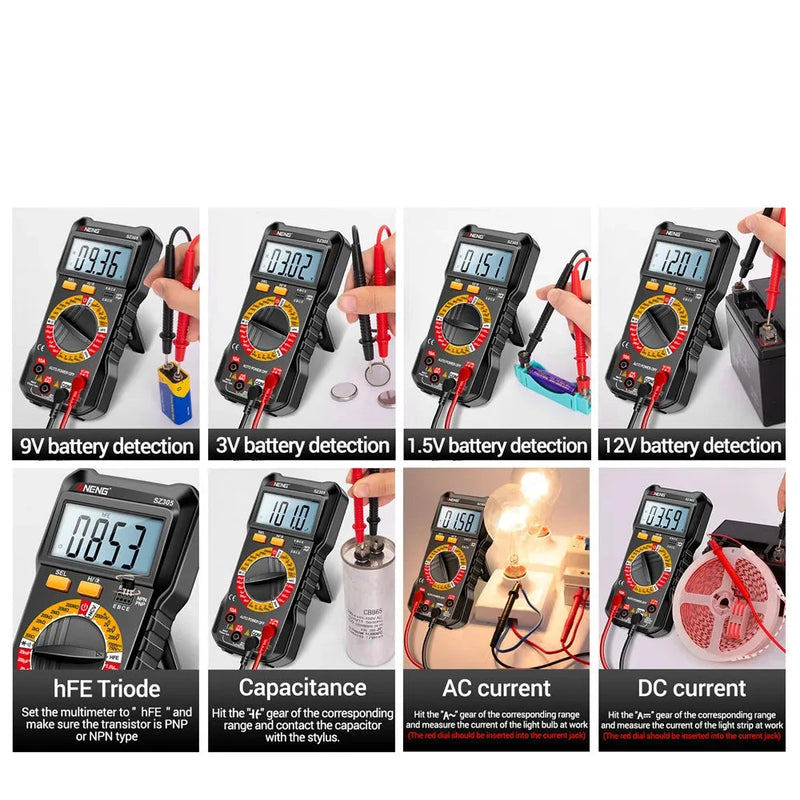

- BAT Battery Testing: 1.5V, 3V, 9V, 12V

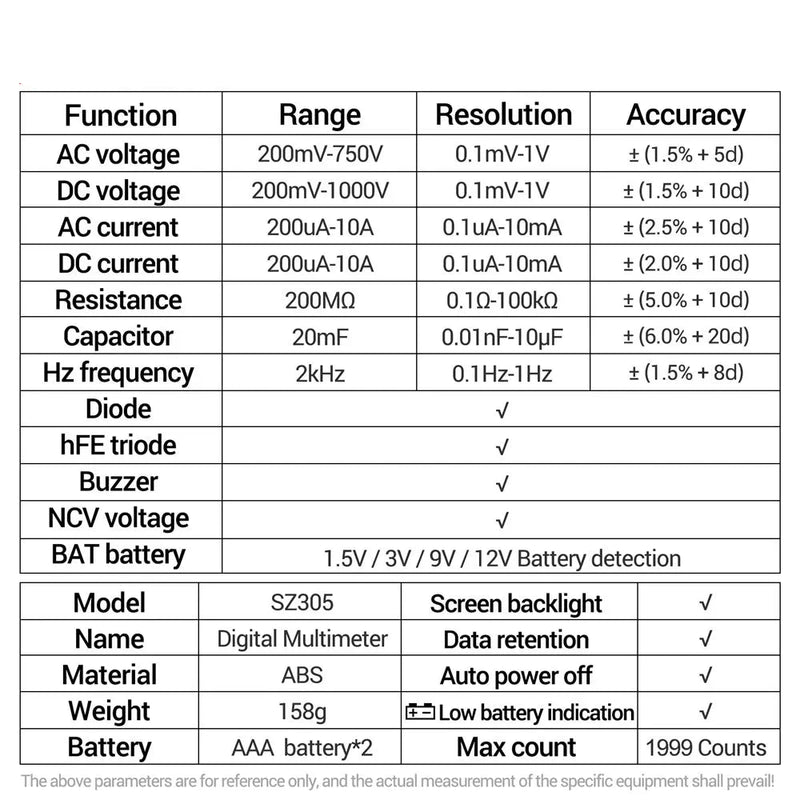

Technical Specifications:
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| AC Voltage | 200mV - 750V | 0.1mV - 1V | ±(1.5% + 5d) |
| DC Voltage | 200mV - 1000V | 0.1mV - 1V | ±(1.5% + 10d) |
| AC Current | 200µA - 10A | 0.1µA - 10mA | ±(2.5% + 10d) |
| DC Current | 200µA - 10A | 0.1µA - 10mA | ±(2.0% + 10d) |
| Resistance | 200MΩ | 0.1Ω - 100kΩ | ±(5.0% + 10d) |
| Capacitance | 20mF | 0.01nF - 10µF | ±(6.0% + 20d) |
| Frequency (Hz) | 2kHz | 0.1Hz - 1Hz | ±(1.5% + 8d) |
Specifications:
| Specification | Details |
|---|---|
| Dimensions | 188 x 91 x 38 mm (7.4 x 3.6 x 1.5 in) |
| Weight | 158g (0.35 lbs) |
| Battery | 2 x AAA |

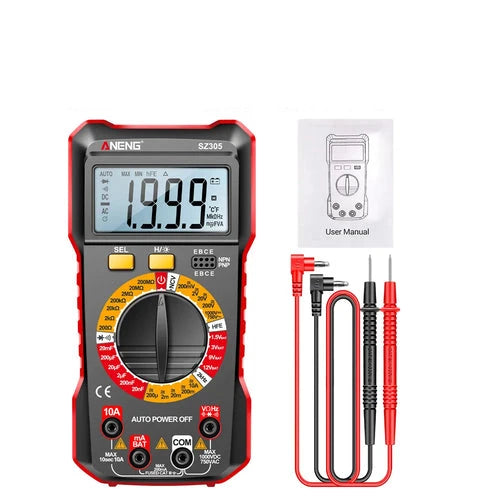

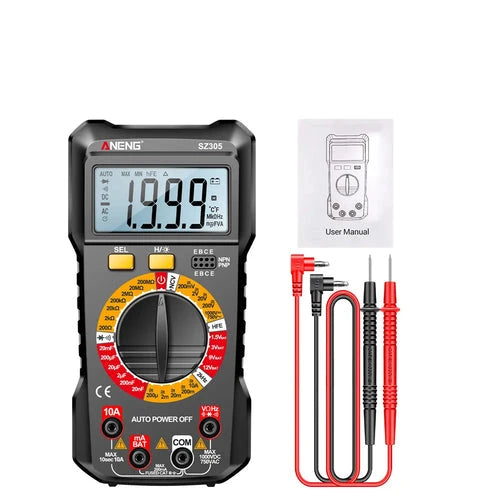

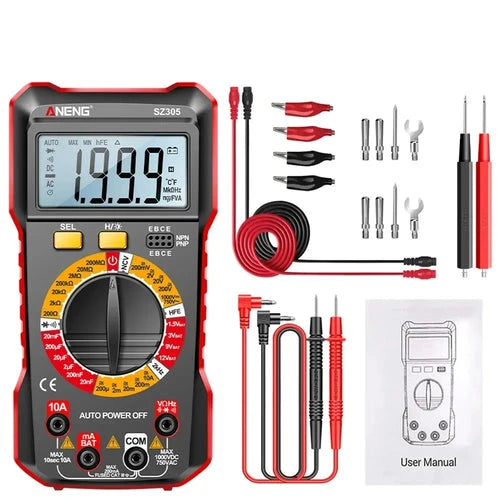

Packaging Content:
- 1 x Multimeter (Battery not included)
- 1 x Test Lead
- 1 x English User Manual
- 1 x Outer Packing Box (depending on the choice)
Keywords: Digital Multimeter, AC/DC Voltage, Current Tester, Resistance, Capacitance, Handheld, Accurate Measurements, Electrical Testing
