Inductance Digital Multimeter - 6000 Counts True RMS Handheld Tester
The ANENG AL01 Digital Multimeter is a versatile handheld measuring device designed to meet international electrical safety standards. This multimeter provides accurate measurements for AC/DC voltage, current, resistance, capacitance, inductance, frequency, diode testing, and more. With its 6000-count LCD display and true RMS functionality, it’s perfect for professionals and hobbyists.

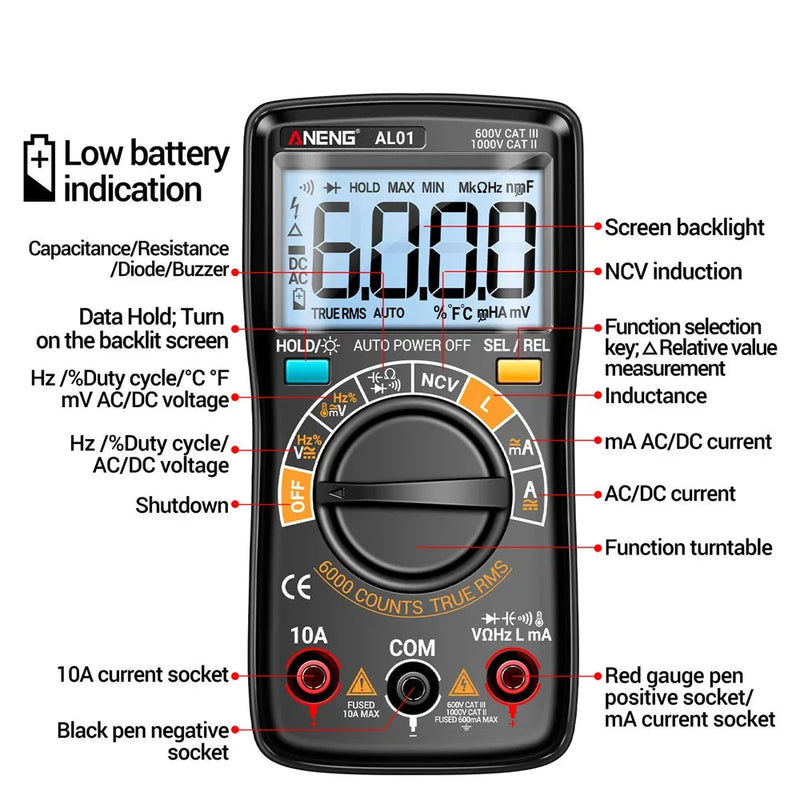

Key Features:
- True RMS Measurement: Ensures accurate readings for AC and DC voltage and current.
- Auto-Range & High Precision: Automatically selects the measurement range for more precise and reliable results.

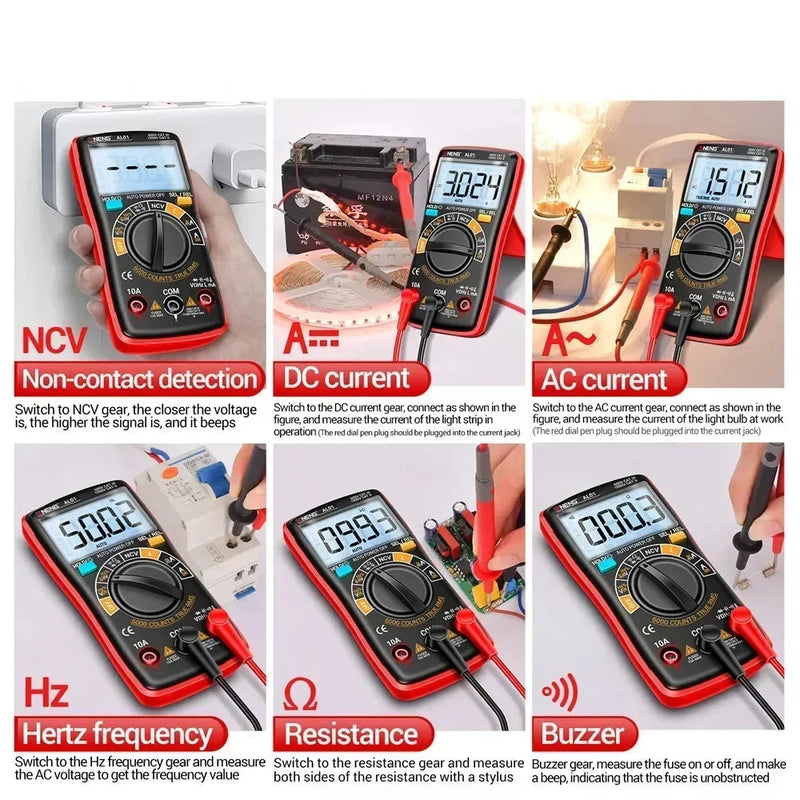

- Multiple Measurement Capabilities: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, inductance, temperature, duty cycle, and diode testing.
- NCV Detection: Non-contact voltage detection enhances safety during measurements.
- Backlit Screen: Features a large, easy-to-read backlit LCD screen for use in low-light conditions.
- Data Hold & Auto Power Off: Data retention function and auto power-off to save battery life.

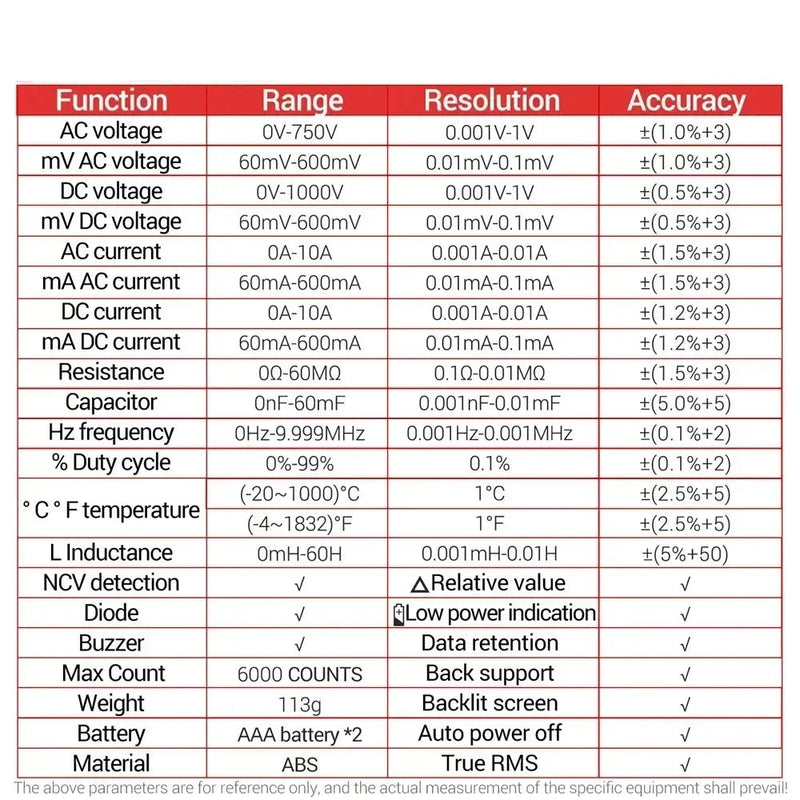

Technical Specifications:
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| AC Voltage | 0 V - 750 V | 0.001 V - 1 V | ±(1.0% + 3 digits) |
| mV AC Voltage | 60 mV - 600 mV | 0.01 mV - 0.1 mV | ±(1.0% + 3 digits) |
| DC Voltage | 0 V - 1000 V | 0.001 V - 1 V | ±(0.5% + 3 digits) |
| mV DC Voltage | 60 mV - 600 mV | 0.01 mV - 0.1 mV | ±(0.5% + 3 digits) |
| AC Current | 0 A - 10 A | 0.001 A - 0.01 A | ±(1.5% + 3 digits) |
| mA AC Current | 60 mA - 600 mA | 0.01 mA - 0.1 mA | ±(1.5% + 3 digits) |
| DC Current | 0 A - 10 A | 0.001 A - 0.01 A | ±(1.2% + 3 digits) |
| mA DC Current | 60 mA - 600 mA | 0.01 mA - 0.1 mA | ±(1.2% + 3 digits) |
| Resistance | 0 Ω - 60 MΩ | 0.1 Ω - 0.01 MΩ | ±(1.5% + 3 digits) |
| Capacitance | 0 nF - 60 mF | 0.001 nF - 0.01 mF | ±(5.0% + 5 digits) |
| Frequency (Hz) | 0 Hz - 9.999 MHz | 0.001 Hz - 0.001 MHz | ±(0.1% + 2 digits) |
| Duty Cycle (%) | 0% - 99% | 0.1% | ±(0.1% + 2 digits) |
| Temperature (°C) | -20°C to 1000°C | 1°C | ±(2.5% + 5 digits) |
| Temperature (°F) | -4°F to 1832°F | 1°F | ±(2.5% + 5 digits) |

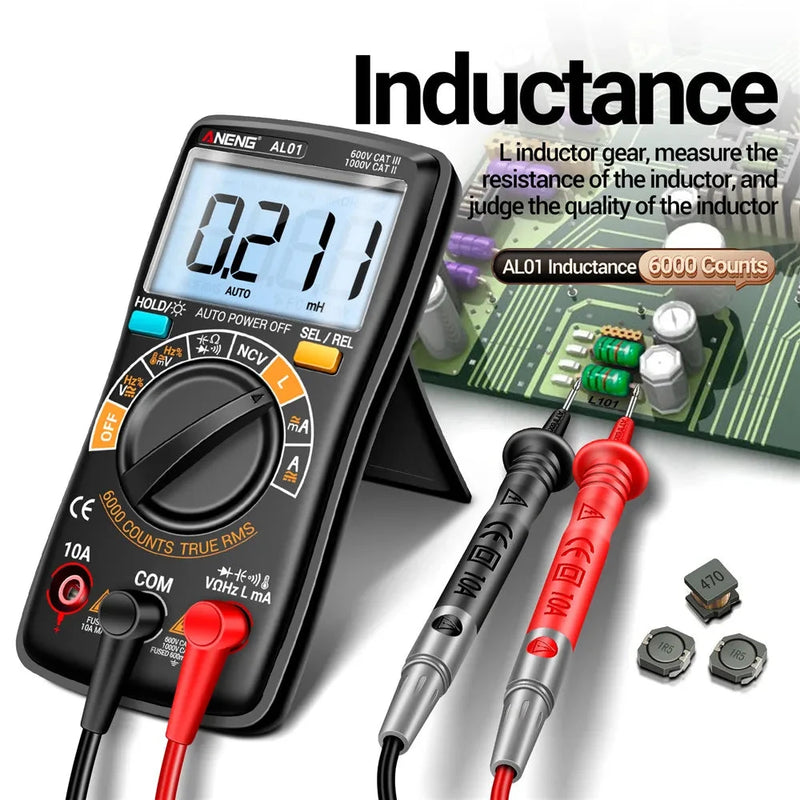

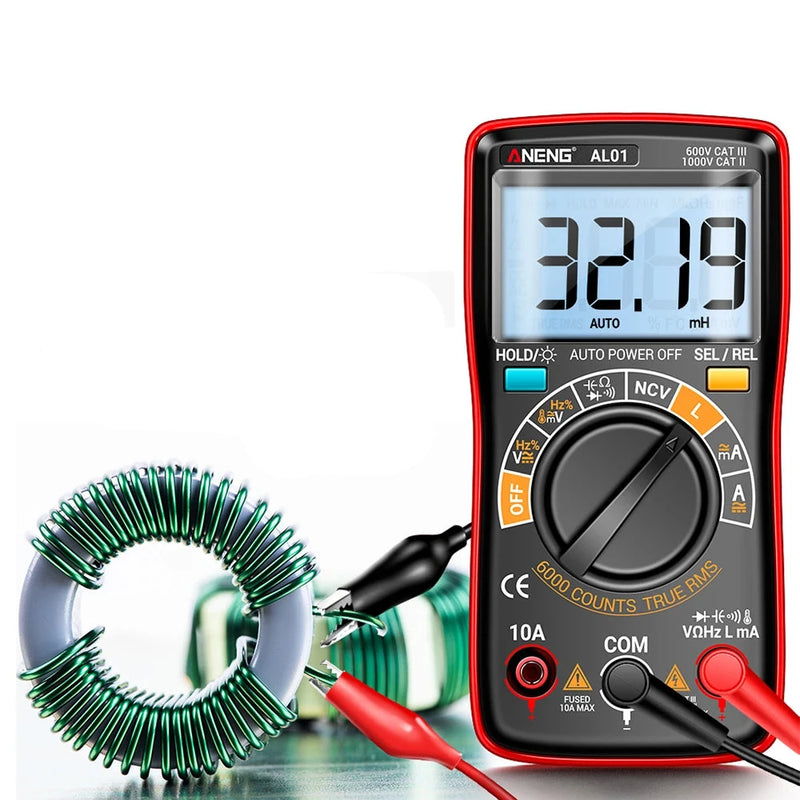

| Inductance (L) | 0 mH - 60 H | 0.001 mH - 0.01 H | ±(5% + 50 digits) |
| Other Features | NCV Detection (√), Diode (√), Low Power Indication (√), Buzzer (√), Data Retention (√), Auto Power Off (√) |
Overview:
- Display: 6000-count LCD with backlight.
- Power Supply: 2 × AAA batteries (not included).
- Material: Durable ABS construction.
- Weight: Approximately 113g.
- Max Count: 6000 counts.

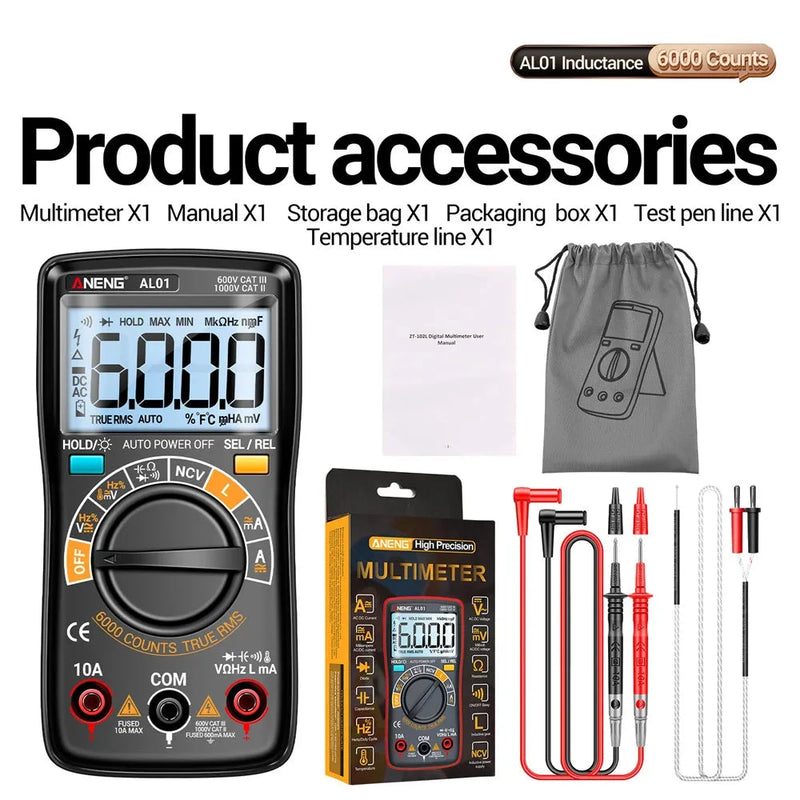

Packaging Content:
- Items vary based on selection.
