HGR30 30mm Heavy Load Linear Guide Rail Kit - 400mm to 2500mm
Precio original
€46,59
-
Precio original
€136,22
Precio original
€46,59
€46,59
-
€136,22
Precio actual
€46,59
Description: The HGR30 30mm Heavy Load Linear Guide Rail Kit provides high precision and load-bearing capability for industrial applications such as CNC machines, automation systems, and robotics. This versatile system ensures smooth linear motion and long-lasting performance.
The kit includes:

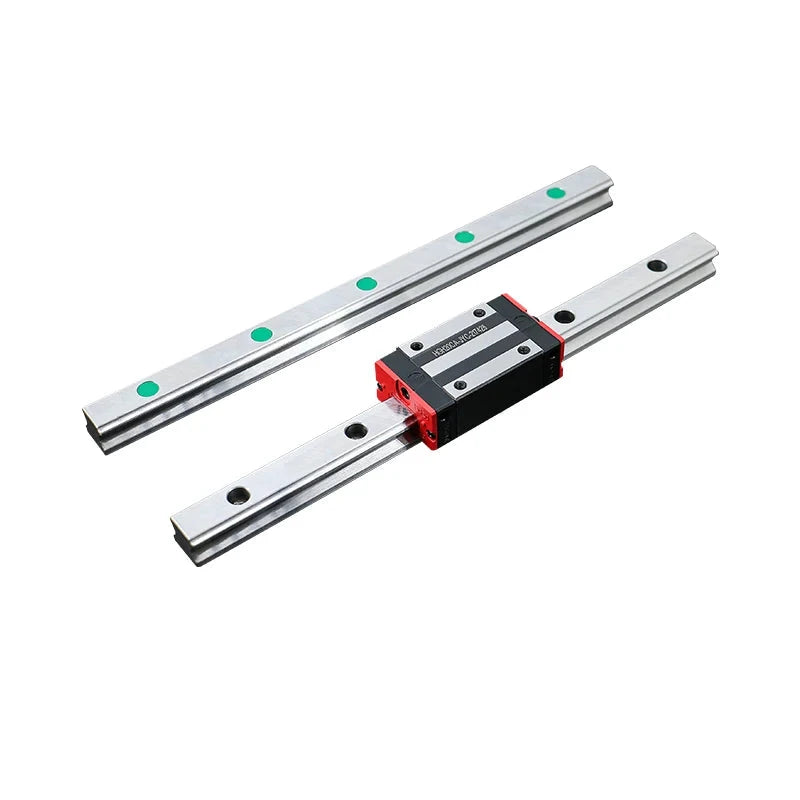

- Linear Guide Rails: Lengths available from 400 mm to 2500 mm (15.75" to 98.43").

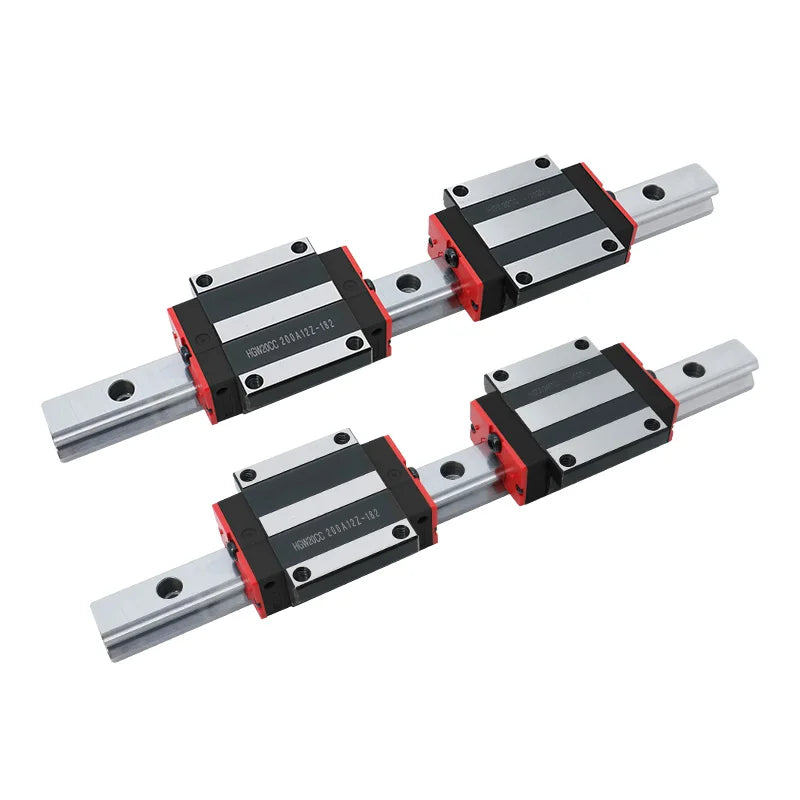

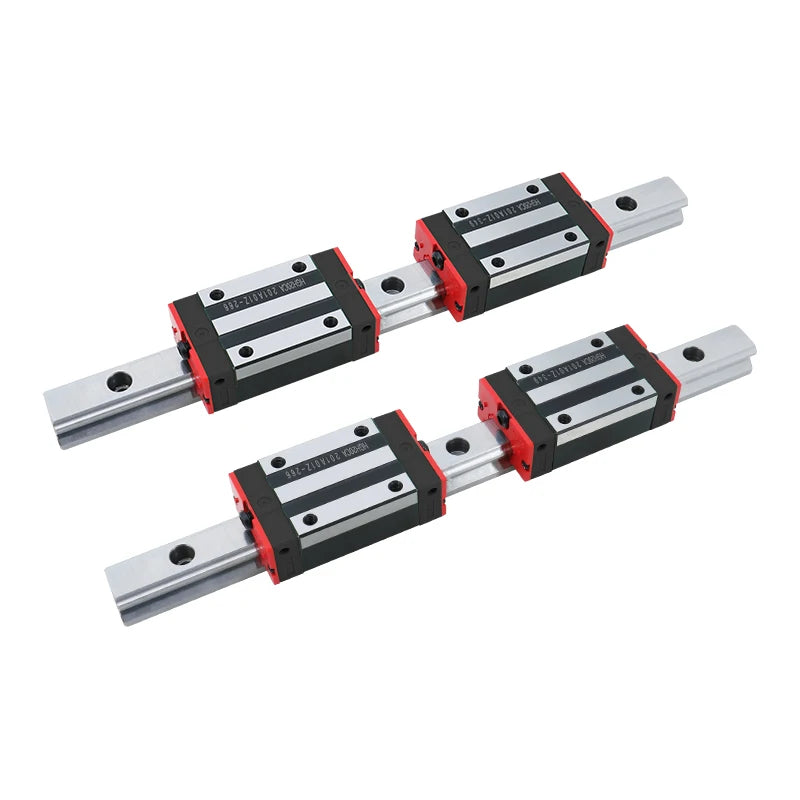

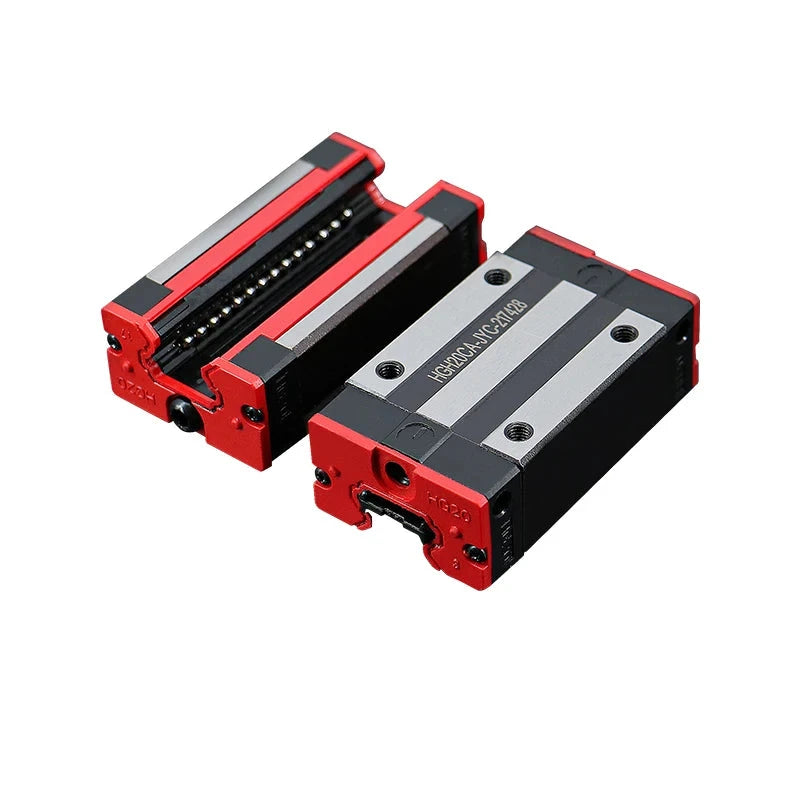

- Carriage Options: HGH30CA (Square Type) or HGW30CC (Flange Type) for diverse mounting needs.
- High-Quality Materials: Engineered for durability and high static/dynamic load capacity.

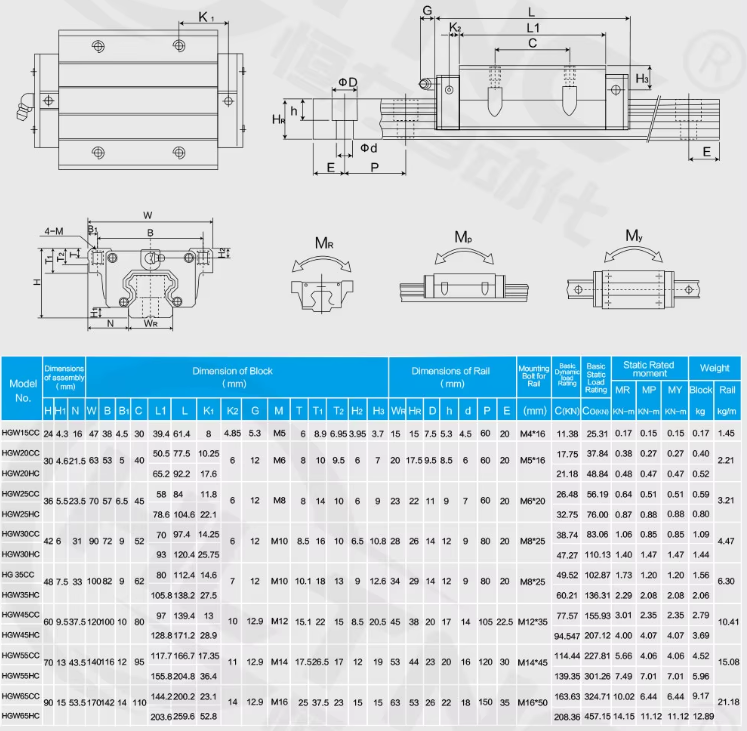

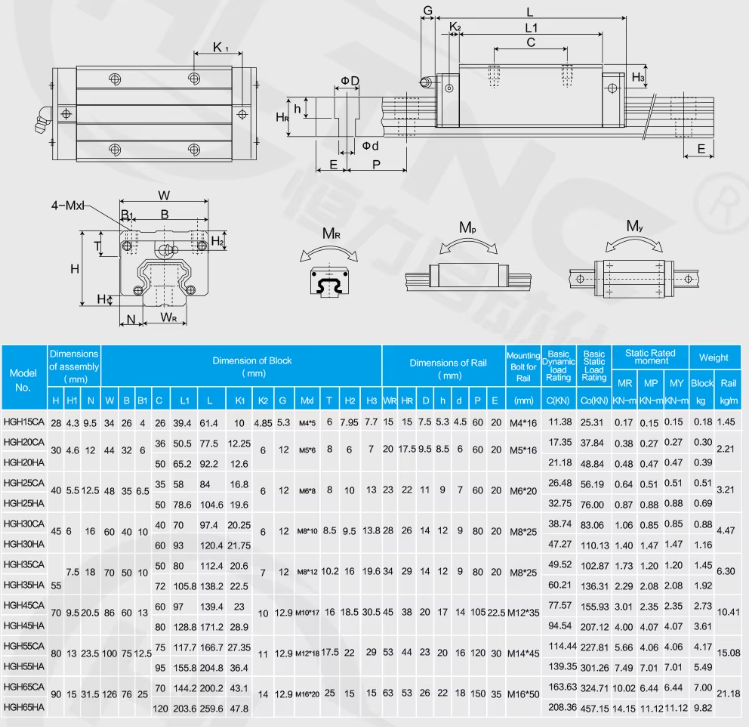

Technical Specifications:
| Feature | HGH30CA | HGW30CC |
|---|---|---|
| Dimensions | ||
| Rail Length (mm/in) | 400–2500 mm (15.75"–98.43") | 400–2500 mm (15.75"–98.43") |
| Block Height (H, mm/in) | 45 mm (1.77") | 42 mm (1.65") |
| Rail Width (WR, mm/in) | 30 mm (1.18") | 30 mm (1.18") |
| Weight (Block, kg/lbs) | 1.56 kg (3.44 lbs) | 1.47 kg (3.24 lbs) |
| Weight (Rail, kg/m/lbs) | 4.47 kg/m (3.0 lbs/ft) | 4.47 kg/m (3.0 lbs/ft) |
| Load Ratings | ||
| Dynamic Load (C, kN) | 38.74 kN | 38.74 kN |
| Static Load (C₀, kN) | 83.06 kN | 83.06 kN |
| Other Features | ||
| Mounting Bolt | M8x25 | M8x25 |
This kit is highly suitable for applications requiring precise, reliable, and robust linear motion components. Its modular design and compatibility with multiple lengths make it adaptable for a wide range of projects.
Keywords: HGR30 Linear Guide Rail, CNC Motion System, Heavy Load Rail, 30mm Precision Rail, Industrial Automation, Robotics Guide, Linear Motion Components
