High-Precision Carriage Blocks - HGH & HGW Series for Linear Guide Rails
Precio original
€16,79
-
Precio original
€38,04
Precio original
€34,82
€16,79
-
€38,04
Precio actual
€34,82
Description: The HGH and HGW series blocks are premium components for linear guide rails, designed for high-precision applications in CNC machines, robotics, and industrial automation. Available in multiple sizes, these blocks provide smooth motion, excellent load-bearing capacity, and durability. They are compatible with 15mm, 20mm, 25mm, 30mm, and larger guide rails, making them versatile for a wide range of setups.
Available Models:

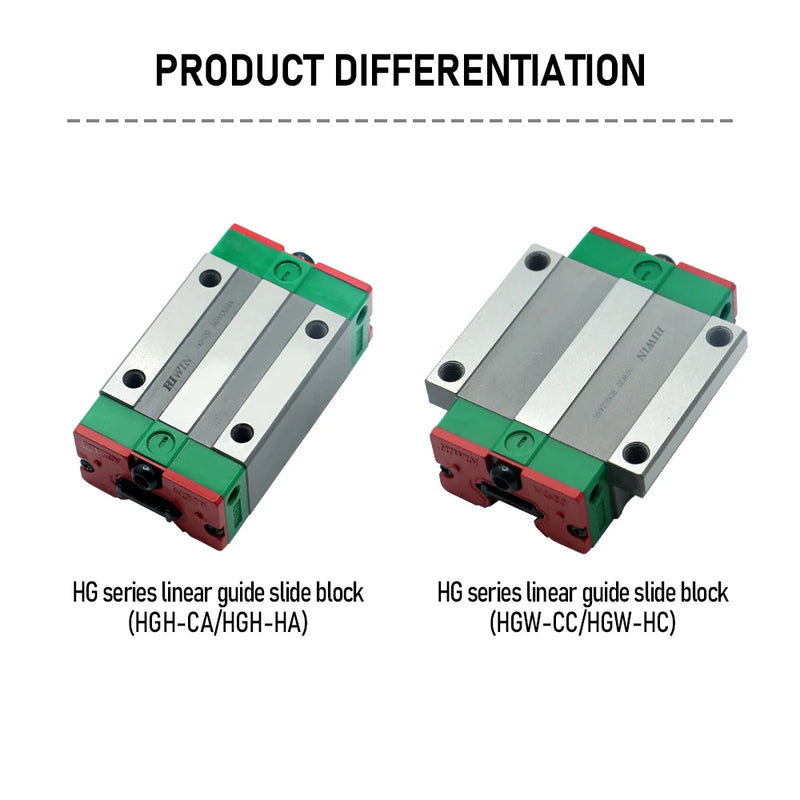

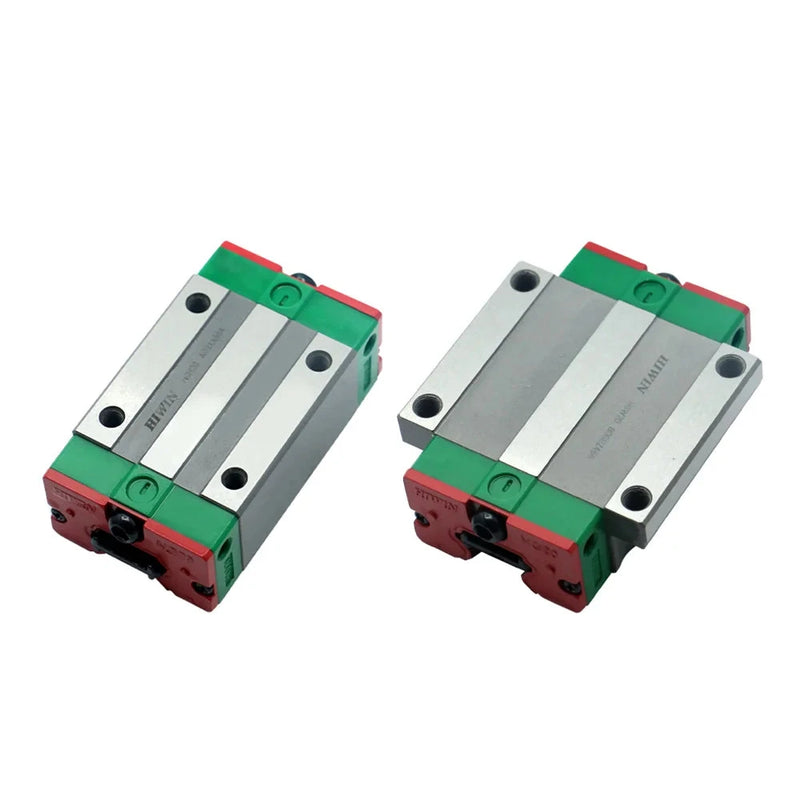

- HGH15CAZAC, HGH20CAZAC, HGH25CAZAC, HGH30CAZAC (Square Type)
- HGW15CCZAC, HGW20CCZAC, HGW25CCZAC, HGW30CCZAC (Flange Type)
Key Features:
- Material: High-strength steel for long-lasting durability.
- Precision Design: Ideal for high-speed, low-noise motion systems.

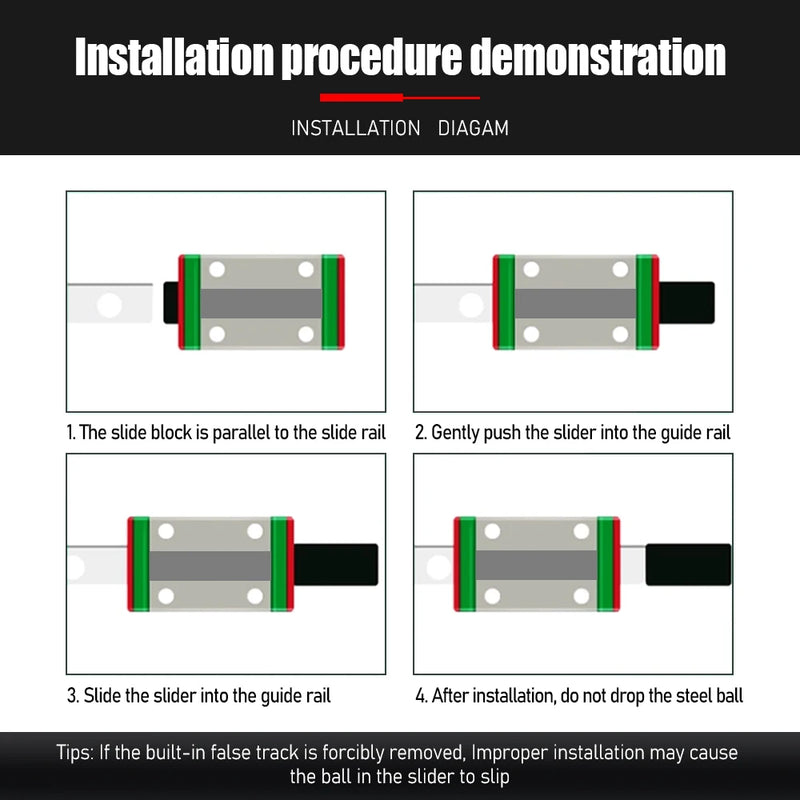

- Mounting Options: Compatible with standard fastening screws for easy installation.
- Applications: Perfect for CNC routers, linear motion systems, and robotics.
Technical Specifications:
| Model | H (mm) | W (mm) | L (mm) | C (mm) | Dynamic Load (C, kN) | Static Load (C₀, kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HGH15CAZAC | 28 | 34 | 61.4 | 26 | 11.38 | 25.31 | 1.45 |
| HGH20CAZAC | 30 | 44 | 77.5 | 36 | 17.35 | 37.84 | 2.21 |
| HGH25CAZAC | 40 | 48 | 84 | 35 | 26.48 | 56.19 | 3.21 |

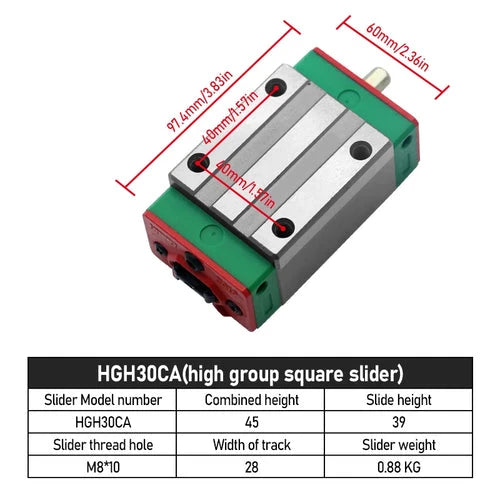

| HGH30CAZAC | 45 | 60 | 97.4 | 40 | 38.74 | 83.06 | 4.47 |
| HGW15CCZAC | 28 | 47 | 61.4 | 30 | 11.38 | 25.31 | 1.45 |
| HGW20CCZAC | 30 | 63 | 77.5 | 40 | 17.35 | 37.84 | 2.21 |

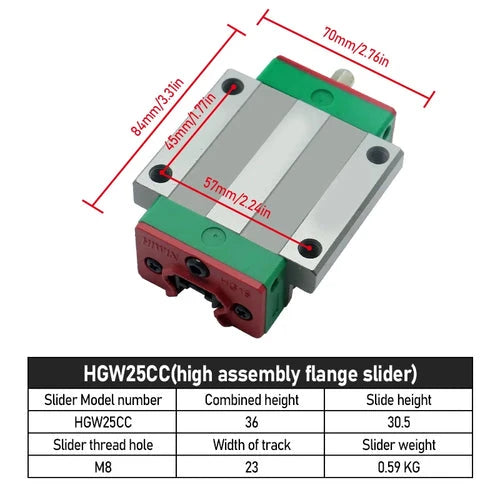

| HGW25CCZAC | 36 | 70 | 84 | 45 | 26.48 | 56.19 | 3.21 |
| HGW30CCZAC | 45 | 90 | 97.4 | 52 | 38.74 | 83.06 | 4.47 |
Applications:
- CNC machining centers
- Industrial automation
- Robotics
- DIY linear motion systems
Keywords: Linear Guide Carriage Blocks, HGH25CAZAC, HGW25CCZAC, High-Precision Carriage, CNC Motion Block, Linear Rail Compatible Blocks
