4 Axis CNC Router Kit NEMA 23 3.0N.m DM556S 350W
Cloudray 4-axis CNC router kit is a complete motion control solution designed for CNC routers, engraving machines, milling systems, and industrial automation projects. The kit includes four high-torque NEMA 23 hybrid stepper motors, DM556S digital drivers, and a 350W 24V power supply for stable and reliable operation.
Each NEMA 23 motor delivers strong 3.0N.m holding torque and 5.0A per phase, making this kit suitable for heavy-duty CNC applications requiring precise positioning and consistent torque output. The 1.8° ±5% step angle ensures accurate and repeatable motion control.
The included DM556S microstep drivers support smooth motion performance and stable open loop control, making this 4-axis system ideal for professional CNC setups.
Key Features
• Complete 4-axis CNC motion control kit
• 3.0N.m high-torque NEMA 23 stepper motors
• 5.0A per phase for demanding applications
• DM556S digital microstep drivers included
• 350W 24V power supply
• Accurate 1.8° ±5% step angle
• Stable and reliable open loop system
• CE and ROHS certified
Technical Specifications

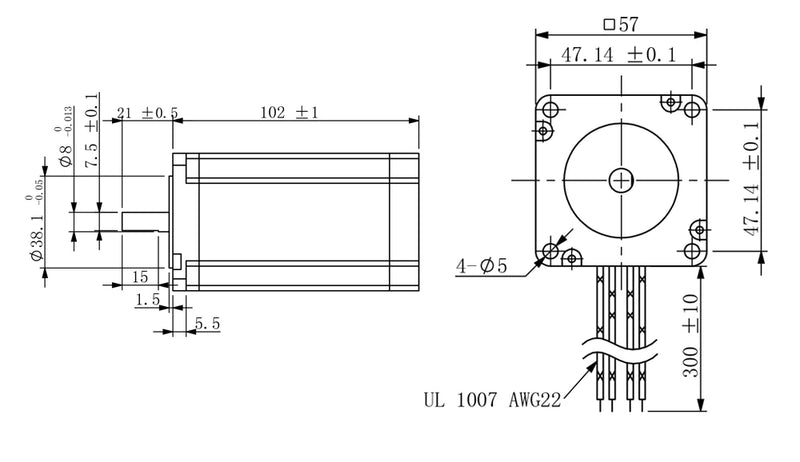

Stepper Motor – 23CS30C-500
| Parameter | Specification |
|---|---|
| Holding Torque | 3.0N.m |
| Current / Phase | 5.0A |
| Phase | 2 |
| Step Angle | 1.8° ±5% |
| Type | Hybrid |
| Certification | CE, ROHS |
| High-concern Chemicals | None |

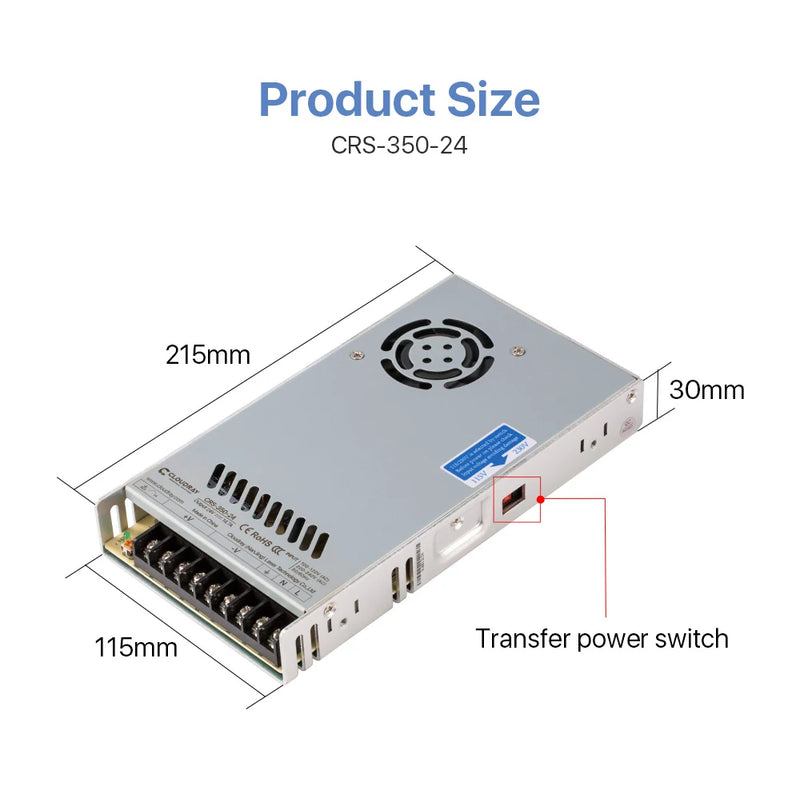

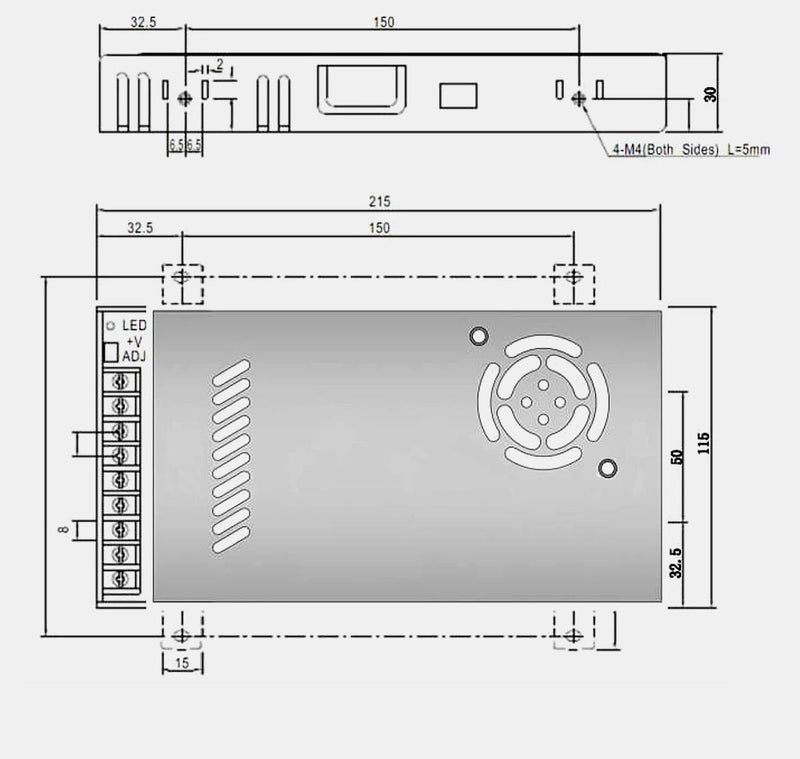

Power Supply
| Parameter | Specification |
|---|---|
| Output Power | 350W |
| Output Voltage | 24V |
| Type | DC |

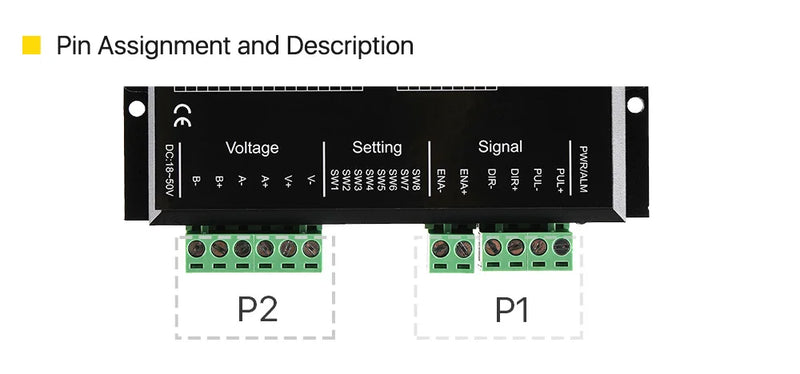

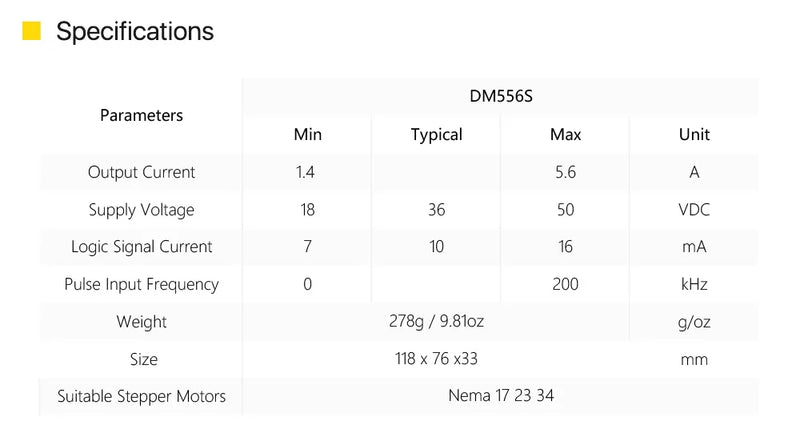

Stepper Driver
| Parameter | Specification |
|---|---|
| Model | DM556S |
| Power Supply | DC |
| Control Type | Open Loop |
Benefits
• Complete ready-to-install CNC kit
• Strong torque for multi-axis router systems
• Precise and repeatable positioning
• Smooth motion with reduced vibration
• Reliable power delivery with 350W supply
• Suitable for professional CNC and milling machines
