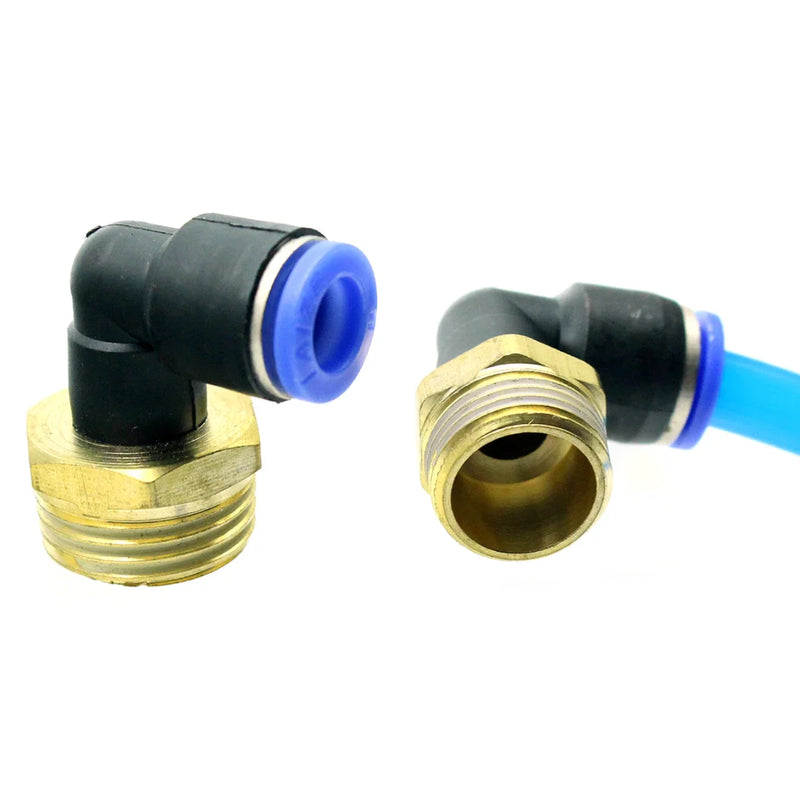

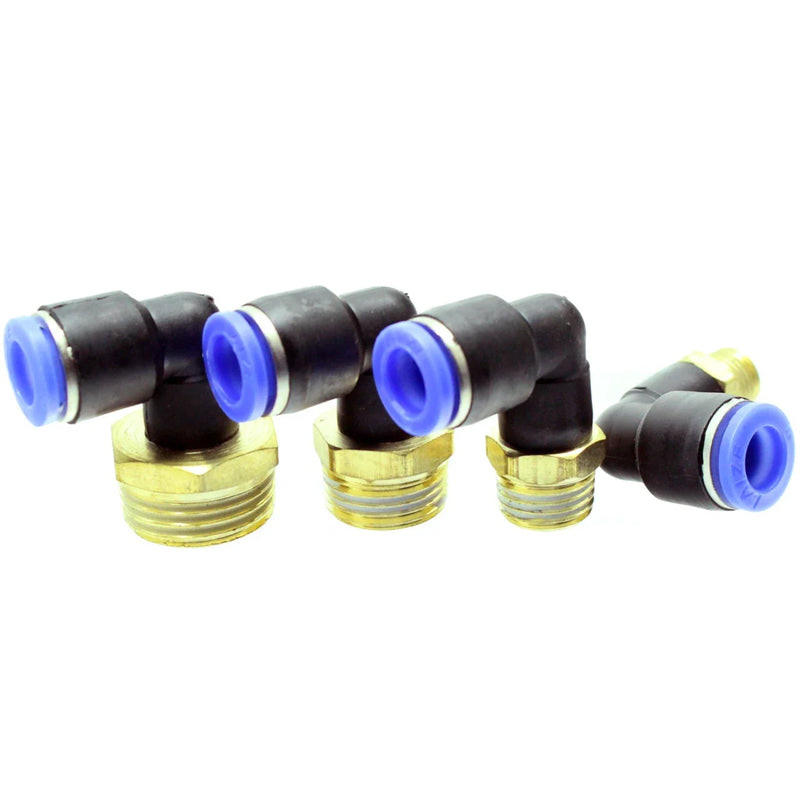

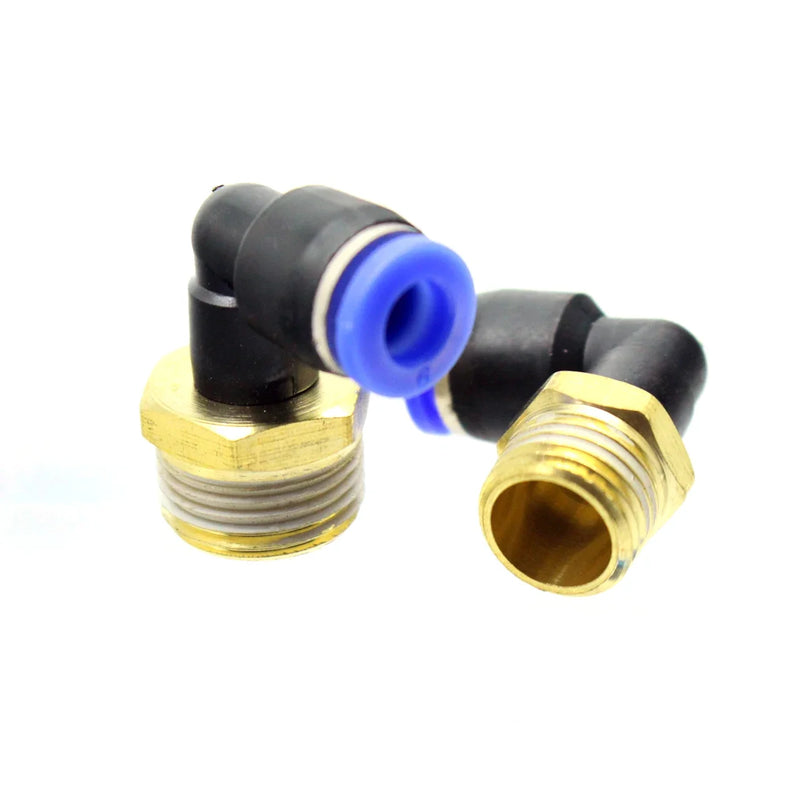

PL 90° Pneumatic Elbow Push-In Fitting – 50PCS (M5 / 1/8" / 1/4" / 3/8" / 1/2") OD 4–12mm
PL Series 90° Pneumatic Elbow Push-In Fittings provide fast, secure and leak-proof connections for compressed air and vacuum systems. Each pack contains 50 pieces of one selected variant (choose thread size and tube OD).
The quick push-in design allows instant installation without tools, while the 90-degree elbow construction is ideal for compact pneumatic layouts and tight installation spaces.
Manufactured from durable engineering plastic with precision metal male thread, these fittings ensure reliable sealing and stable operation up to 1.0 MPa working pressure.
Perfect for industrial automation, CNC machines, air compressors, pneumatic cylinders, robotics and vacuum systems.
Key Features & Benefits
Choose Your Variant
Select required tube OD and male thread size (not mixed pack).
Select required tube OD and male thread size (not mixed pack).
Tool-Free Installation
Quick push-in system for fast and secure tube connection.
Quick push-in system for fast and secure tube connection.
90° Space-Saving Design
Optimized for tight mounting areas and clean hose routing.
Optimized for tight mounting areas and clean hose routing.
Leak-Proof Performance
Reliable sealing for air and vacuum applications.
Reliable sealing for air and vacuum applications.
Industrial Pressure Rating
Normal operating pressure 0–1.0 MPa.
Normal operating pressure 0–1.0 MPa.
Wide Compatibility
Suitable for PU hose and nylon pipe systems.
Suitable for PU hose and nylon pipe systems.

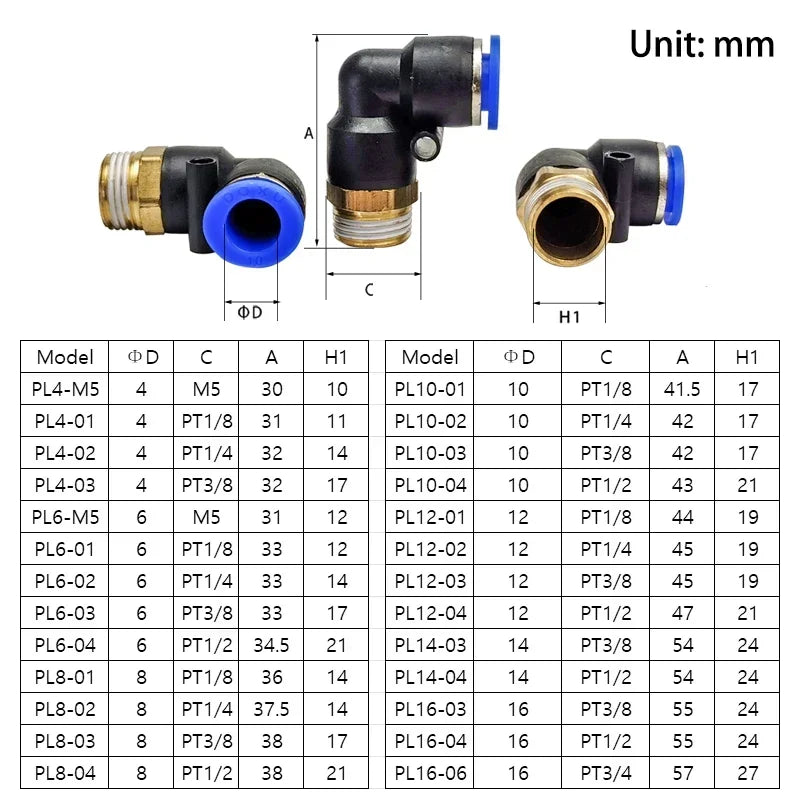

Technical Specifications
| Specification | Details |
|---|---|
| Series | PL Pneumatic Elbow Fitting |
| Type | 90° Push-In Male Thread Connector |
| Available Tube OD | 4mm / 6mm / 8mm / 10mm / 12mm |
| Available Thread Sizes | M5 / PT1/8 / PT1/4 / PT3/8 / PT1/2 (Male) |
| Working Medium | Air / Vacuum |
| Normal Operating Pressure | 0 – 1.0 MPa |
| Applicable Tube | PU Hose / Nylon Pipe |
| Certification | CE |

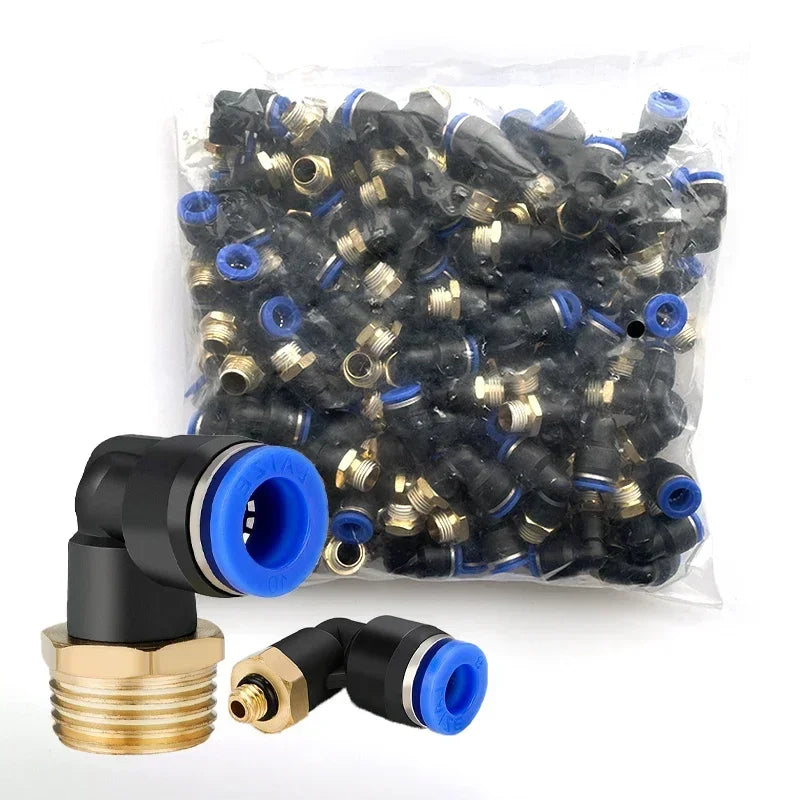

| Package | 50 PCS (Single Selected Variant) |
