PG Series Pneumatic Reducing Straight Connector – Hose to Hose (4–16mm)
The PG Series Pneumatic Connector is a straight reducing push-in fitting designed to connect two different hose diameters in a direct line configuration. It provides a secure and leak-resistant connection for pneumatic systems.
Manufactured from durable engineering plastic with brass internal components and NBR sealing, this connector ensures reliable performance under pressures up to 1.32 MPa.
Compatible with PU, Nylon and Polyurethane tubing in compressed air and vacuum applications.
Key Features
Straight Through Design
Direct inline hose-to-hose connection.
Direct inline hose-to-hose connection.
Reducing Function
Connects two different tube diameters.
Connects two different tube diameters.
Push-In Quick Installation
Tool-free tube insertion system.
Tool-free tube insertion system.
High Pressure Resistance
Max operating pressure 1.32 MPa.
Max operating pressure 1.32 MPa.
Vacuum Compatible
Suitable for air and vacuum systems.
Suitable for air and vacuum systems.
Industrial Grade Material
Plastic body + brass insert + NBR seal.
Plastic body + brass insert + NBR seal.
Applications
- Pneumatic automation systems
- Compressed air distribution lines
- Vacuum systems
- Industrial machinery
- Workshop air piping
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | PG Series |
| Connection Type | Reducing Straight (Hose to Hose) |
| Available Sizes | 4mm / 6mm / 8mm / 10mm / 12mm / 14mm / 16mm |
| Working Medium | Air / Vacuum |
| Normal Operating Pressure | 0 – 1.0 MPa |
| Maximum Operating Pressure | 1.32 MPa |
| Negative Pressure | -750 mmHg (10 Torr) |
| Operating Temperature | 0 – 60 °C |
| Applicable Tube | PU Hose / Nylon Pipe / Polyurethane |
| Material | Plastic + Brass + NBR |
| Color | Blue / Black |
Model Code Explanation

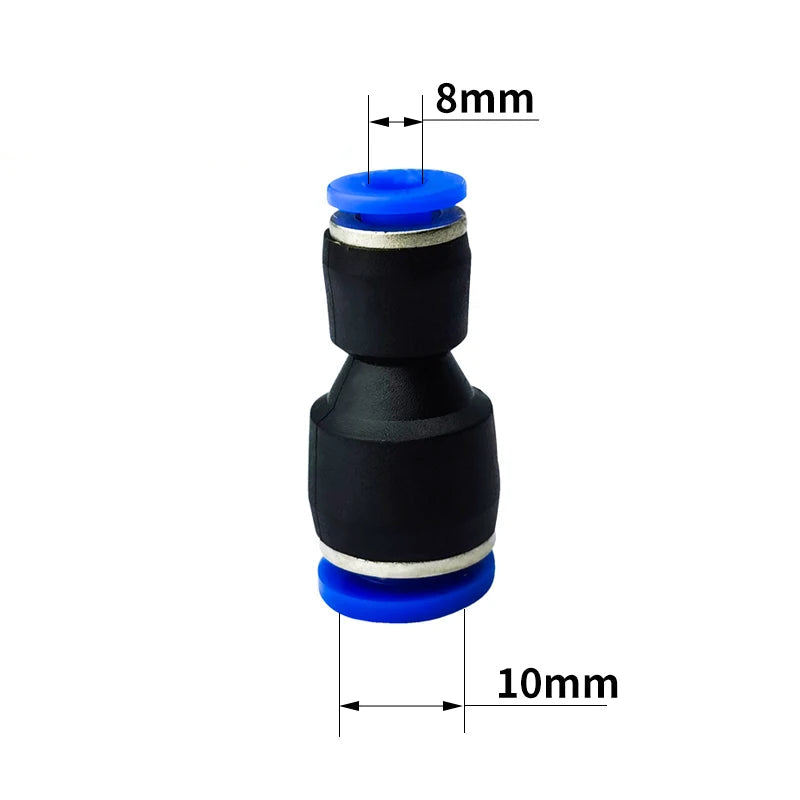

PG8-6 = Straight reducing connector → 8mm hose to 6mm hose
PG10-8 = Straight reducing connector → 10mm hose to 8mm hose

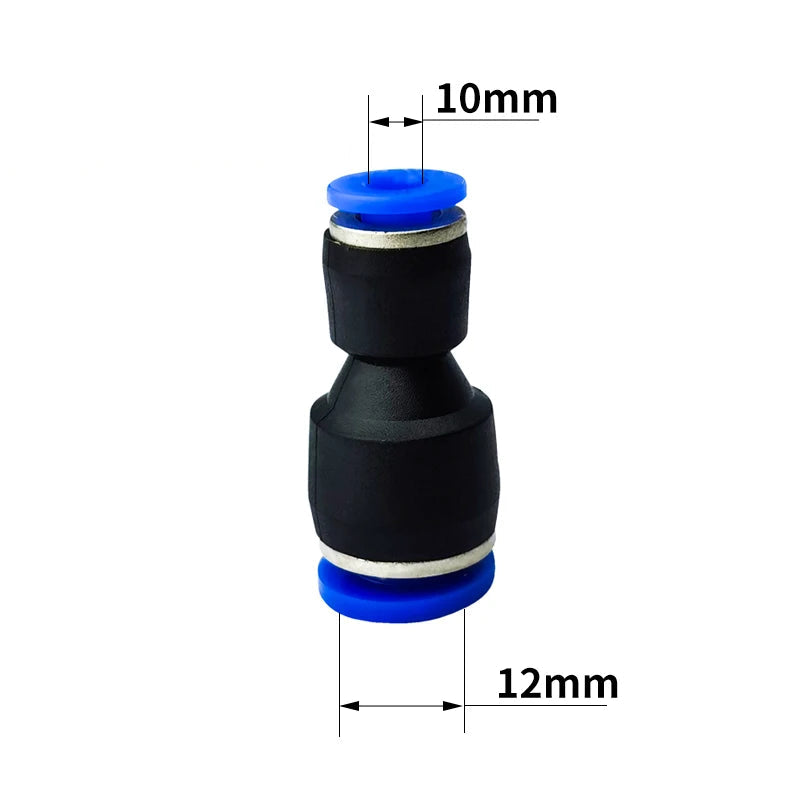

PG12-10 = Straight reducing connector → 12mm hose to 10mm hose
