20 Teeth L Timing Pulley – Aluminium Synchronous Wheel for Belt, AF Type
Enhance your power transmission system with this high-quality L Timing Pulley Synchronous Wheel. Constructed from durable aluminum alloy and featuring galvanized iron flanges, it ensures a robust and reliable performance. Designed with a 9.525mm tooth pitch and 20 teeth, this pulley is versatile for various timing belts and mechanical systems. Available in multiple round and keyway bore sizes, it accommodates a wide range of applications.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Aluminum Alloy (Flange: Galvanized Iron) |
| Surface Treatment | Untreated |
| Type | AF Type |
| Teeth Pitch | 9.525mm (0.375 inches) |
| Teeth Number | 20 |
| Round Bore Sizes | 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm |

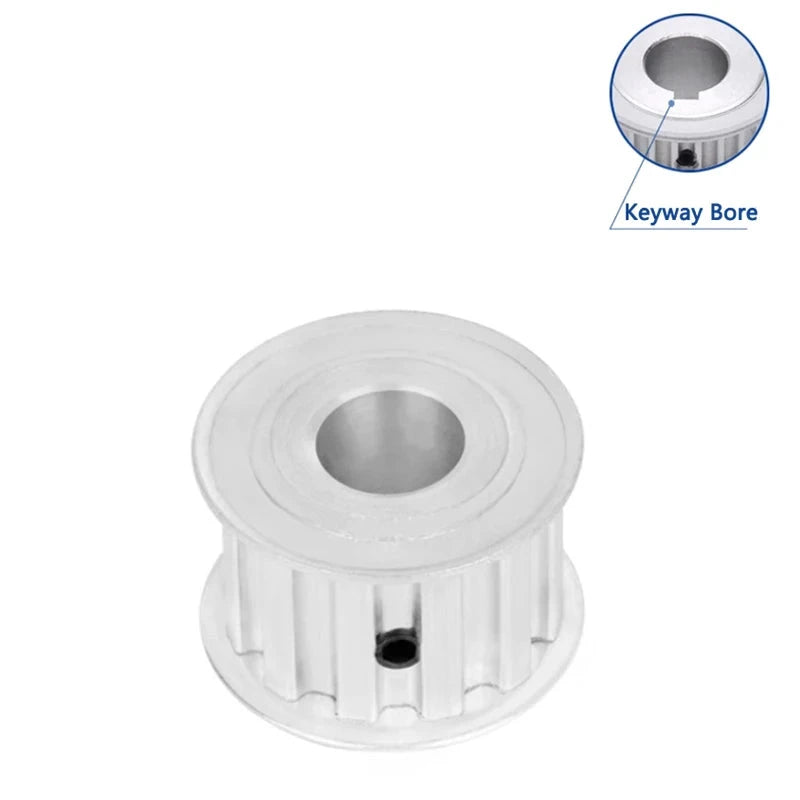

| Keyway Bore Sizes | 8mm (keyway 3mm), 10mm (keyway 3mm, 4mm), 12mm (keyway 4mm), 14mm-28mm (various keyway sizes) |

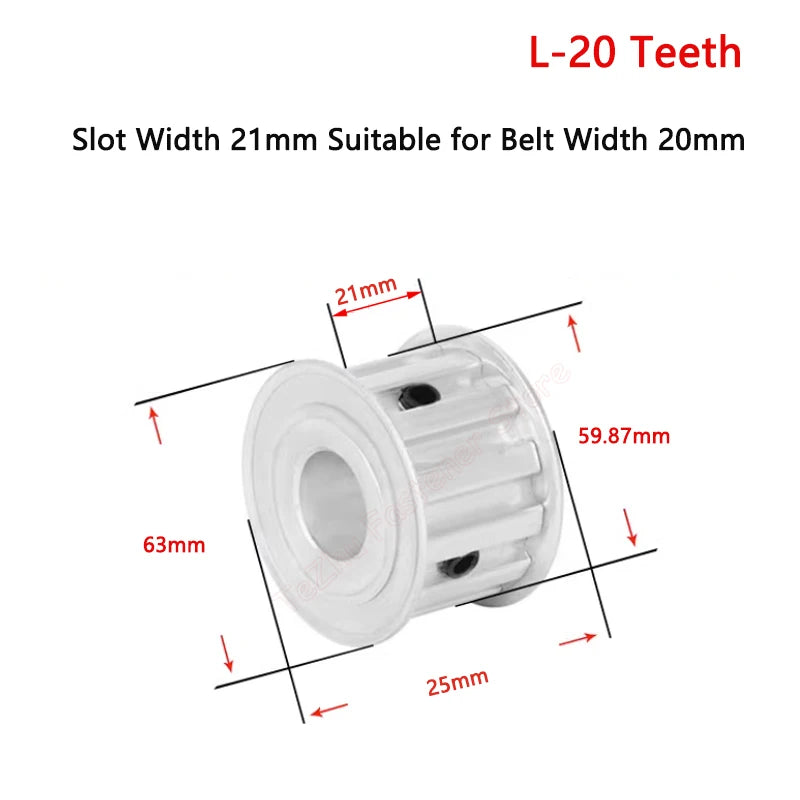

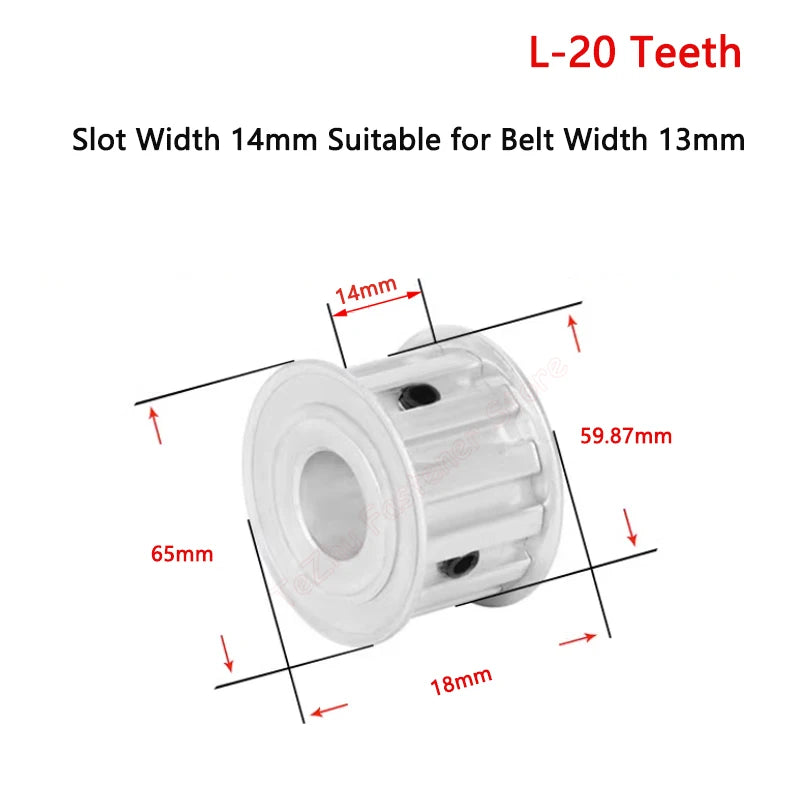

| Slot Width | 14mm / 21mm / 27mm (suitable for belt widths: 13mm / 20mm / 25mm) |
| Bore Tolerance | 0.01-0.02mm (0.0004-0.0008 inches) |
| Features | - Versatile fit for various setups - High-quality aluminum alloy with galvanized iron flange - Smooth transmission with precise tooth pitch |
| Application | Suitable for industrial machinery, automation equipment, and other mechanical systems |
| Note | - Flange size may vary by 2-3mm due to production batch variations - Fixed machine screws included; key for keyway sold separately |
| Packaging | Pack Quantity: 1 piece Packaging: Plastic bag / Carton box |
