20 Teeth HTD5M Timing Pulley - 5M Synchronous Wheel with D Hole
1pc 20 Teeth HTD5M Timing Pulley - 5M Synchronous Wheel with D Hole
Description:

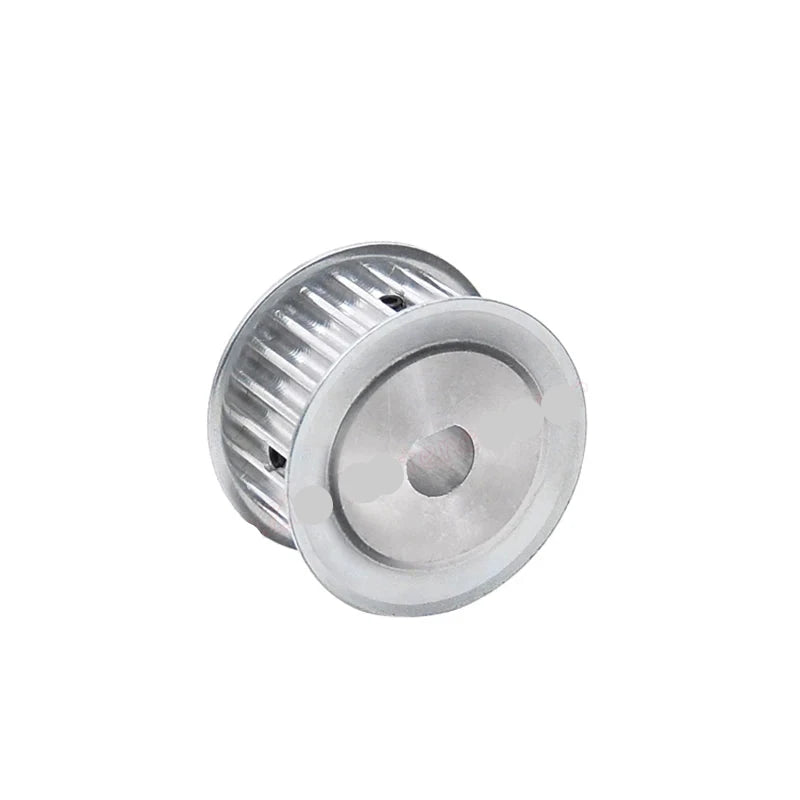

Optimize your power transmission systems with the HTD5M Timing Pulley Synchronous Wheel, designed with a D-shaped hole for superior torque resistance. Constructed from durable aluminum alloy with a galvanized iron flange, this AF Type pulley ensures efficient power transfer with its 20 teeth and 5mm pitch. The D-hole design enhances resistance to slipping, making it an ideal choice for various mechanical applications where secure and precise power transmission is critical.
Key Specifications:
| Specification | Details |
|---|---|
| Material | Aluminum Alloy with a galvanized iron flange |
| Surface Treatment | Untreated to maintain the natural properties of aluminum |
| Teeth Pitch | 5 mm (0.2 inches) |
| Teeth Number | 20 |

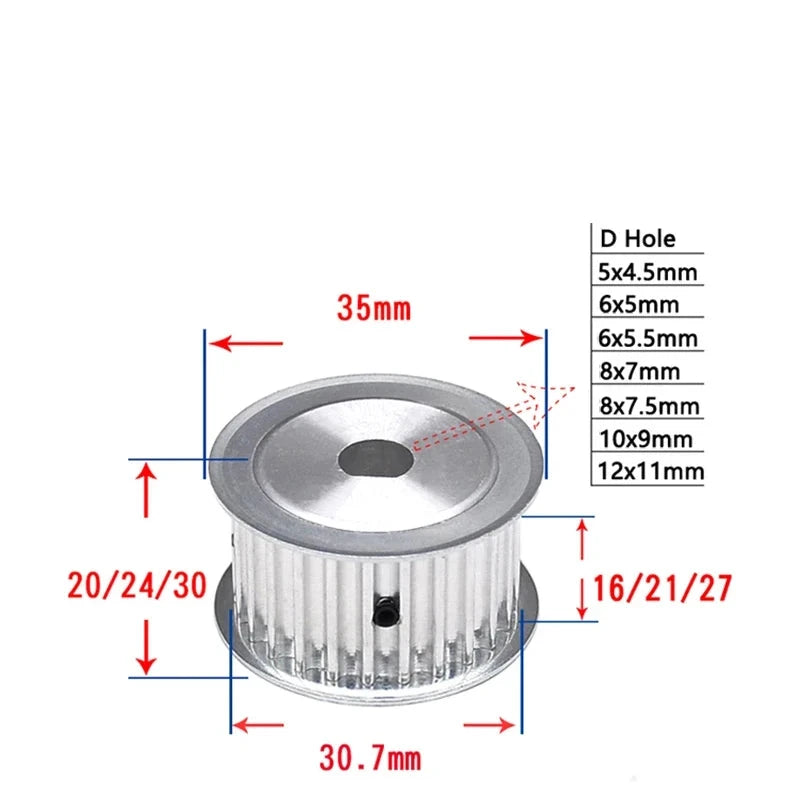

| D Hole Sizes | 5x4.5 mm, 6x5 mm, 6x5.5 mm, 8x7 mm, 8x7.5 mm, 10x9 mm, 12x11 mm |

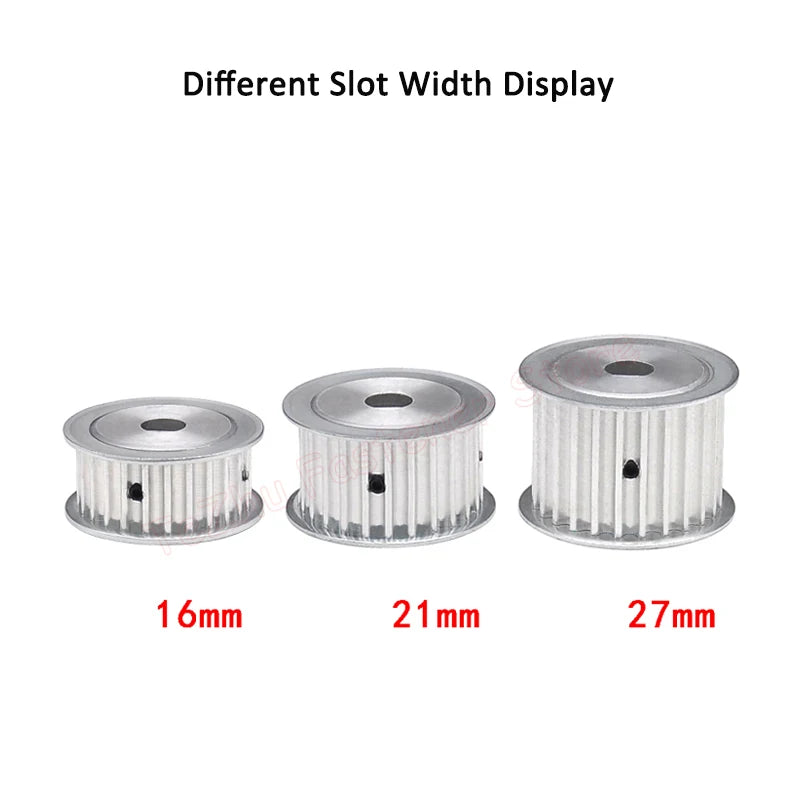

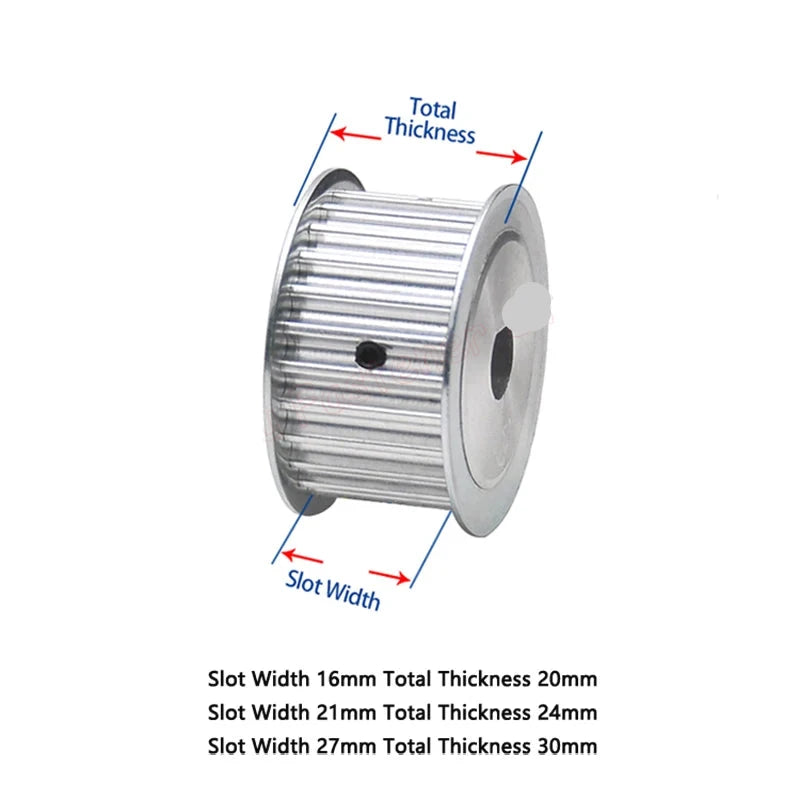

| Slot Width | 16 mm, 21 mm, 27 mm (suitable for timing belts with widths of 15 mm, 20 mm, and 25 mm) |
| Bore Tolerance | 0-0.03 mm for secure fitting |
Features:
- D-Type Inner Hole: Offers greater torque resistance, reducing the risk of slipping compared to traditional screw-locking methods.
Target Applications:
Ideal for industrial machinery, automation systems, and robotics requiring enhanced torque resistance and reliable power transmission.
Notes:
- Accessories: Fixed machine screws are included; the key for the keyway must be purchased separately.
- Surface: The pulley surface is untreated, so slight oxidation may occur.
- Variations: Overall dimensions (total thickness, screw hole, flange diameter) may vary between batches.
Packaging:
- Details: Each pulley is securely packaged in a plastic bag and then placed in a carton box for safe delivery.
- Quantity: Customizable according to your needs.
