18 Teeth L Timing Pulley - 18T Aluminium Synchronous Wheel for Belt

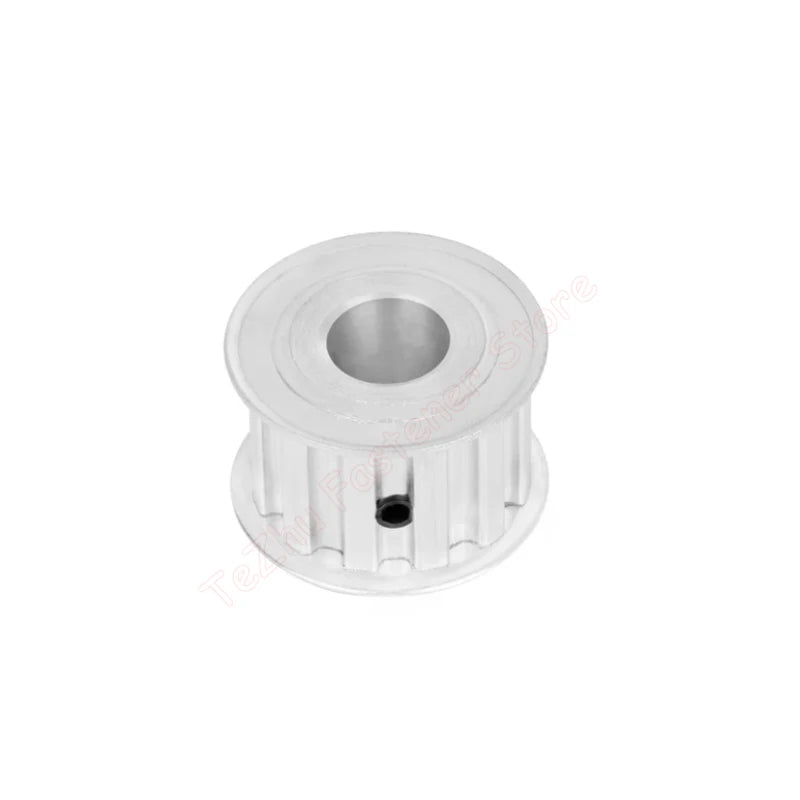

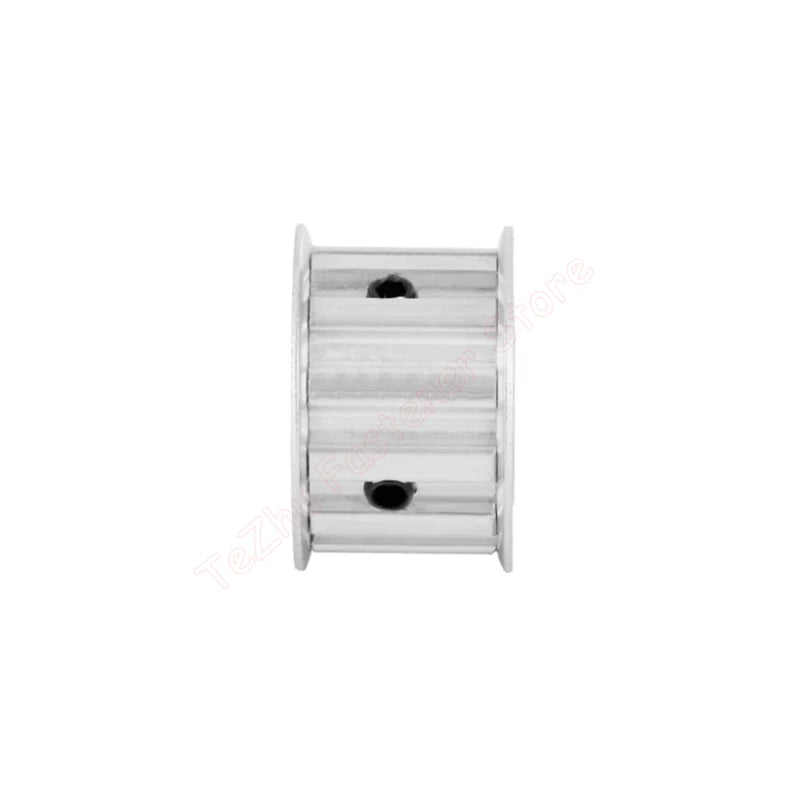

Optimize your transmission systems with the 18 Teeth L Timing Pulley Synchronous Wheel, crafted for precision and durability. Made from lightweight aluminum alloy with a galvanized iron flange, this AF Type pulley features a 9.525mm teeth pitch, ensuring smooth and efficient power transfer in various mechanical setups. Its untreated surface retains the natural strength of the materials, while a broad selection of round and keyway bore sizes makes it versatile for different applications.
Key Specifications
| Specification | Details |
|---|---|
| Material | High-strength Aluminum Alloy with a galvanized iron flange for added durability |
| Surface Treatment | Untreated to retain the natural properties of the materials |
| Teeth Pitch | 9.525 mm (0.375 inches) for precise and smooth power transmission |
| Teeth Number | 18 teeth, ideal for various mechanical and industrial applications |

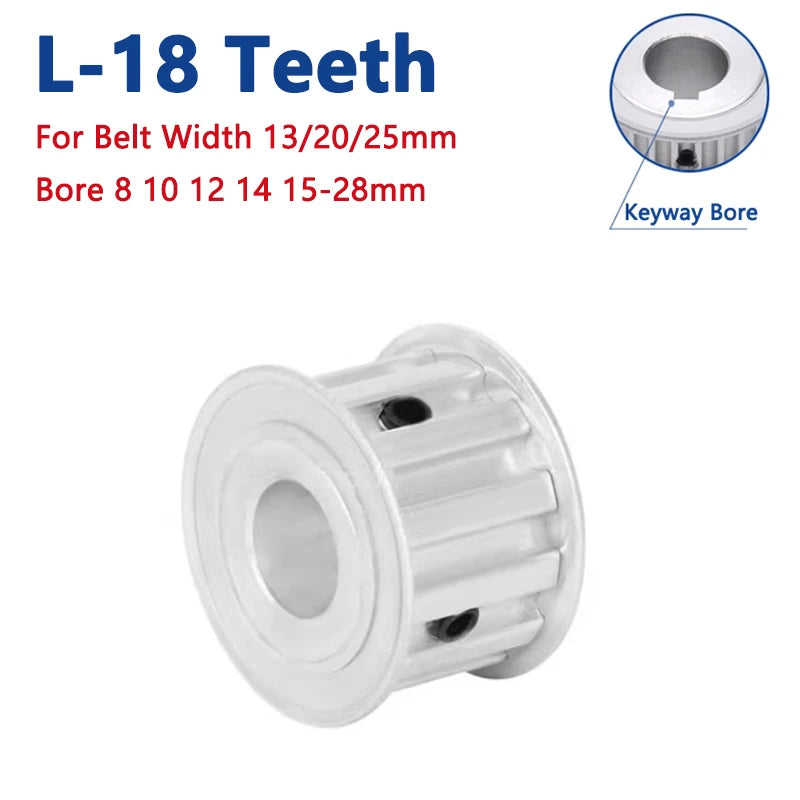

| Round Bore Sizes | Available in sizes from 8 mm to 28 mm to fit multiple shaft dimensions |
| Keyway Bore | Wide range of keyway options from 3 mm to 8 mm for secure and accurate mounting |

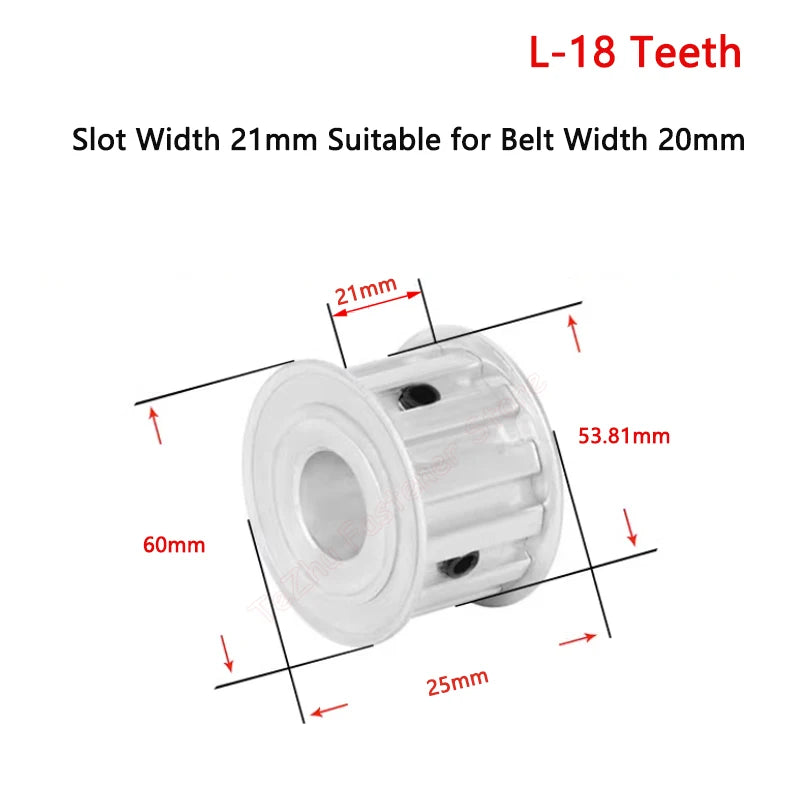

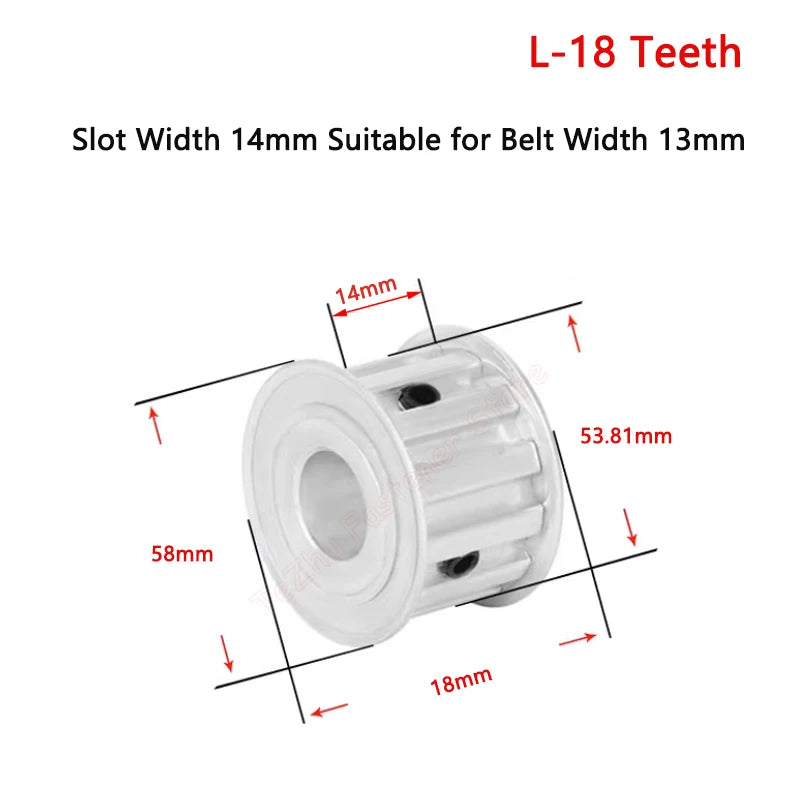

| Slot Width | Options of 14 mm, 21 mm, and 27 mm, suitable for timing belts with widths of 13 mm, 20 mm, and 25 mm |
| Bore Tolerance | Engineered with a tolerance of 0.01-0.02 mm (0.0004-0.0008 inches) for precise fitting |
Target Applications
- Suitable for various industrial machinery, automation systems, and robotics requiring precise timing and power transmission.
Note:
- The flange size may vary by 2-3 mm (0.08-0.12 inches) due to different production batches. Ensure adequate installation space to accommodate these variations.
Packaging
- Details: Each pulley is securely packaged in a plastic bag and carton box for protection during transit.
- Quantity: Customizable according to your specific needs.
Keywords
Aluminum timing pulley, industrial synchronous wheel, 18 teeth pulley, durable transmission components, precision mechanical parts, AF Type pulley.
