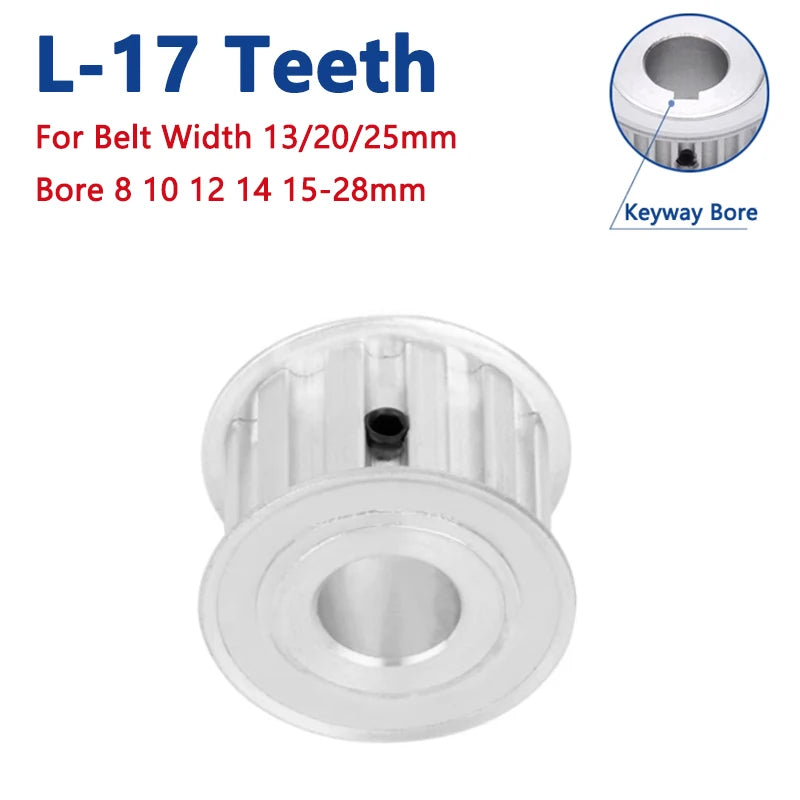

17 Teeth L Timing Pulley 17T Aluminium Synchronous Wheel for Belt
Product Name: L Timing Pulley Synchronous Wheel
Product Details:
- Material: Main body made from high-quality Aluminum Alloy with a galvanized iron flange for increased durability and performance.
- Surface Treatment: Untreated for optimal material integrity and performance.
- Type: AF Type Synchronous Wheel.
-
Teeth Specifications:
- Pitch: 9.525mm.
- Number: 17 Teeth.
-
Bore Options:
- Round Bore Sizes: 8, 10, 12, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25, 28 mm.
-
Keyway Bore Sizes:
- 8mm (keyway 3mm), 10mm (keyway 3mm and 4mm), 12mm (keyway 4mm), 14mm (keyway 5mm), 15mm (keyway 5mm), 16mm (keyway 5mm), 17mm (keyway 5mm), 18mm (keyway 6mm), 19mm (keyway 6mm), 20mm (keyway 6mm), 22mm (keyway 6mm), 24mm (keyway 8mm), 25mm (keyway 8mm), 28mm (keyway 8mm).

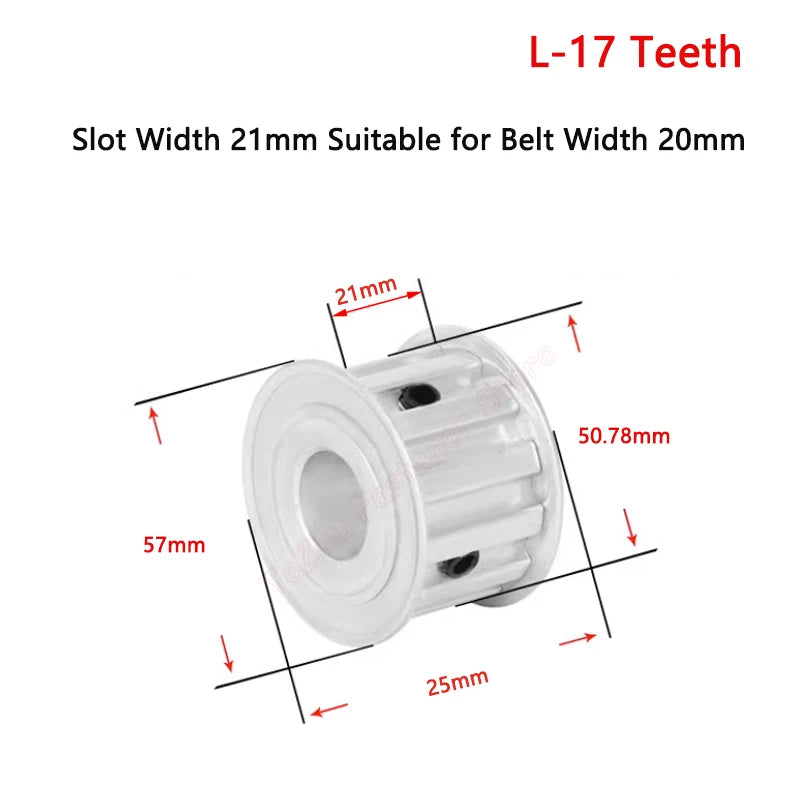

- Slot Width Compatibility: 14/21/27 mm suitable for timing belt widths of 13/20/25 mm.
- Bore Tolerance: Precision engineered with a tolerance of 0.01-0.02 mm for optimal fit and function.
Applications: Ideal for use as transmission components in various machinery and equipment setups.
Packaging Details:
- Packing Method: Packaged securely in a plastic bag and carton box.
- Quantity: Supplied according to customer selection.
Note: Please allow for a 2-3 mm variation in the size of the timing wheel flange due to different manufacturing batches. This variance will not affect the installation or performance of the equipment.
