10PCS PH Pneumatic 90° Elbow Fitting – Male Thread Push-In Connector (4–12mm)

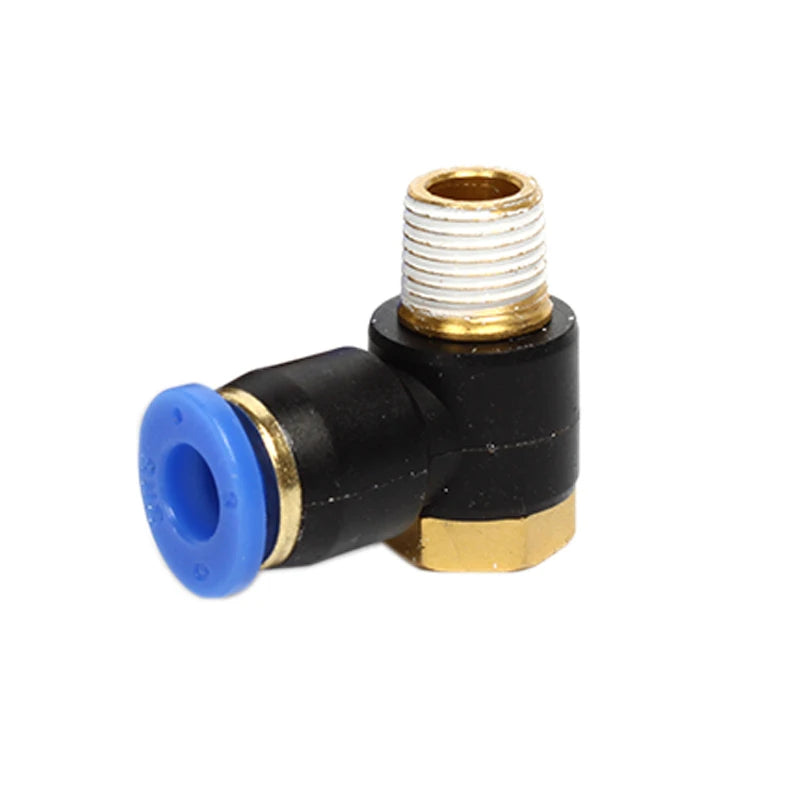

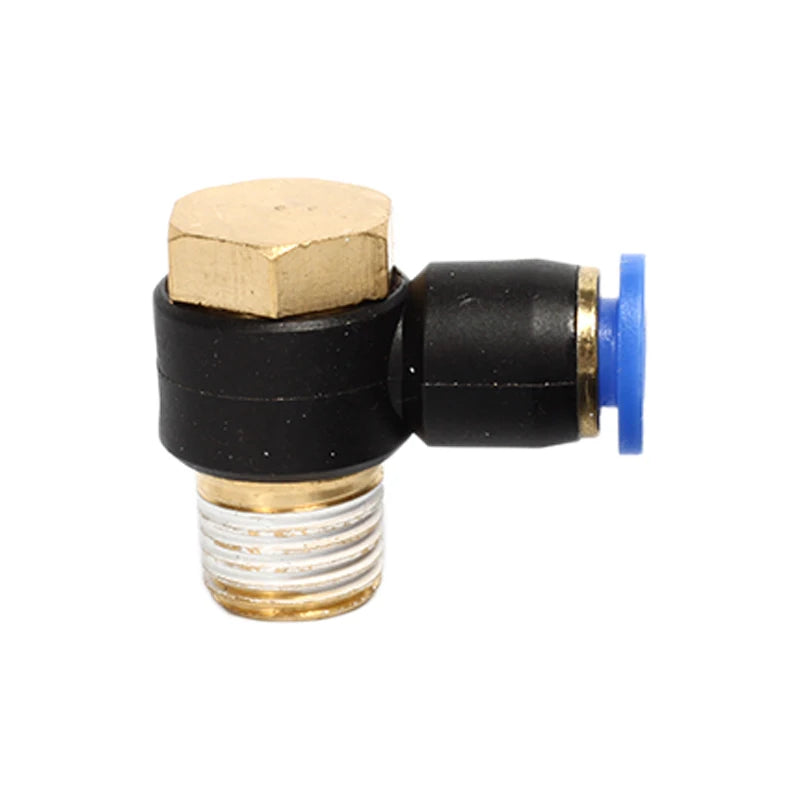

The PH Series Pneumatic Elbow Fitting is a 90-degree right angle push-in connector designed for compact pneumatic installations. The outer hexagon design allows easy tightening and secure installation.
Made from durable plastic body, brass threaded insert and NBR sealing, it ensures reliable performance under pressure up to 1.32 MPa.
Suitable for PU and Nylon tubing in compressed air and vacuum systems.
Key Features
90° Right Angle Design
Ideal for tight spaces and compact layouts.
Ideal for tight spaces and compact layouts.
Male Thread Connection
Secure threaded installation.
Secure threaded installation.
Push-In Quick Connect
Tool-free tube insertion.
Tool-free tube insertion.
High Pressure Resistance
Max operating pressure 1.32 MPa.
Max operating pressure 1.32 MPa.
Vacuum Compatible
Works with air and vacuum systems.
Works with air and vacuum systems.
Industrial Grade Materials
Plastic + Brass + NBR sealing.
Plastic + Brass + NBR sealing.

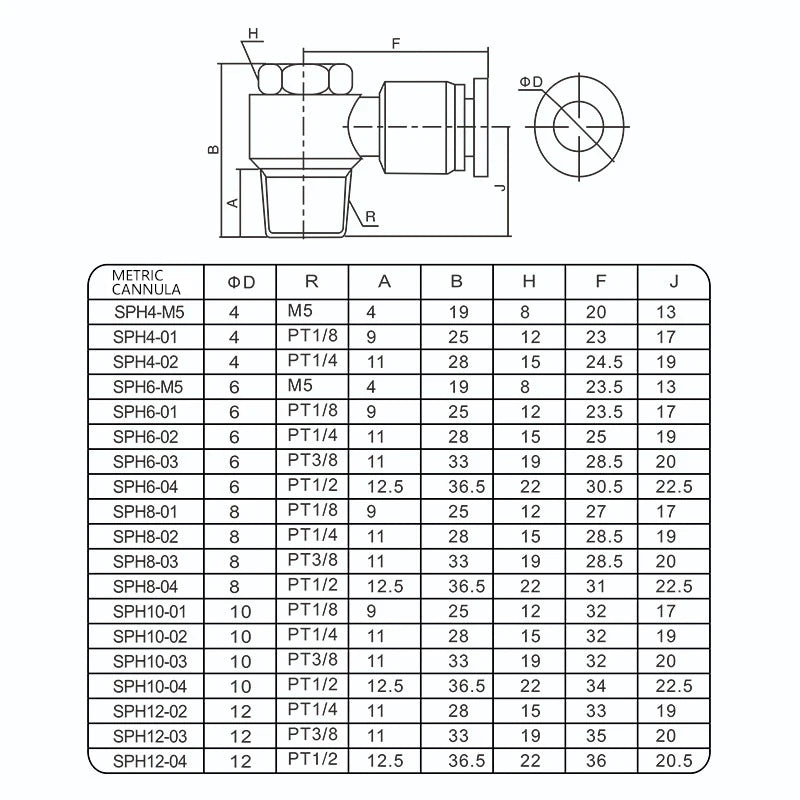

Technical Specifications
| Specification | Details |
|---|---|
| Model | PH Series |
| Connection Type | 90° Elbow – Hose to Male Thread |
| Available Tube Sizes | 4mm / 6mm / 8mm / 10mm / 12mm |
| Working Medium | Air / Vacuum |
| Normal Operating Pressure | 0 – 1.0 MPa |
| Maximum Operating Pressure | 1.32 MPa |
| Operating Temperature | 0 – 60 °C |
| Applicable Tube | PU Hose / Nylon Pipe |
| Material | Plastic + Brass + NBR |
| Package Quantity | 10 PCS |
