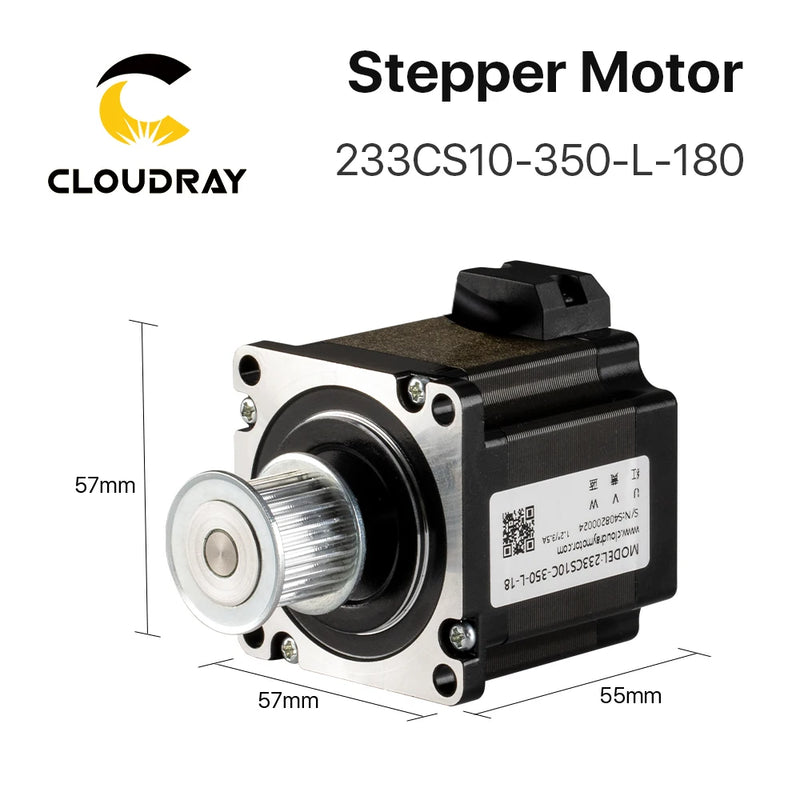

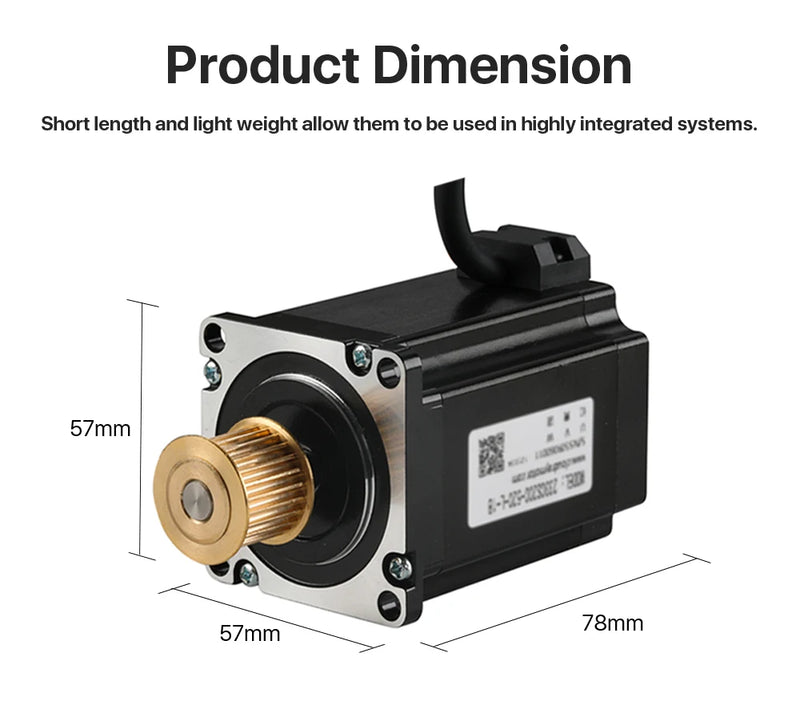

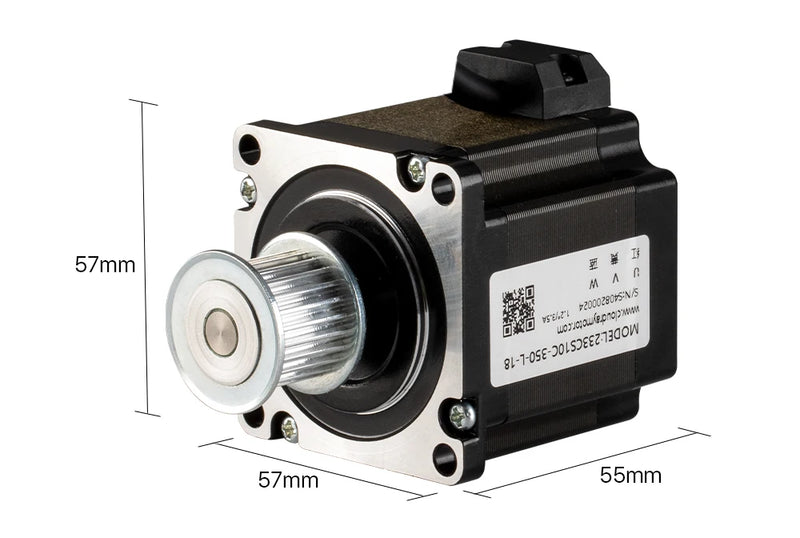

Cloudray NEMA 23 3-Phase 1.0N.m / 2.0N.m Geared Stepper Motor Kit+3DM580S
Cloudray NEMA 23 3-phase stepper motor kit with 3DM580S digital driver is designed for high-performance CNC routers, engraving machines, milling systems, and industrial automation applications. The advanced 3-phase hybrid motor provides smoother motion, lower vibration, and improved torque stability compared to standard 2-phase systems.
Available in two torque versions (1.0N.m and 2.0N.m), this kit delivers reliable positioning accuracy and stable operation under varying load conditions. The included 3DM580S microstep driver features anti-resonance technology, programmable current control, and high-frequency pulse input for precise motion control.
Key Features
• 3-phase hybrid stepper motor
• Available torque: 1.0N.m or 2.0N.m
• 3DM580S digital microstep driver included
• Anti-resonance technology for smooth operation
• Programmable output current (1.0A–8.0A)
• Supply voltage up to 50V DC
• Pulse input frequency up to 800 kHz
• Automatic idle-current reduction
• Supports PUL/DIR and CW/CCW control modes
• CE and ROHS certified
Technical Specifications

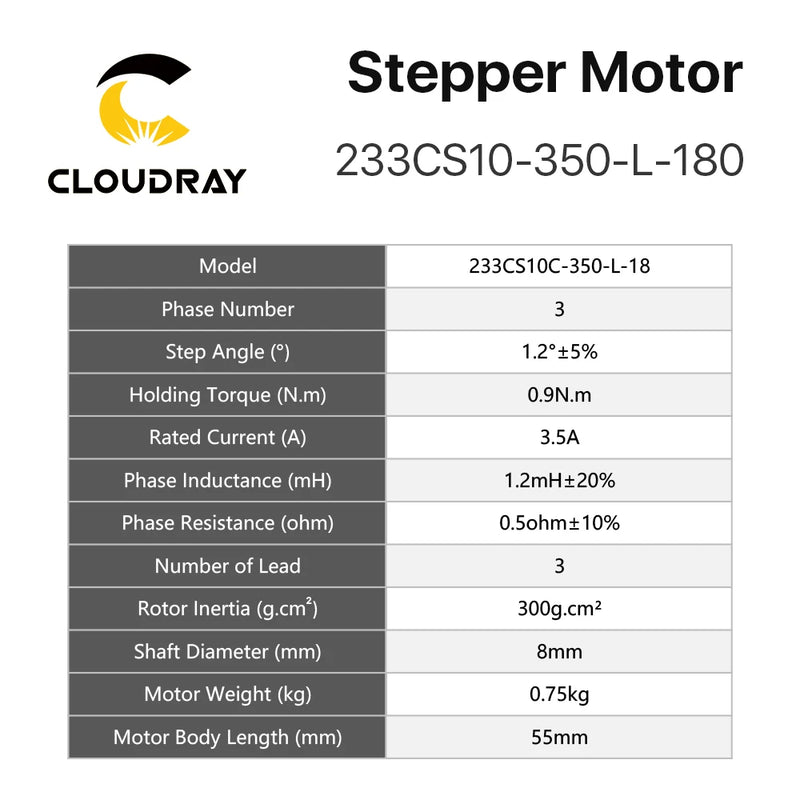

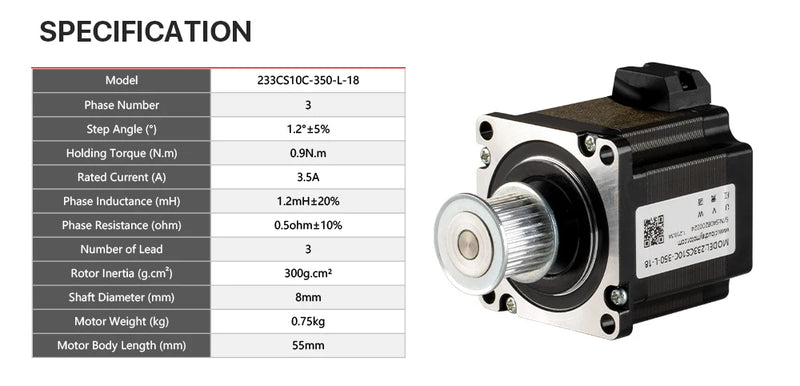

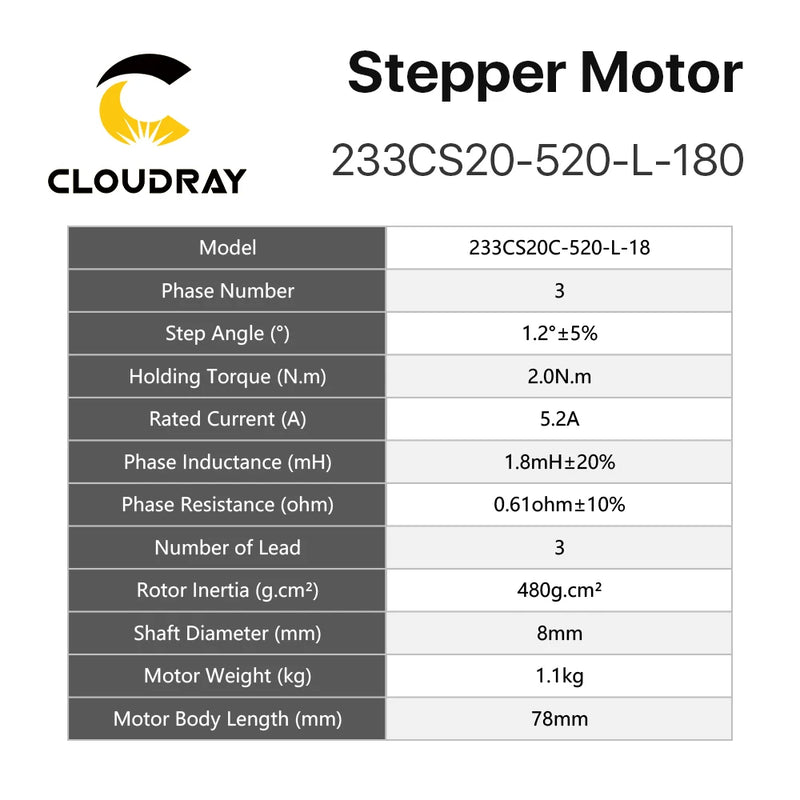

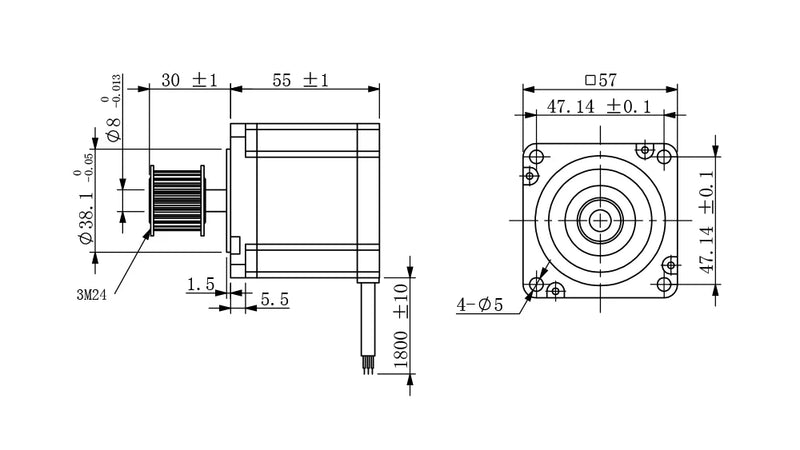

| Parameter | 233CS10-350-18 | 233CS20-520-18 |
|---|---|---|
| Holding Torque | 1.0N.m | 2.0N.m |
| Current / Phase | 3.5A | 5.2A |

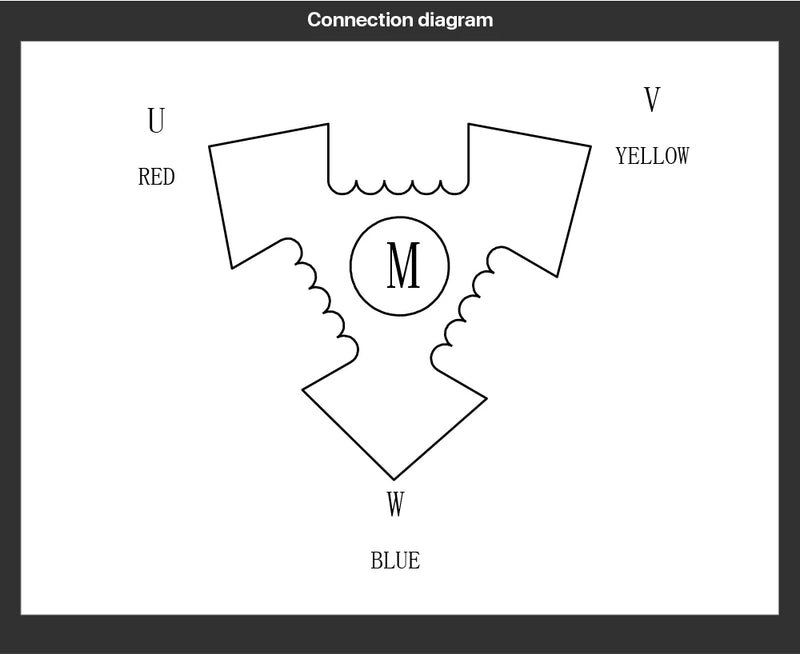

| Phase | 3 | 3 |
| Step Angle | 1.2° | 1.2° |
| Type | Hybrid | Hybrid |
| Motor Cable Length | 180 cm | 180 cm |
| High-concern Chemicals | None | None |

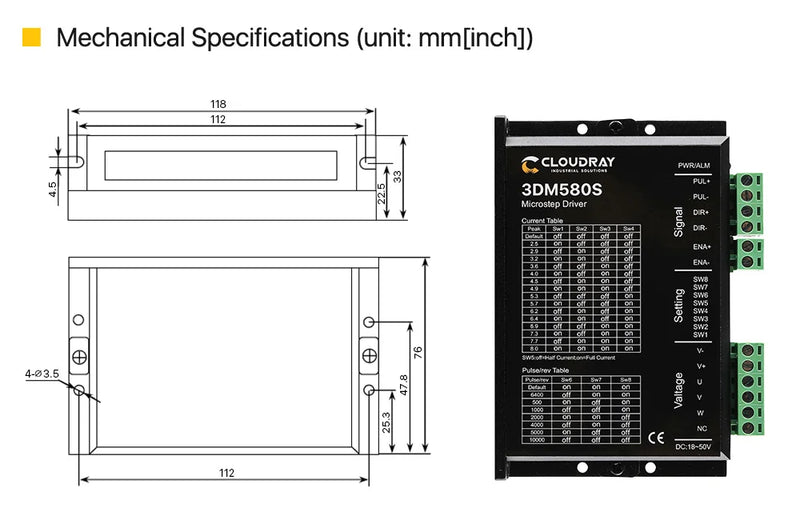

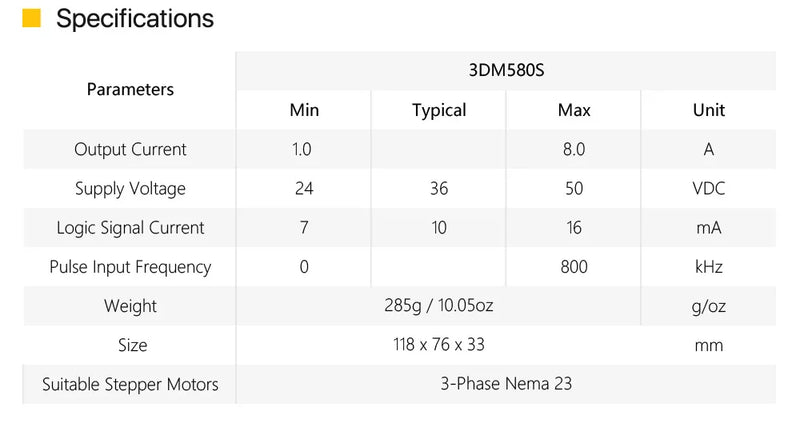

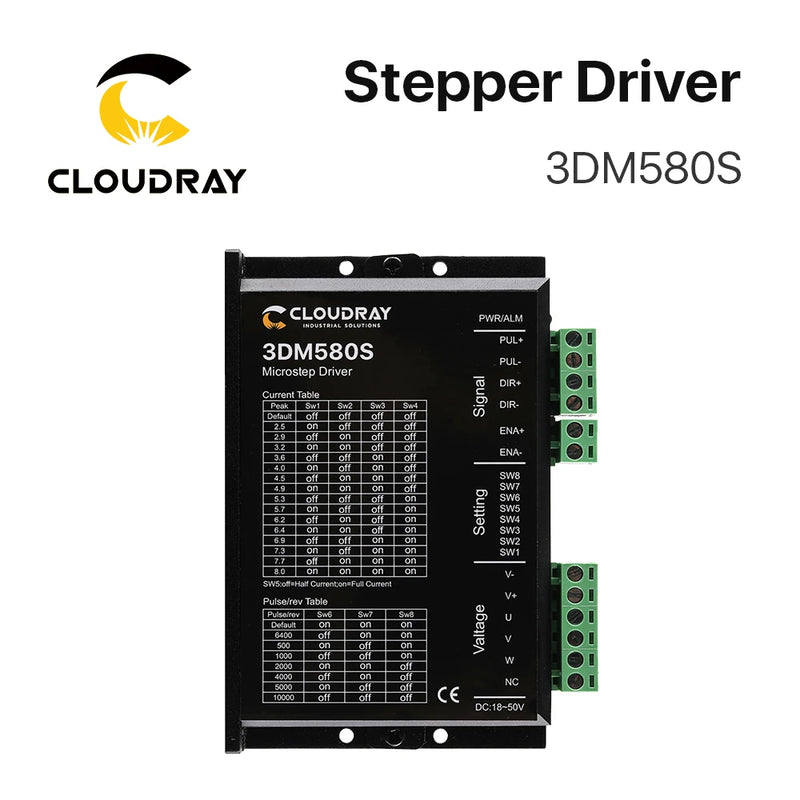

| Parameter | Specification |
|---|---|
| Model | 3DM580S |
| Supply Voltage | Up to 50V DC |
| Output Current | 1.0A – 8.0A (programmable) |
| Pulse Input Frequency | Up to 800 kHz |
| Control Modes | PUL/DIR, CW/CCW |
| Certification | CE, ROHS |
Benefits
• Smoother motion compared to 2-phase motors
• Reduced vibration and lower operating noise
• Higher torque stability in mid-speed range
• Reliable performance for CNC and industrial systems
• Flexible configuration for different machine setups
• Durable solution for long-term precision applications
