GVDA Digital Oscilloscope 50MS/s Sampling Rate 12MHz Analog Bandwidth
Ursprünglicher Preis
€72,66
-
Ursprünglicher Preis
€72,66
Ursprünglicher Preis
€72,66
€72,66
-
€72,66
Aktueller Preis
€72,66

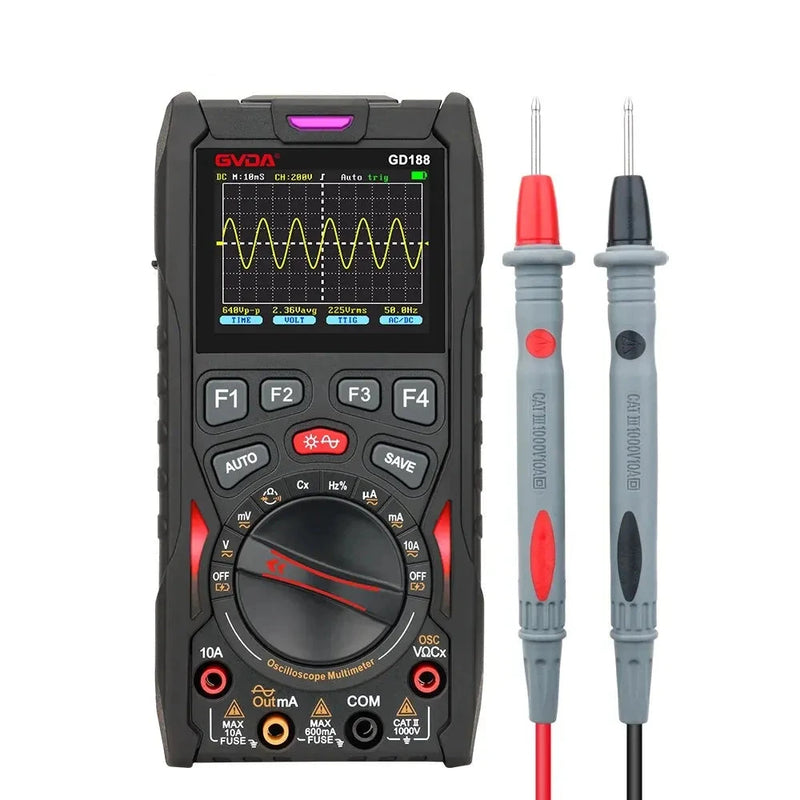

GVDA 3 in 1 Digital Oscilloscope 12MHz Analog Bandwidth 6000 Counts Smart Multimeter Rechargeable Multimeter Auto Current Voltage Tester Signal Source
Product Features
- 50Msps High-Speed Sampling Chip: 12MHz analog bandwidth, 6000 counts digital multimeter.

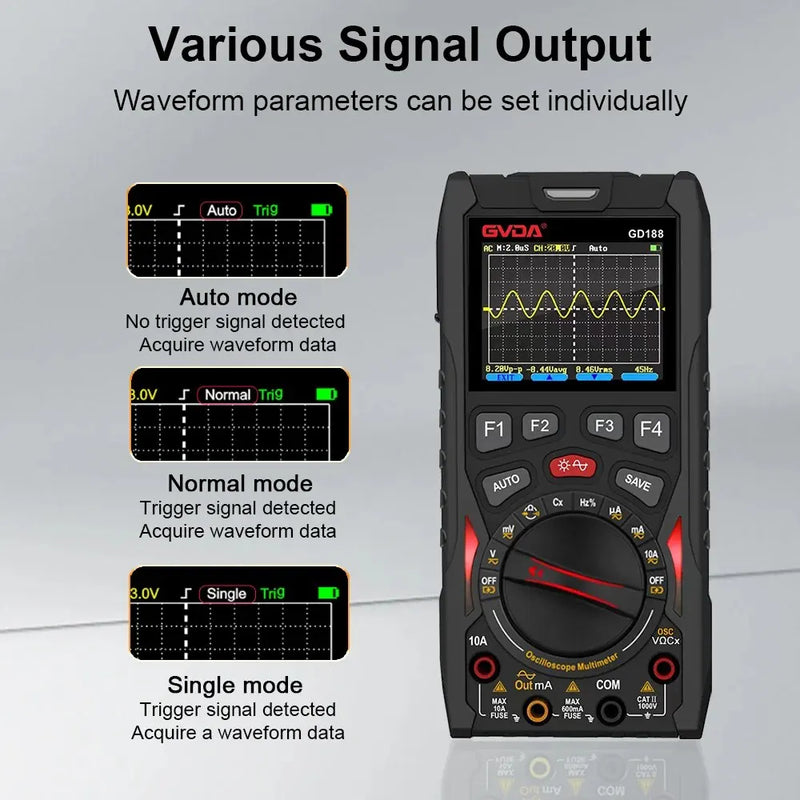

- One Key to See the Wave: Voltage gear, three waveform scanning modes: automatic/conventional/single.
- Signal Source Outputs: Sine, triangle, and square waveforms.
- Signal Source Output Range: Frequency, duty cycle, fixed point, adjustable.
- Replaceable 18650 Lithium Batteries: More environmentally friendly.
- Data Waveform Hold Function: During measurement, 100 sets of data and 10 waveforms can be stored.
- Waveform Range: Up to 200V/grid, up to 1600Vpp measurement.
- Relative Value Measurement: Effectively eliminates lead resistance, distributed capacitance, or interference signals.
- Multimeter Functions: Voltage, current, resistance, capacitance, frequency, duty cycle, diode/on/off testing.
- Automatic/Manual Range Switching: Displaying real-time data and stored data on the same screen.
- Overload Protection: 750mA; 10A double fuse, double protection instrument.
- Auto-Sleep Function: 15 minutes of no operation.
- 2.4 Inch Color Screen Display: Clear display.
- Panel Calibration: Memory calibration factor without potentiometer adjustment, higher reliability.
Product Details
General Parameters
- Display: 240*320 Color Screen
- Observation Area: 49.0*36.7mm
- Backlight: Ever Bright
-
Input Resistance: 500mV/div
200V/div about 5MΩ, 50mV/div200mV/div about 1MΩ - Battery: One 18650 lithium battery (1500mAH)
- Automatic Sleep: 15 minutes or disabled
- Static Operating Current: Multimeter about 80mA, Oscilloscope about 300mA
- Shutdown: <10uA
- Duration of Continuous Use: >8 hours
- Save Capability: 100 records of DMM data, 10 records of OSC waveforms
- Usage Environment: 0°C~+40°C; <75% RH
- Storage Conditions: -10°C ~ +60°C; <90% RH
- Product Size: 8316032mm
- Product Weight: 250g
- Charging: 5V/1A, Type-C

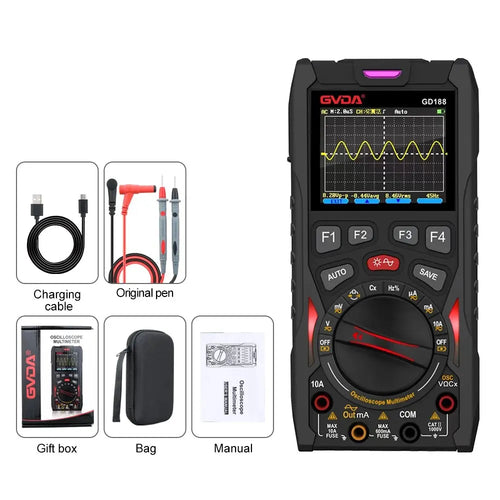

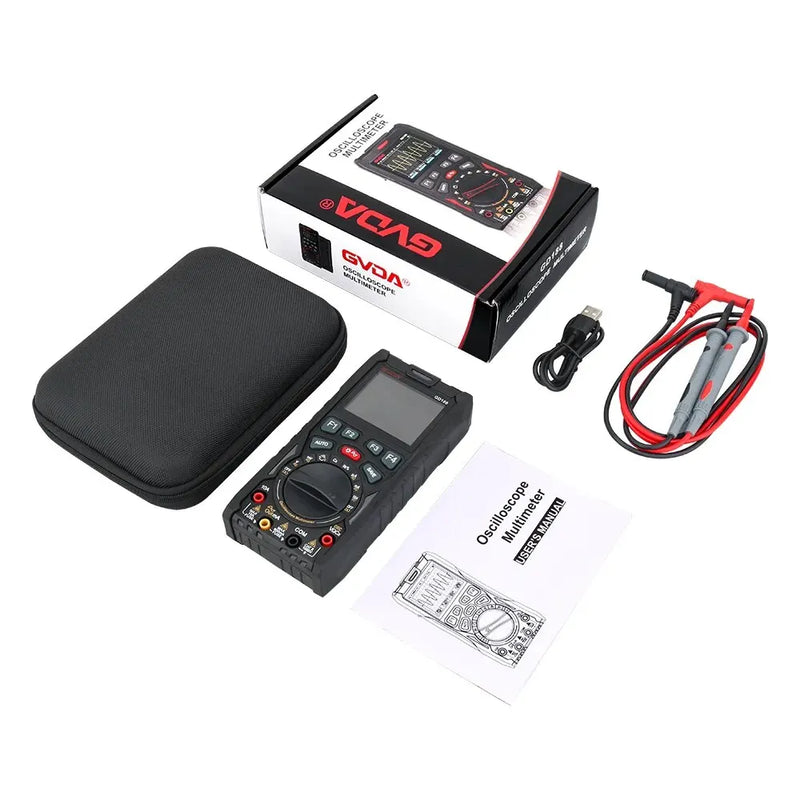

- Package Contents: 1* Oscilloscope, 1* test pen, 1* cloth bag, 1* manual
Oscilloscope Parameters
-
Simulation Bandwidth: DC
8MHz (50mV/div200mV/div), DC12MHz (500mV/div20V/div) - Maximum Equivalent Sampling Rate: 50Msps
- Number of Channels: 1
- Input Resistance: 5MΩ
- Vertical Sensitivity Range: 500mV~200V/div
- Time Base Range: 200ns~10s/div
- Vertical Range Accuracy: ±(5% + 0.2div)
- Time Base Accuracy: ±(0.01% + 0.1div)
- Scan Mode: Auto/normal/single
- Trigger Edge Selection: Rising/falling edge
- Automatic Settings: Time base and vertical range
- Automatic Measurement Function: Vp-p, Vavg, Vrms, Hz

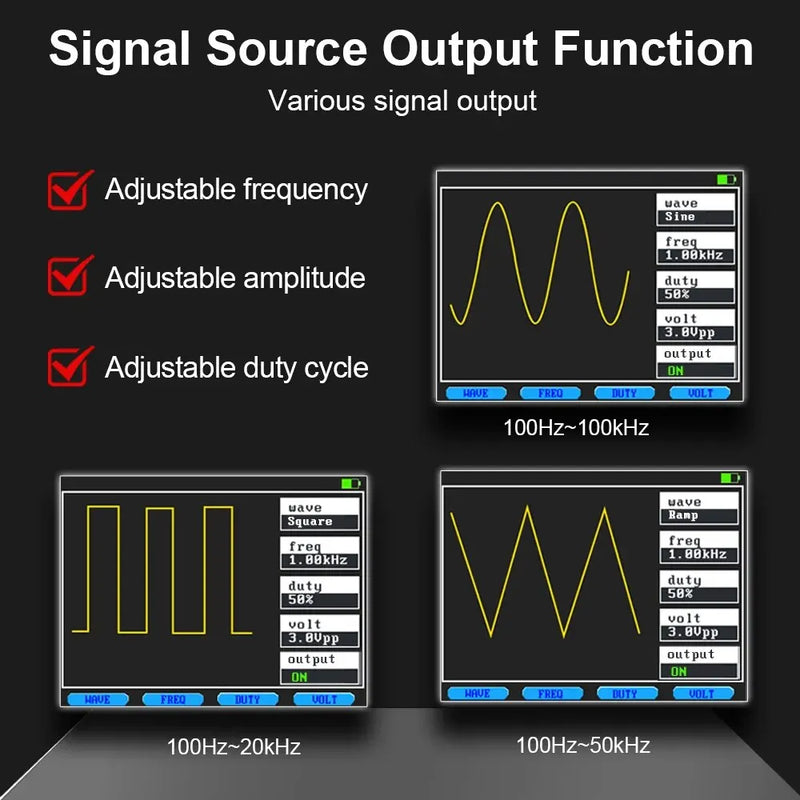

Signal Source Parameters
- Sine Wave Frequency: 100Hz~100kHz (fixed-point output in 1-2-5 steps)
- Square Wave Frequency: 100Hz~20kHz (fixed-point output in 1-2-5 steps)
- Triangular Wave Frequency: 100Hz~50kHz (fixed-point output in 1-2-5 steps)
- Output Amplitude: 3Vpp, 2.5Vpp, 2Vpp, 1.5Vpp, 1Vpp, 0.5Vpp, 0.4Vpp, 0.3Vpp, 0.2Vpp, 0.1Vpp, 0Vpp
Multimeter Parameters
- DC Voltage: 60.00mV/6000mV/600mV/6V/60V/600V/1000V
- AC Voltage: 60.00mV/6000mV/600mV/6V/60V/600V/750V
- DC Current: 600.0uA/6000uA/60mA/600mA/6A/10A
- AC Current: 600uA/6000uA/60mA/600mA/6A/10A
- Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Capacitance: 99.99nF/999.9nF/9.99μF/99.99μF/999.9μF/9.999mF/99.99mF
- Frequency: 1.000Hz~20.00MHz
- Diode/On/Off Test: Open circuit voltage about 2.8V; judgment resistance about 50Ω
- Fuse: 750mA/250V, 10A/250V
- Operation Mode: AUTO/manual
GVDA Digital 3 in 1 Oscilloscope + Signal Source + Multimeter

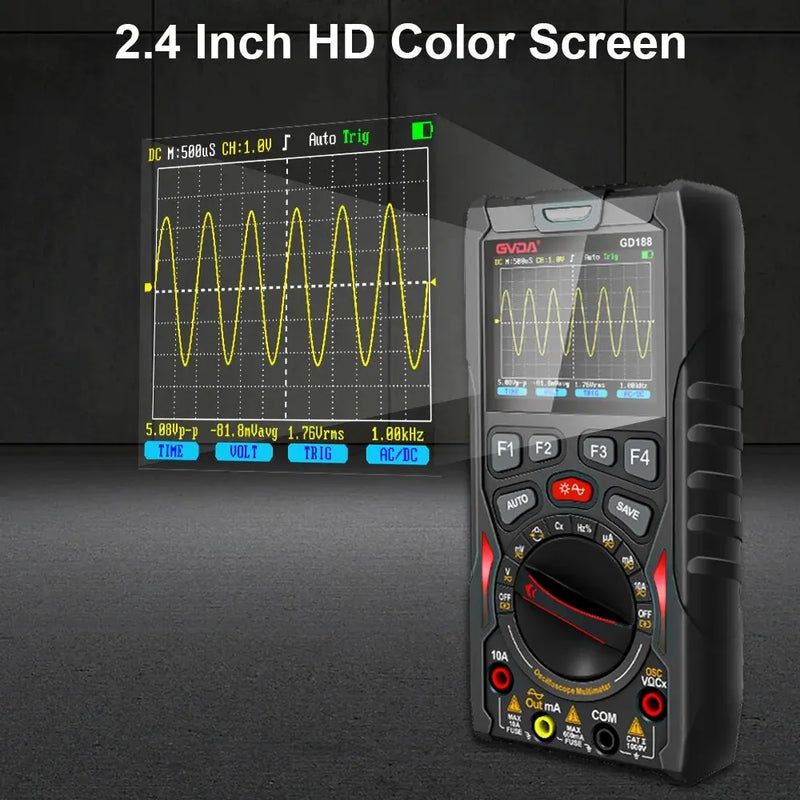

- 2.4 Inch HD Color Screen
- Oscilloscope + Multimeter: 12MHz bandwidth oscilloscope + 6000 counts auto range multimeter
- Signal Source Output Function: Various signal outputs: sine wave, square wave, triangular wave
- Waveform Parameters: Can be set individually
- Storage Function: 100 records of DMM data, 10 records of OSC waveforms
- Multimeter Measurement: Tests AC/DC current, AC/DC voltage, resistance, capacitance, frequency, diode, continuity
- Rechargeable Battery: Rechargeable 18650 lithium batteries, more environmentally friendly
