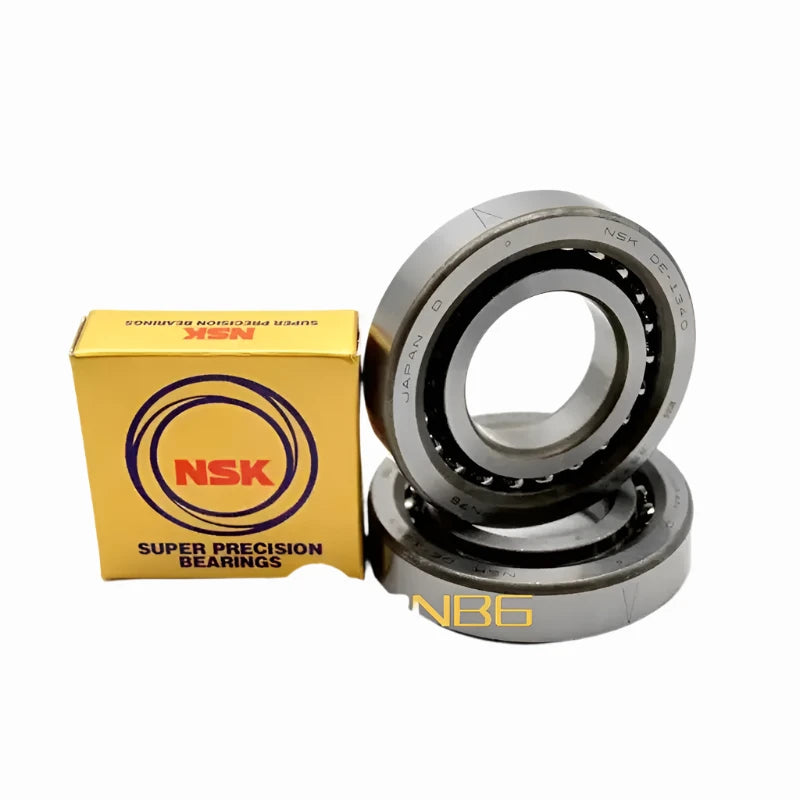

High Precision Ball Screw Machine Tool Bearing NSK 15TAC47B
The NSK 15TAC47B High Precision Ball Screw Machine Tool Bearing is designed for high-performance and accuracy in machine tools, particularly for ball screws and linear actuators. This bearing is part of the renowned TAC series, known for its reliability, precision, and durability. With a focus on high-speed rotation and low friction, the bearing ensures smooth operation in demanding industrial environments. We also offer OEM services, competitive pricing, and fast delivery for custom-sized bearings.
Key Features:
| Feature | Specification |
|---|---|
| Model Number | 15TAC47B |
| Inner Diameter (d) | 15mm (0.59 inches) |
| Outer Diameter (D) | 47mm (1.85 inches) |
| Width (B) | 15mm (0.59 inches) |
| Fillet Radius (rsmin) | 1.0mm (0.039 inches) |
| Contact Angle (a) | 35° |
Available Models & Specifications:
| Model Number | Inner Diameter (d) | Outer Diameter (D) | Width (B) | Fillet Radius (rsmin) | Contact Angle (a) |
|---|---|---|---|---|---|
| 15TAC47B | 15mm (0.59 in) | 47mm (1.85 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 35° |
| 17TAC47B | 17mm (0.67 in) | 47mm (1.85 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 35° |
| 20TAC47B | 20mm (0.79 in) | 47mm (1.85 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 37° |
| 25TAC62B | 25mm (0.98 in) | 62mm (2.44 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 46° |
| 30TAC62B | 30mm (1.18 in) | 62mm (2.44 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 48° |
| 30TAC72B | 30mm (1.18 in) | 72mm (2.83 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 52° |
| 35TAC72B | 35mm (1.38 in) | 72mm (2.83 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 54° |
| 40TAC72B | 40mm (1.57 in) | 72mm (2.83 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 56° |
| 40TAC90B | 40mm (1.57 in) | 90mm (3.54 in) | 20mm (0.79 in) | 1.5mm (0.059 in) | 67° |
| 45TAC75B | 45mm (1.77 in) | 75mm (2.95 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 60° |
| 45TAC100B | 45mm (1.77 in) | 100mm (3.94 in) | 20mm (0.79 in) | 1.5mm (0.059 in) | 74° |
| 50TAC100B | 50mm (1.97 in) | 100mm (3.94 in) | 20mm (0.79 in) | 1.5mm (0.059 in) | 76° |
| 55TAC90B | 55mm (2.17 in) | 90mm (3.54 in) | 15mm (0.59 in) | 1.0mm (0.039 in) | 70° |
| 55TAC100B | 55mm (2.17 in) | 100mm (3.94 in) | 20mm (0.79 in) | 1.5mm (0.059 in) | 77° |
| 55TAC120B | 55mm (2.17 in) | 120mm (4.72 in) | 20mm (0.79 in) | 1.5mm (0.059 in) | 86° |
| 60TAC120B | 60mm (2.36 in) | 120mm (4.72 in) | 20mm (0.79 in) | 1.5mm (0.059 in) | 88° |
| 75TAC110B | 75mm (2.95 in) | 110mm (4.33 in) | 15mm (0.59 in) | 1.5mm (0.059 in) | 88° |
| 100TAC150B | 100mm (3.94 in) | 150mm (5.91 in) | 22.5mm (0.89 in) | 2.0mm (0.079 in) | 120° |
Additional Services:
- OEM Customization: Custom bearing size, logo, and packaging.
- Certificates: CE, EPR, and SGS reports provided.
- Warranty: One-year warranty.
- Competitive Pricing: Wholesale pricing available.
- Quick Delivery: Short lead times for fast delivery.
- Free Samples: Available for regular customers; new buyers can receive free samples for selected bearings.
Applications:
- Machine tools
- Ball screws
- Linear actuators
- CNC machines
- Precision equipment
Keywords: High precision ball screw bearing, NSK 15TAC47B, machine tool bearing, OEM service, CE certificate, ball screw support bearing.
