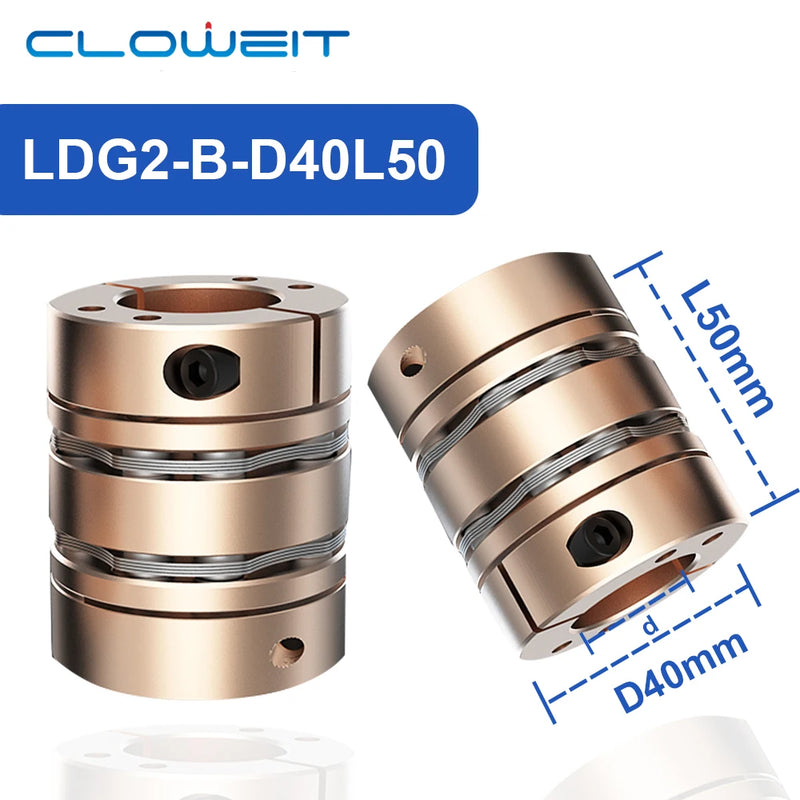

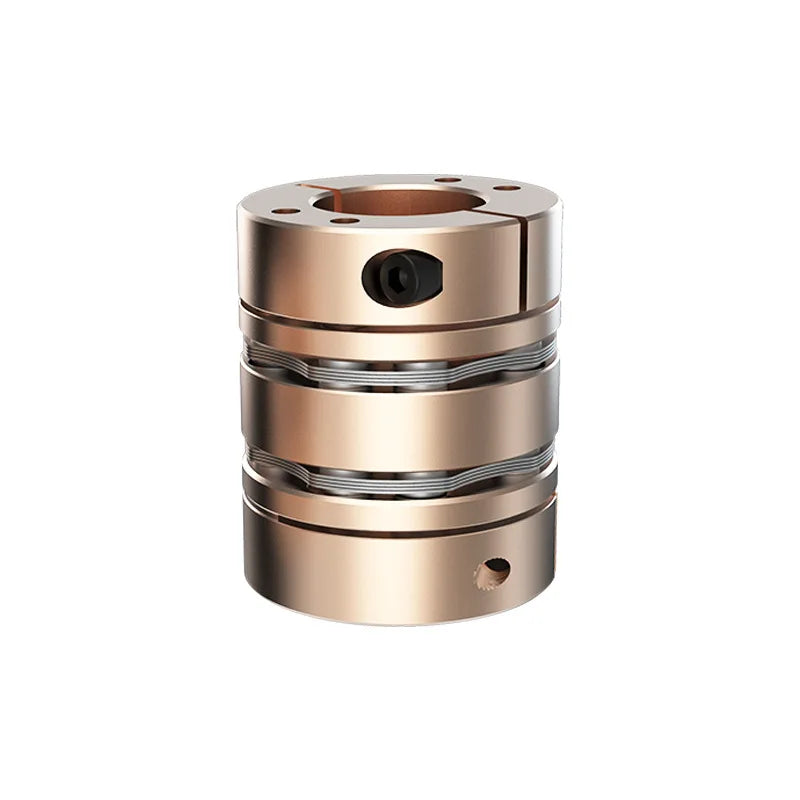

CNC Motor Diaphragm Couplings D40L50 Double Disc Clamp Type
The CNC Motor Diaphragm Couplings D40L50 is a high-performance, double-disc clamp type coupling designed for precision torque transmission in demanding CNC and industrial automation applications. Offering excellent compensation for misalignment, this coupling is perfect for high-speed applications requiring flexibility, low backlash, and smooth operation.

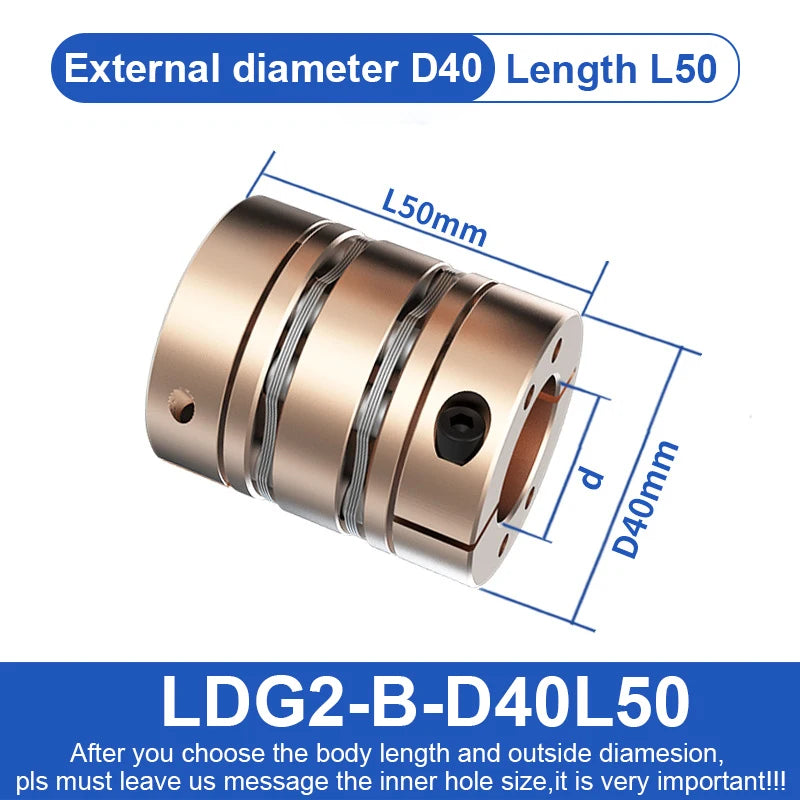

Key Specifications for LDG2-B-D40L50:
| Parameter | Value | Unit |
|---|---|---|
| Outer Diameter (D) | 40 | mm |
| Length (L) | 50 | mm |
| Shaft Bore Range (D1-D2) | 8-22 | mm |
| Fastening Method | M4 Screw | |
| Screw Fasten Torque | 4.9 | N.m |
| Max Input Speed | 10000 | RPM |
| Rated Torque | 13.9 | N.m |
| Maximum Torque | 23.1 | N.m |
| Moment of Inertia | 3.8*10^-5 | kg.m² |
| Weight | 180 | g |
| Permissible Parallel Misalignment | 0.1 | mm |
| Permissible Angular Misalignment | 1° | degrees |

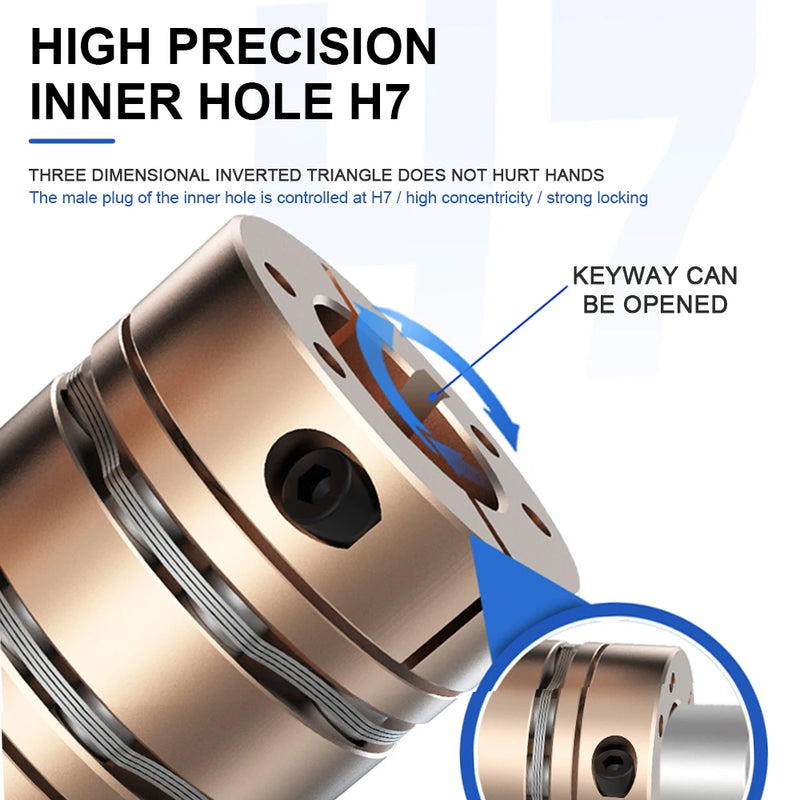

Features:

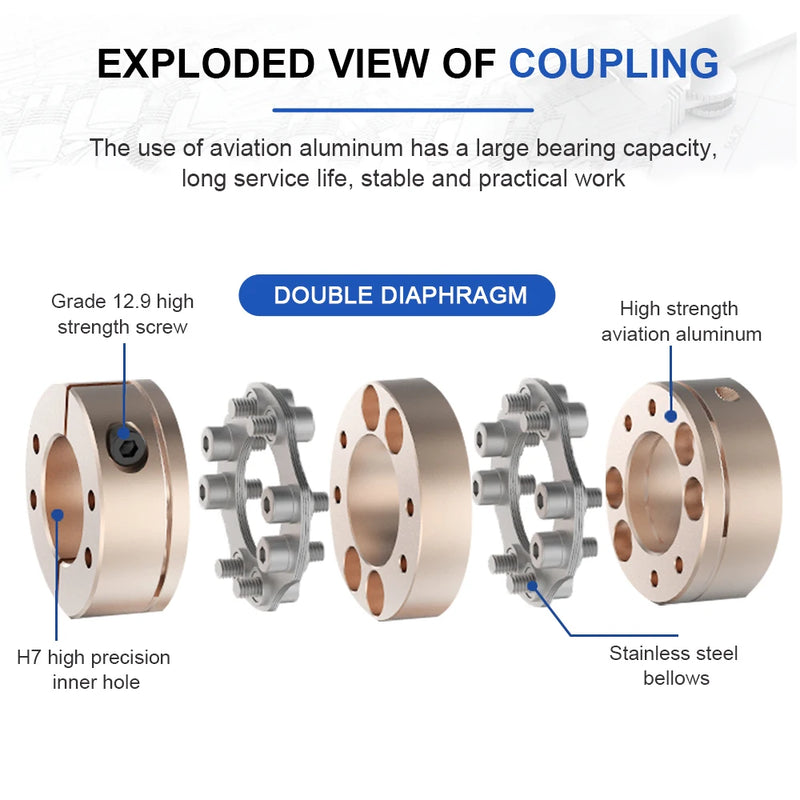

- Double-disc clamp design for enhanced flexibility and misalignment compensation
- Supports high-speed operations up to 10,000 RPM
- Rated for high torque transmission with low backlash
- Lightweight and durable construction
- Ideal for CNC machines, automation, and robotics

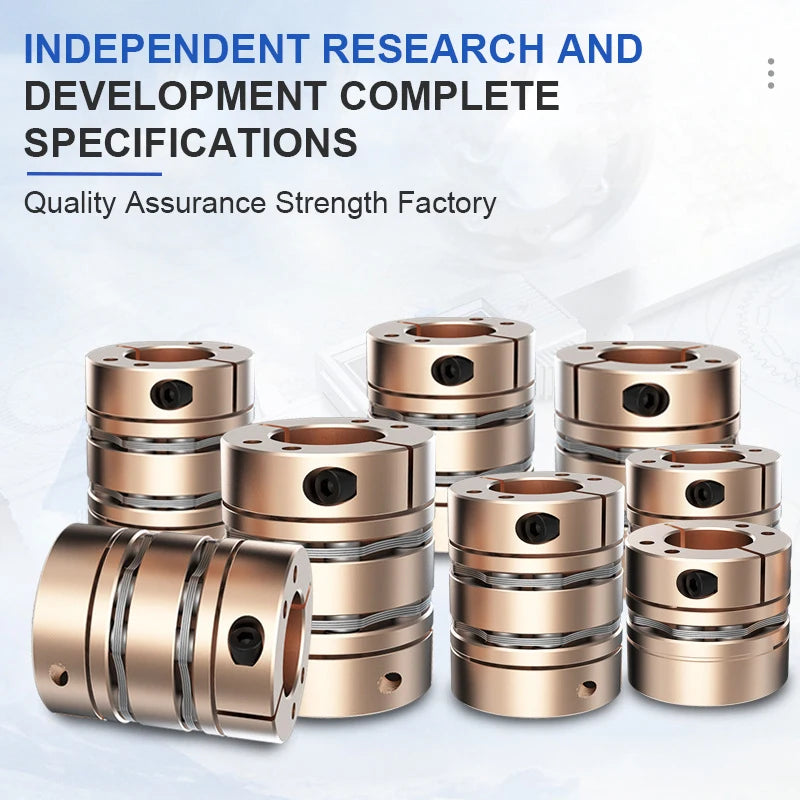

Model Variants:
| Model | Outer Diameter (mm) | Length (mm) | Shaft Bore Range (mm) | Rated Torque (N.m) | Maximum Torque (N.m) | Maximum Speed (RPM) | Weight (g) |
|---|---|---|---|---|---|---|---|
| LDG2-B-D26L35 | 26 | 35 | 4-12 | 2.2 | 3.7 | 10000 | 60 |
| LDG2-B-D32L41 | 32 | 41 | 5-14 | 3.8 | 6.3 | 10000 | 99 |
| LDG2-B-D34L45 | 34 | 45 | 6-16 | 9.5 | 15.8 | 10000 | 120 |
| LDG2-B-D40L50 | 40 | 50 | 8-22 | 13.9 | 23.1 | 10000 | 180 |
| LDG2-B-D45L55 | 45 | 55 | 10-24 | 13.2 | 27 | 10000 | 246 |
| LDG2-B-D50L60 | 50 | 60 | 12-26 | 28.4 | 48 | 10000 | 328 |
| LDG2-B-D56L68 | 56 | 68 | 14-30 | 30.2 | 50.4 | 8000 | 462 |
| LDG2-B-D65L78 | 65 | 78 | 16-35 | 49.1 | 82 | 6000 | 708 |
| LDG2-B-D87L98 | 87 | 98 | 20-45 | 155 | 310 | 5000 | 1582 |
