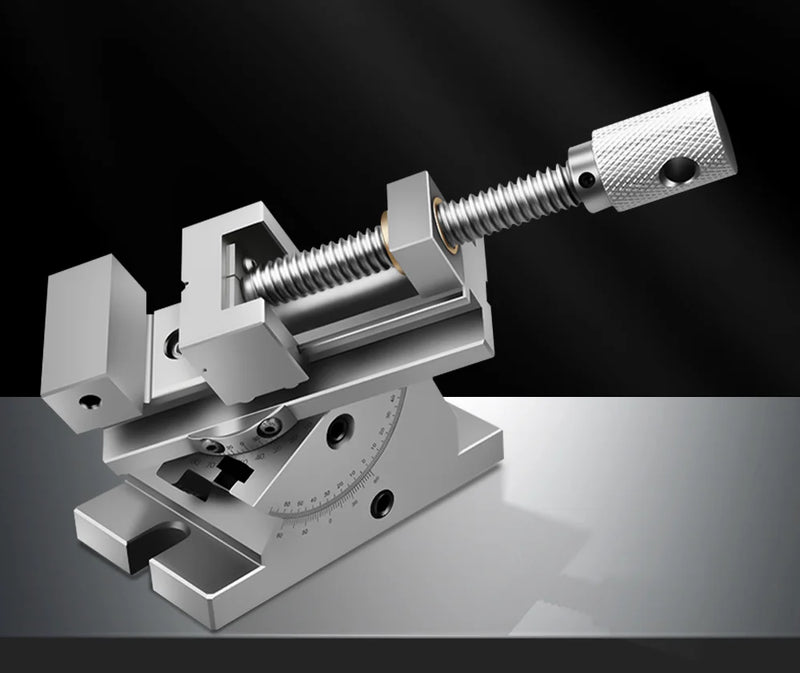

Universal Precision Vise 2" / 3" – 360° Rotation & 45° Tilting Grinding and Milling Vise
The Universal Precision Vise is a high-accuracy clamping solution designed for surface grinders, milling machines, EDM and wire EDM machines. Manufactured from hardened 20CrMnTi alloy tool steel with SUS440 base and 40Cr shaft, this vise ensures exceptional durability and machining precision.
Featuring 360° horizontal rotation and 45° vertical tilt adjustment, this vise allows precise angular positioning for bevels, angled holes, grooves and complex workpieces. Precision worm gear adjustment ensures smooth and stable operation.
With parallelism and verticality of 0.005mm / 100mm and working surface hardness of HRC55–64, this vise delivers professional-grade clamping stability and long-term reliability.
Key Features and Benefits

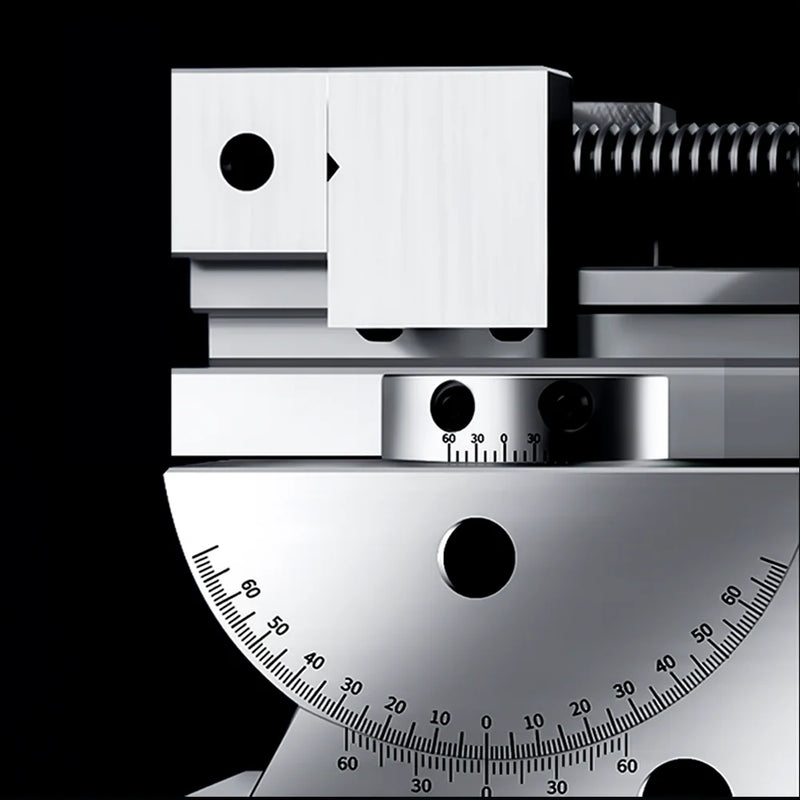

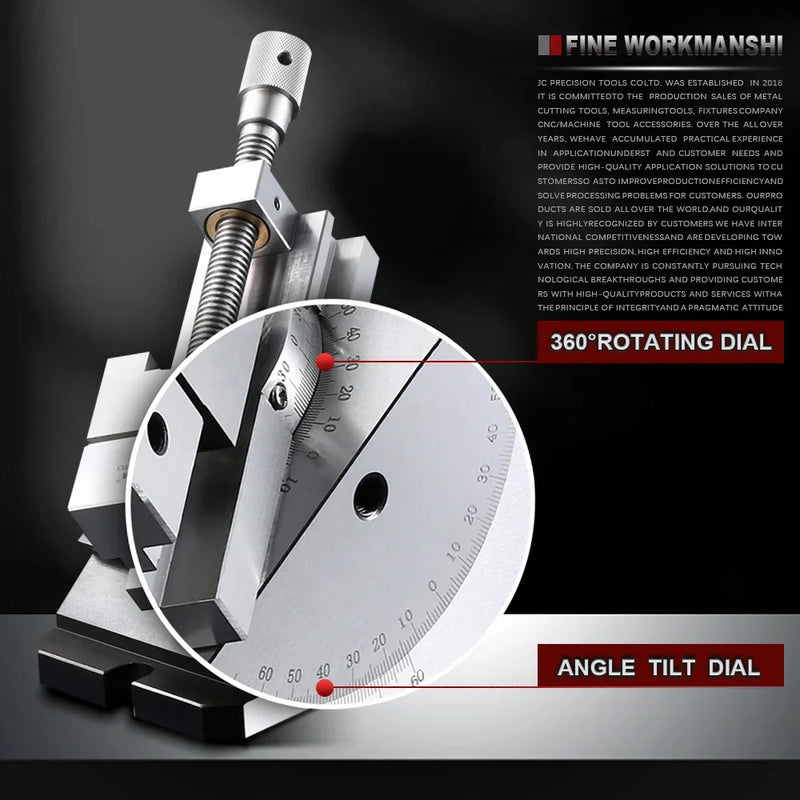

360° Horizontal Rotation
Precise angle positioning for complex machining tasks.
Precise angle positioning for complex machining tasks.

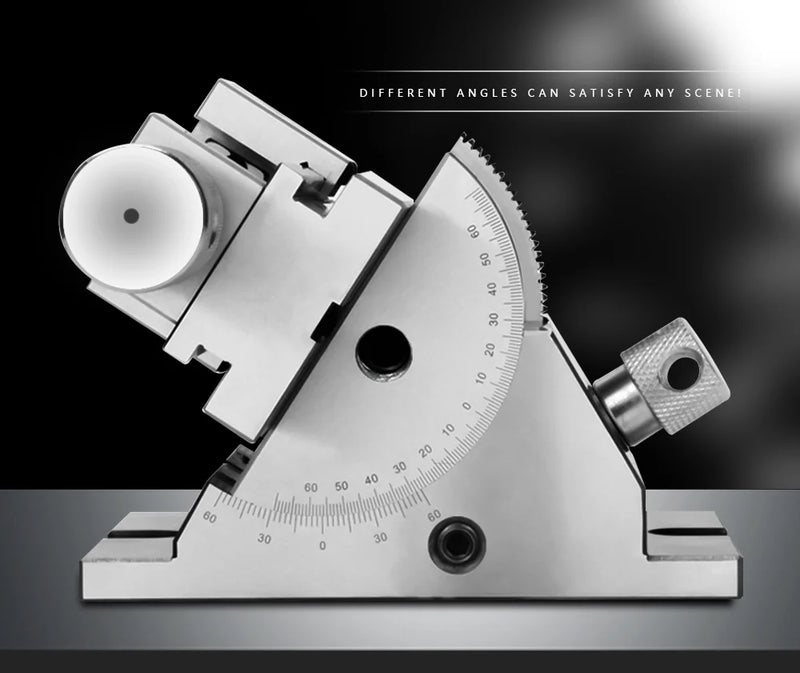

45° Vertical Tilt
Ideal for bevel cutting and angular hole processing.
Ideal for bevel cutting and angular hole processing.
Ultra High Precision
Parallelism & verticality 0.005mm / 100mm.
Parallelism & verticality 0.005mm / 100mm.
Hardened Tool Steel
Working surface hardness HRC55–64 for long service life.
Working surface hardness HRC55–64 for long service life.

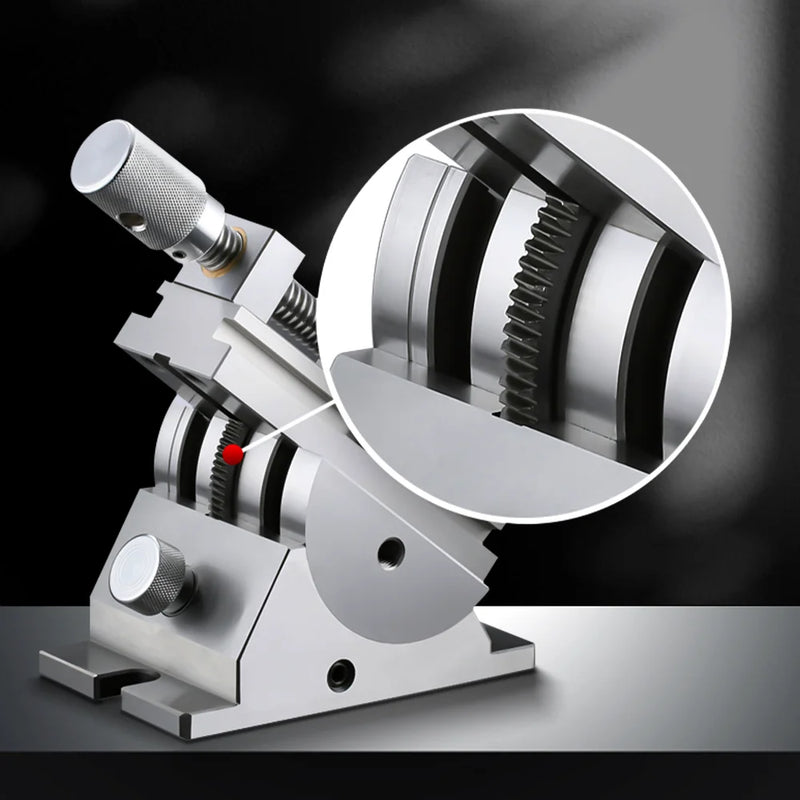

Precision Worm Gear System
Smooth angle adjustment and stable clamping.
Smooth angle adjustment and stable clamping.
Industrial Grade Construction
Designed for grinding, milling and EDM machining.
Designed for grinding, milling and EDM machining.
Applications
- Surface grinding machines
- Milling machines
- EDM and wire EDM
- Angular plane machining
- Groove and bevel processing
- Precision mold and tool workshops
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Universal Precision Vise |
| Available Sizes | 2 inch / 3 inch |
| Material | 20CrMnTi Alloy Tool Steel |
| Base | SUS440 |
| Shaft | 40Cr |
| Hardness | HRC55–64 |
| Parallelism | 0.005mm / 100mm (0.0002" / 3.94") |
| Verticality | 0.005mm / 100mm (0.0002" / 3.94") |
| Drive Mode | Manual |
| Certification | CE |
Dimensions
| Model | A | B | C | D | E | F | Weight |
|---|---|---|---|---|---|---|---|
| 2 inch | 50mm (1.97") | 70mm (2.76") | 23mm (0.91") | 24mm (0.94") | 102mm (4.02") | 130mm (5.12") | 7kg (15.43 lbs) |
| 3 inch | 73mm (2.87") | 100mm (3.94") | 33mm (1.30") | 35mm (1.38") | 132mm (5.20") | 168mm (6.61") | 13kg (28.66 lbs) |
