QKG25 Precision Mini Grinding Vise 1" – Hardened Tool Steel CNC & EDM Bench Clamp
The QKG25 Precision Mini Vise is a high-accuracy clamping solution engineered for surface grinding, CNC milling, EDM and toolroom applications. Manufactured from hardened 20CrMnTi alloy tool steel, this vise delivers exceptional rigidity, wear resistance and dimensional stability.
With 0.005mm precision (0.0002"), hardened working surfaces (HRC58–62) and precision-ground flatness, this vise ensures square and parallel alignment for demanding machining operations.
Its compact 1" (25mm) jaw width and integrated V-groove design allow secure clamping of both flat and round components, making it ideal for precision parts processing.
Key Features
Ultra Precision Accuracy
Parallelism and squareness within 0.005mm (0.0002").
Parallelism and squareness within 0.005mm (0.0002").
Hardened Tool Steel
Heat treated HRC58–62 for superior durability.
Heat treated HRC58–62 for superior durability.
Precision Ground Surfaces
Flatness and alignment optimized for grinding work.
Flatness and alignment optimized for grinding work.
Integrated V-Groove
Secure clamping of round rods and cylindrical parts.
Secure clamping of round rods and cylindrical parts.
Compact Toolroom Design
Ideal for small precision components.
Ideal for small precision components.
Manual Quick Operation
Jaws open and close smoothly without removing from surface.
Jaws open and close smoothly without removing from surface.
Applications
- Surface grinding machines
- CNC milling machines
- EDM and wire EDM
- Precision toolroom work
- Small mechanical parts processing

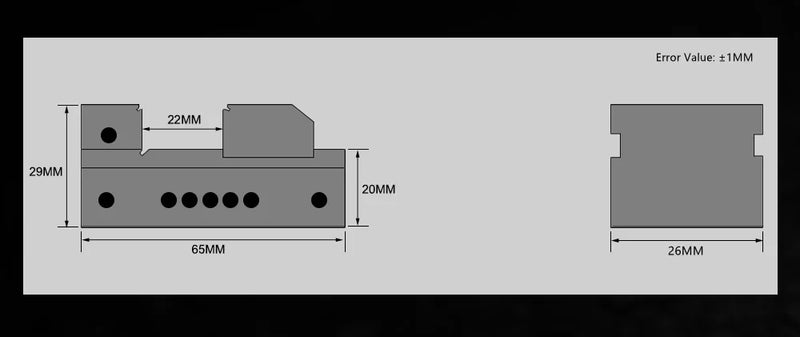

Technical Specifications
| Specification | Details |
|---|---|
| Model | QKG25 |
| Jaw Width | 25mm (1") |
| Body Length | 65mm (2.56") |
| Body Height | 29mm (1.14") |
| Jaw Height | 20mm (0.79") |
| Jaw Opening | 22mm (0.87") |
| Base Width | 26mm (1.02") |
| Material | 20CrMnTi Alloy Tool Steel |
| Hardness | HRC58–62 |
| Accuracy | 0.005mm (0.0002") |
| Weight | 0.25kg (0.55 lbs) |
| Certification | CE |
