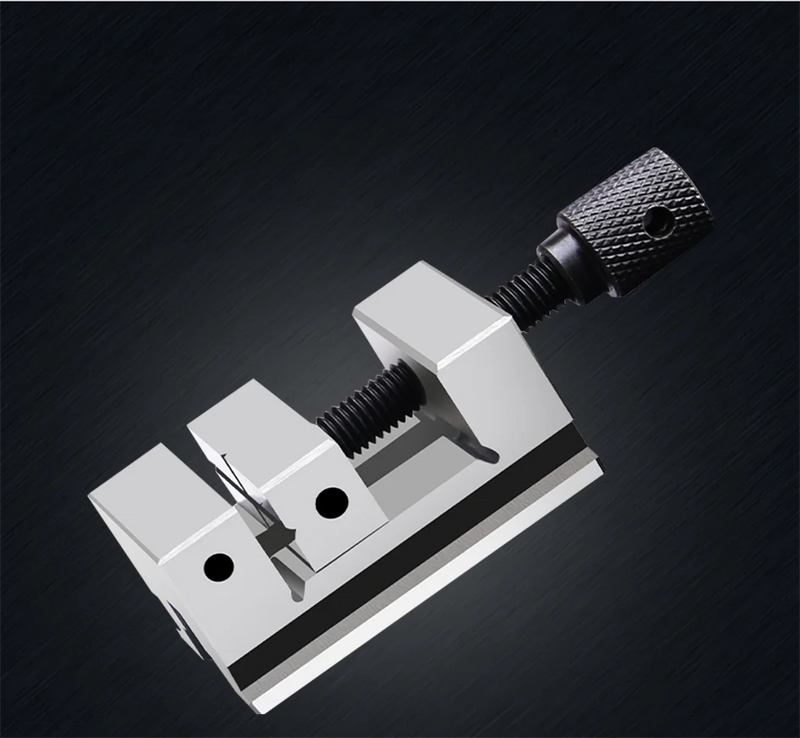

QGG Precision Grinding Vise 25 mm 33 mm 38 mm (1" 1.3" 1.5") Toolmaker CNC Bench Vise HRC58-62
QGG Precision Grinding Vise 25 mm 33 mm 38 mm (1" 1.3" 1.5") – Toolmaker CNC Angle and Bench Vise HRC58-62
The QGG precision grinding vise is a professional high-precision toolmaker vise designed for CNC milling machines, surface grinders, EDM, inspection, and precision machining applications. Manufactured from hardened alloy carbon tool steel (20rMnTi), this vise ensures maximum strength, durability, and wear resistance.
With ultra-high accuracy of 0.005 mm / 100 mm (0.0002" / 4"), precision ground surfaces, and one-piece hardened construction, the vise provides excellent parallelism and repeatable positioning performance for precision machining.
The V-shaped cross jaw design increases clamping force and stability, allowing secure clamping of round, square, and irregular workpieces. The vise can be used both horizontally and vertically, offering maximum flexibility in machining and inspection applications.
Ideal for toolmaking, grinding, milling, inspection, and precision workshop environments, the QGG vise delivers reliable performance, long service life, and professional machining accuracy.
Key Features and Benefits
Accuracy up to 0.005 mm (0.0002") ensures precise machining and inspection.
Alloy carbon steel hardened to HRC58-62 for maximum durability.
Provides secure clamping of round and irregular workpieces.
Can be used vertically and horizontally for maximum flexibility.
Ensures perfect flatness, parallelism, and machining accuracy.
Designed for machinists, engineers, and precision workshops.
Applications
- CNC milling machines
- Surface grinding machines
- EDM and wire EDM machines
- Precision inspection and measurement
- Toolmaking and mold making
- Machining workshops and industrial use
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | QGG Precision Grinding Vise |
| Model Options | QGG25 – 25 mm (1") QGG33 – 33 mm (1.3") QGG38 – 38 mm (1.5") |
| Material | Alloy Carbon Tool Steel (20rMnTi) |
| Hardness | HRC58-62 |
| Accuracy | 0.005 mm / 100 mm (0.0002") |
| Drive Mode | Manual |
| Certification | CE |
| Applications | Grinding, milling, CNC machining, inspection |
| Package Included | 1 × Precision Grinding Vise |
Dimensions and Size Chart
| Model | Jaw Width (W) | Height (H) | Jaw Height (H1) | Max Opening (Wmax) | Length (L) | Weight |
|---|---|---|---|---|---|---|
|
QGG25 25 mm (1") |
25 mm (1.00") | 27 mm (1.06") | 15 mm (0.59") | 20 mm (0.79") | 58 mm (2.28") | 0.20 kg (0.44 lbs) |
|
QGG33 33 mm (1.3") |
33 mm (1.30") | 27 mm (1.06") | 15 mm (0.59") | 20 mm (0.79") | 58 mm (2.28") | 0.25 kg (0.55 lbs) |
|
QGG38 38 mm (1.5") |
38 mm (1.50") | 27 mm (1.06") | 15 mm (0.59") | 20 mm (0.79") | 58 mm (2.28") | 0.35 kg (0.77 lbs) |
