DYV Precision Hydraulic Vise 6" – CNC Milling Hydraulic Bench Vice
元の価格
€0,00
-
元の価格
€0,00
元の価格
€0,00
€998,62
€931,40
-
€998,62
現在の価格
€998,62
DYV Precision Hydraulic Vise 6" – Taiwan CNC Milling & Machining Hydraulic Vice
The DYV Precision Hydraulic Vise is a high-performance clamping solution designed for CNC milling machines, machining centers, surface grinders and EDM equipment. Manufactured in Taiwan from spherical graphitized ductile cast iron, this vise ensures superior tensile strength, rigidity and long-term dimensional stability.
With adjustable hydraulic clamping force and machining accuracy up to 0.01–0.05mm (0.0004"–0.002"), the DYV vise delivers consistent and repeatable precision in demanding industrial environments.
The precision-ground guideways, anti-chip cover system and quenched jaws (HRC45–50) provide smooth movement, wear resistance and extended service life.
Key Features

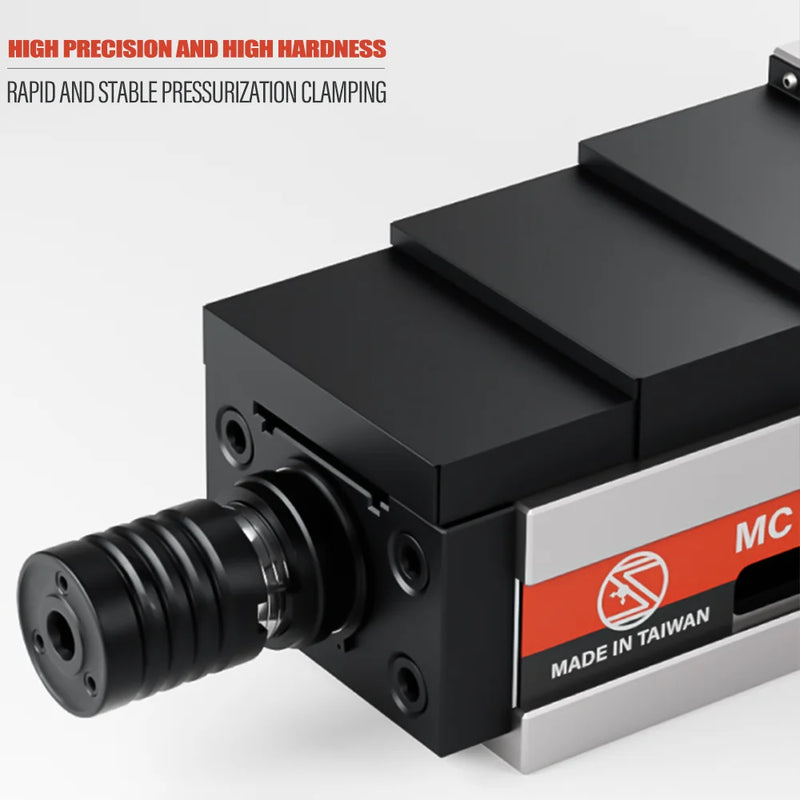

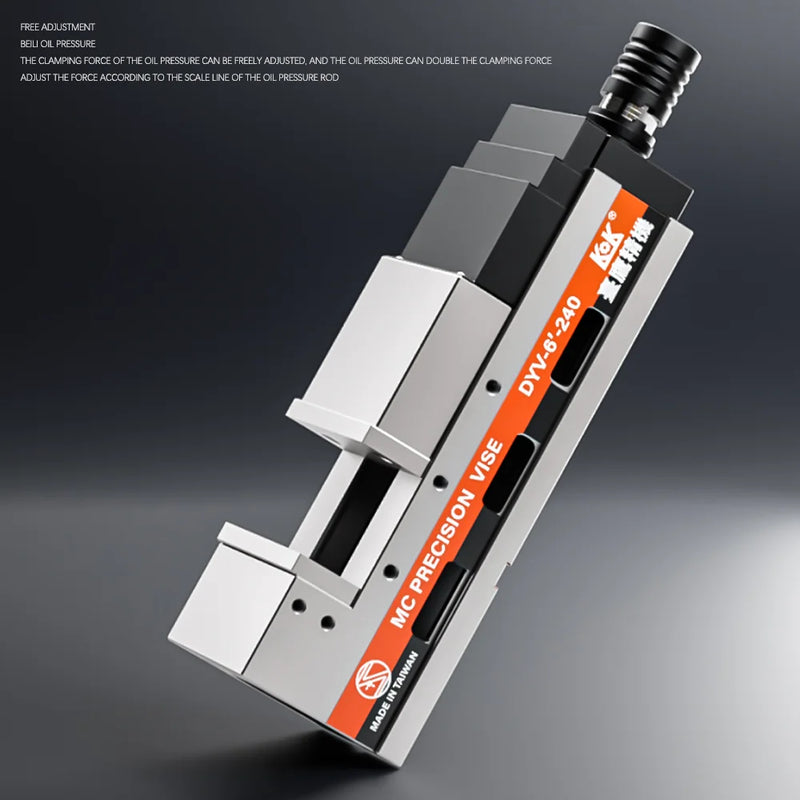

Hydraulic Clamping System
Adjustable oil pressure for stable and repeatable force control.
Adjustable oil pressure for stable and repeatable force control.
Ductile Cast Iron Body
High tensile strength and deformation resistance.
High tensile strength and deformation resistance.
Precision Accuracy
Verticality 0.01mm and parallelism within 0.02mm.
Verticality 0.01mm and parallelism within 0.02mm.
Quenched & Hardened Jaws
Surface hardness HRC45–50 for long wear resistance.
Surface hardness HRC45–50 for long wear resistance.
Anti-Chip Protection
Prevents metal debris from entering internal components.
Prevents metal debris from entering internal components.
Taiwan Manufacturing Quality
Engineered for industrial CNC and mold applications.
Engineered for industrial CNC and mold applications.
Applications
- CNC milling machines
- Vertical and horizontal machining centers
- Surface grinders
- Boring machines
- Gantry milling machines
- Mold and die manufacturing
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Precision Hydraulic Bench Vise |
| Material | Spherical Graphitized Ductile Cast Iron |
| Hardness | HRC45–50 |
| Accuracy | 0.01–0.05mm (0.0004"–0.002") |
| Max Opening | 240–340mm (9.45"–13.39") |
| Drive Mode | Hydraulic |
| Certification | CE |
| Origin | Made in Taiwan |

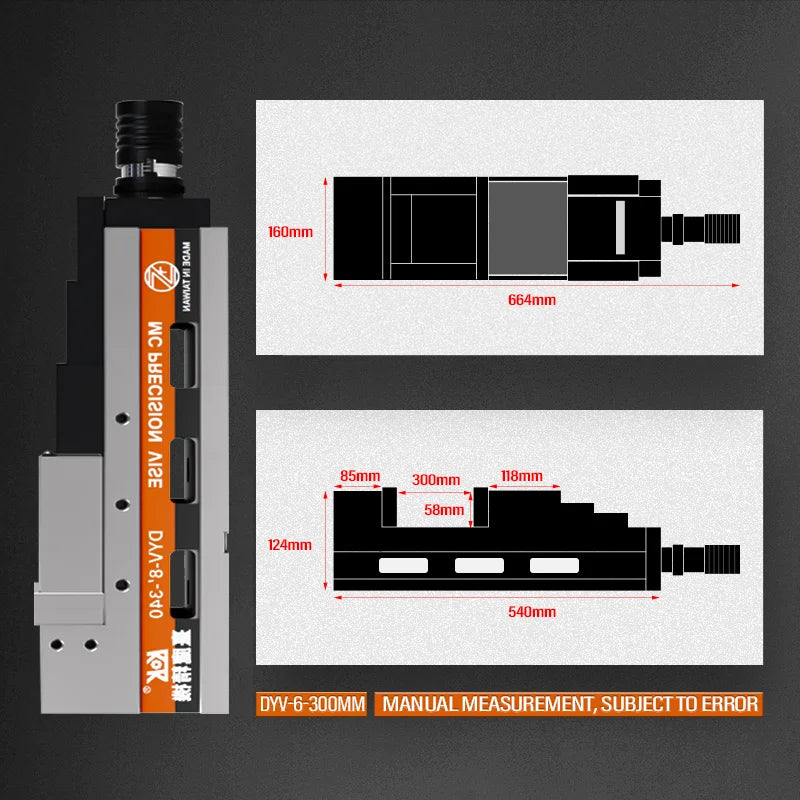

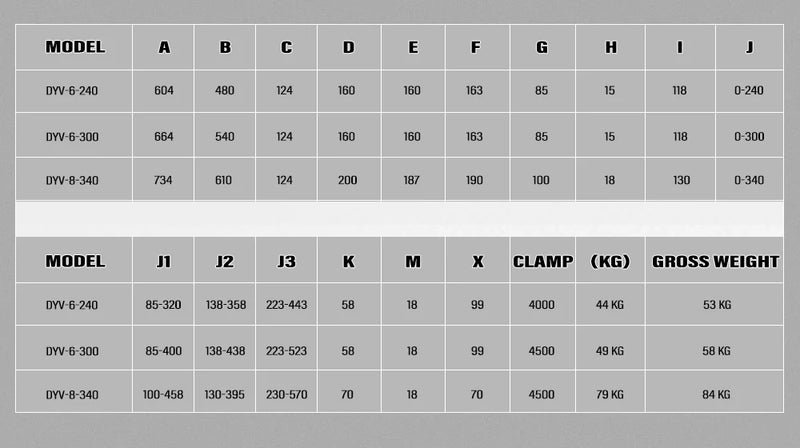

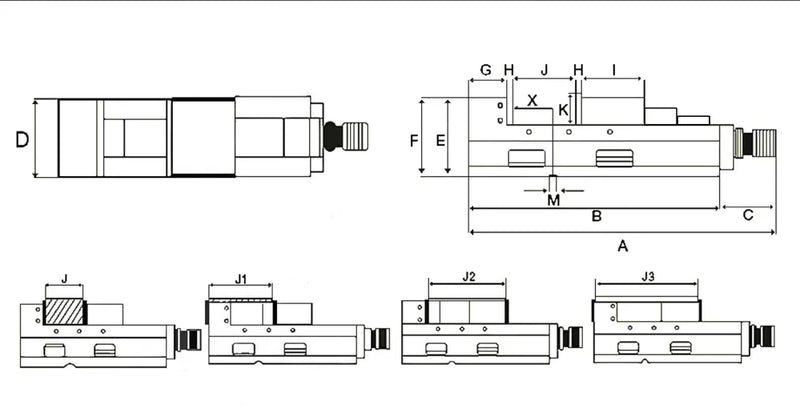

Dimensions (Unit: mm & inch)
| Model | Total Length (A) | Width (D) | Max Opening (J) | Weight | Clamping Force |
|---|---|---|---|---|---|
| DYV-6-240 | 604mm (23.78") | 160mm (6.30") | 240mm (9.45") | 44kg (97 lbs) | 4000kg (8818 lbs) |
| DYV-6-300 | 664mm (26.14") | 160mm (6.30") | 300mm (11.81") | 49kg (108 lbs) | 4500kg (9921 lbs) |
| DYV-8-340 | 734mm (28.90") | 200mm (7.87") | 340mm (13.39") | 79kg (174 lbs) | 4500kg (9921 lbs) |
