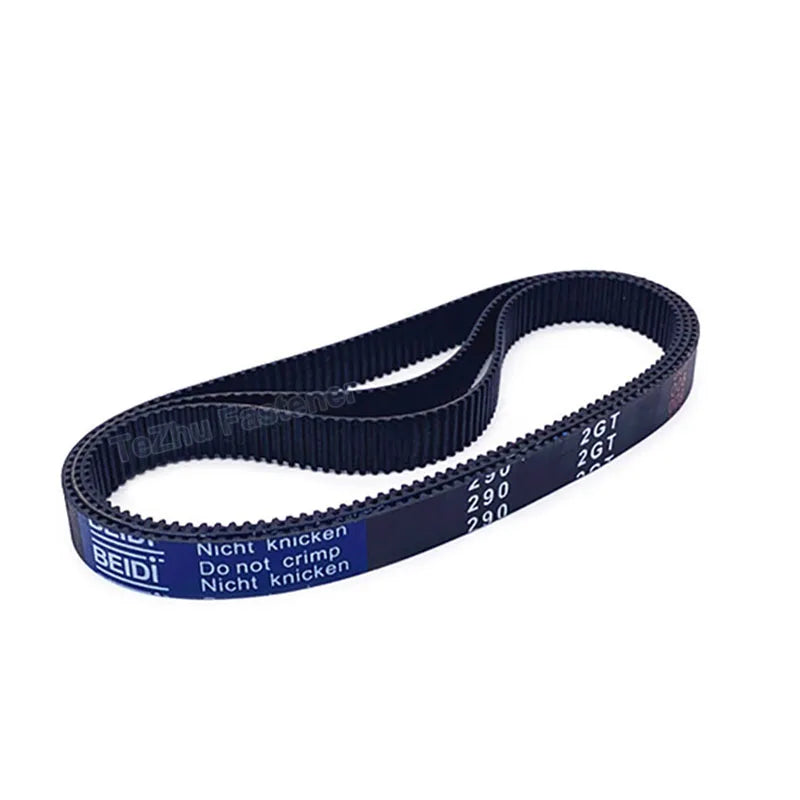

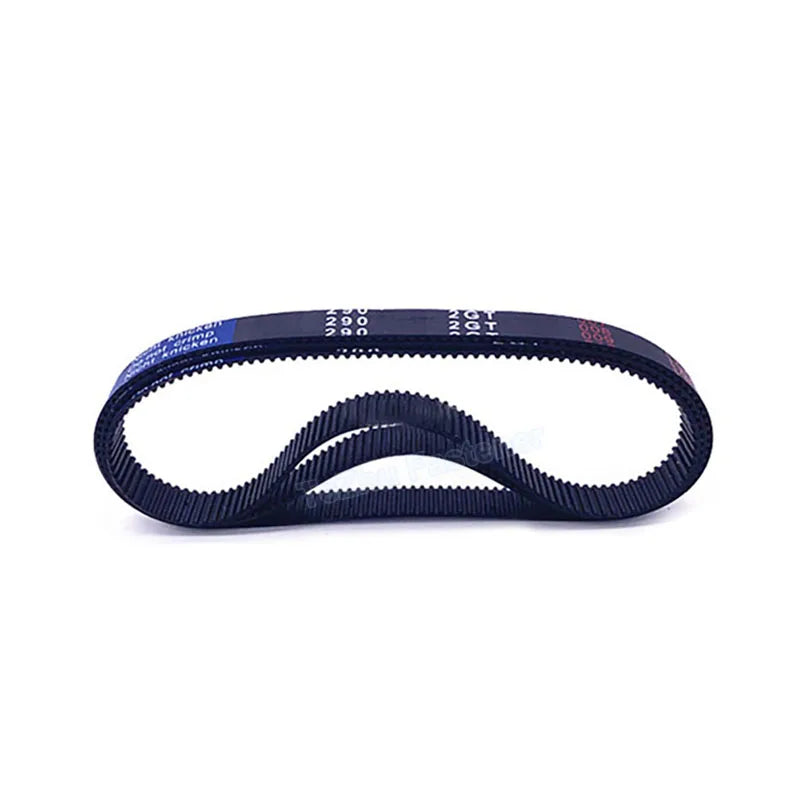

Product Overview
The GT2 (2GT) rubber closed loop timing belt is designed for precise synchronous power transmission in mechanical systems. Its 2 mm tooth pitch and curved tooth profile support smooth engagement with matching GT2 pulleys.
Choose from 182-208 mm pitch lengths and 6 mm or 10 mm belt widths to suit your drive system. The endless loop design is suitable for compact motion-control assemblies, including compatible 3D printer, CNC and automation belt drives. Check the required belt length, width and pulley profile before ordering.
Specifications
| Parameter |
Value |
| Belt profile |
GT2 / 2GT |
| Belt type |
Single-sided, closed loop (endless) synchronous timing belt |
| Material |
Black rubber |

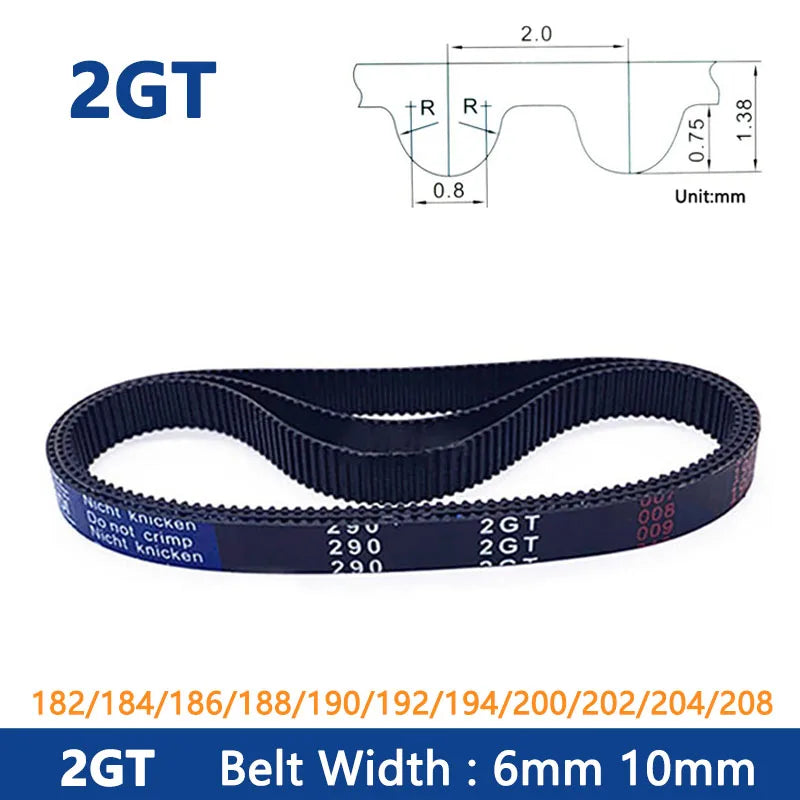

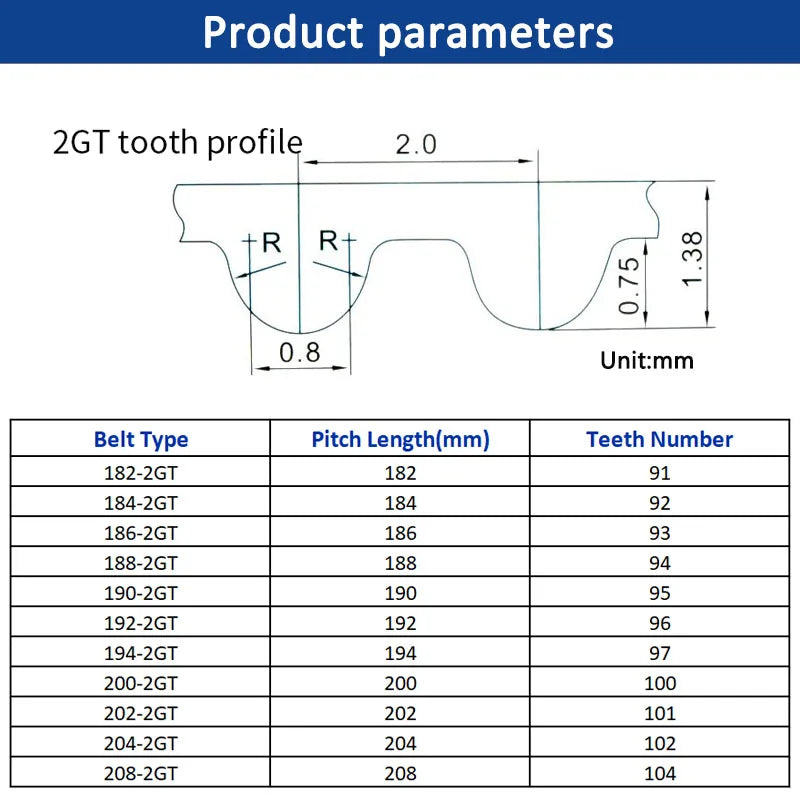

| Tooth profile |
Curved / arc tooth |
| Tooth pitch |
2 mm (approximately 0.079 in) |
| Tooth height |
0.75 mm (approximately 0.030 in) |
| Belt thickness |
1.38 mm (approximately 0.054 in) |
| Available widths |
6 mm or 10 mm (approximately 0.24 or 0.39 in) |
| Available pitch lengths |
182, 184, 186, 188, 190, 192, 194, 200, 202, 204 and 208 mm |
| Pitch length range |
182-208 mm (approximately 7.17-8.19 in) |
| Tooth count range |
91-104 teeth, depending on selected length |

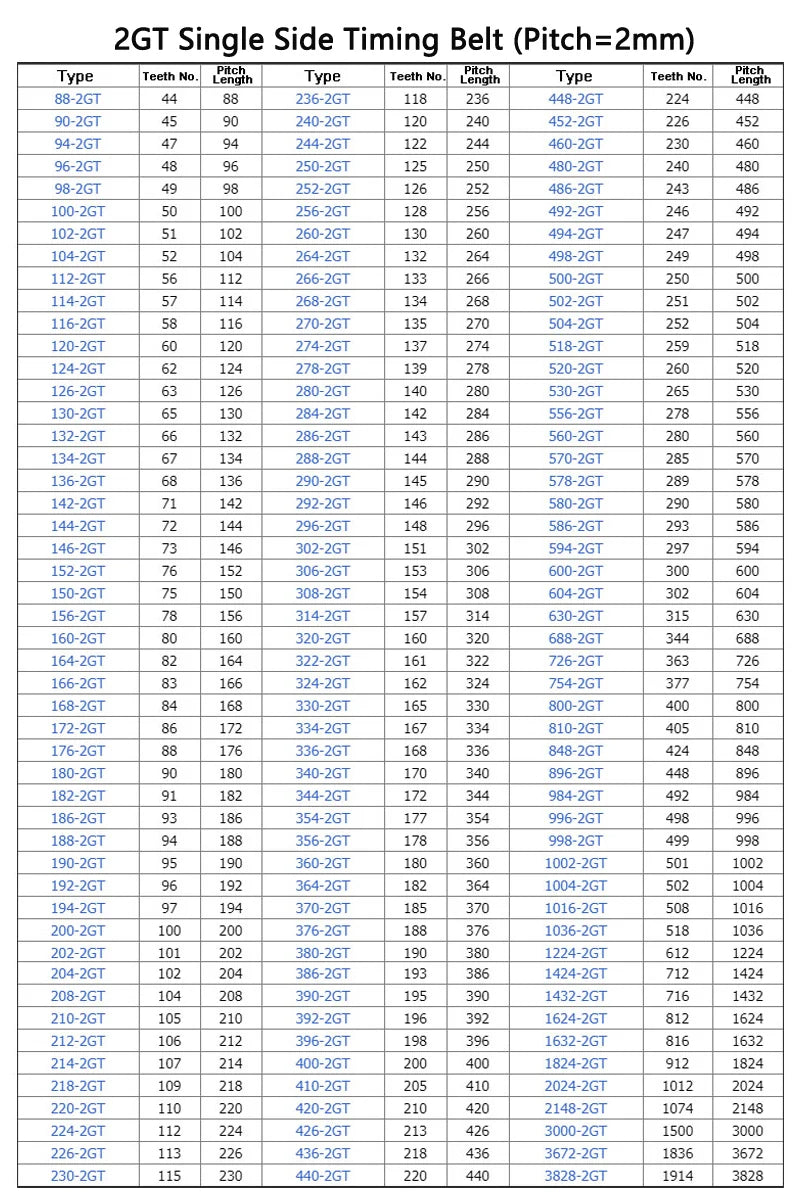

Available Sizes & Tooth Counts
The selected length is the pitch length around the closed loop, not the belt diameter. Tooth count equals pitch length divided by the 2 mm tooth pitch.
| Belt size |
Pitch length |
Teeth |
Widths |
| 182-2GT |
182 mm |
91 |
6 mm / 10 mm |
| 184-2GT |
184 mm |
92 |
6 mm / 10 mm |
| 186-2GT |
186 mm |
93 |
6 mm / 10 mm |
| 188-2GT |
188 mm |
94 |
6 mm / 10 mm |
| 190-2GT |
190 mm |
95 |
6 mm / 10 mm |
| 192-2GT |
192 mm |
96 |
6 mm / 10 mm |
| 194-2GT |
194 mm |
97 |
6 mm / 10 mm |
| 200-2GT |
200 mm |
100 |
6 mm / 10 mm |
| 202-2GT |
202 mm |
101 |
6 mm / 10 mm |
| 204-2GT |
204 mm |
102 |
6 mm / 10 mm |
| 208-2GT |
208 mm |
104 |
6 mm / 10 mm |
Key Features
- GT2 / 2GT tooth profile with 2 mm pitch for synchronous belt drives
- Closed loop construction for compact mechanical assemblies
- Curved teeth for smooth engagement with matching pulleys
- Two width options: 6 mm and 10 mm
- Eleven pitch lengths from 182 mm to 208 mm
Size Selection & Compatibility
Match the belt to your system's GT2 / 2GT pulley profile, required pitch length and belt width. A 2 mm pitch alone does not guarantee compatibility with a different tooth profile. Confirm pulley spacing and the available tension adjustment before installation.
Package Contents
- GT2 / 2GT rubber closed loop timing belt in the selected length and width
The belt size is determined by the selected product variant; order quantity follows the quantity selected at checkout.
