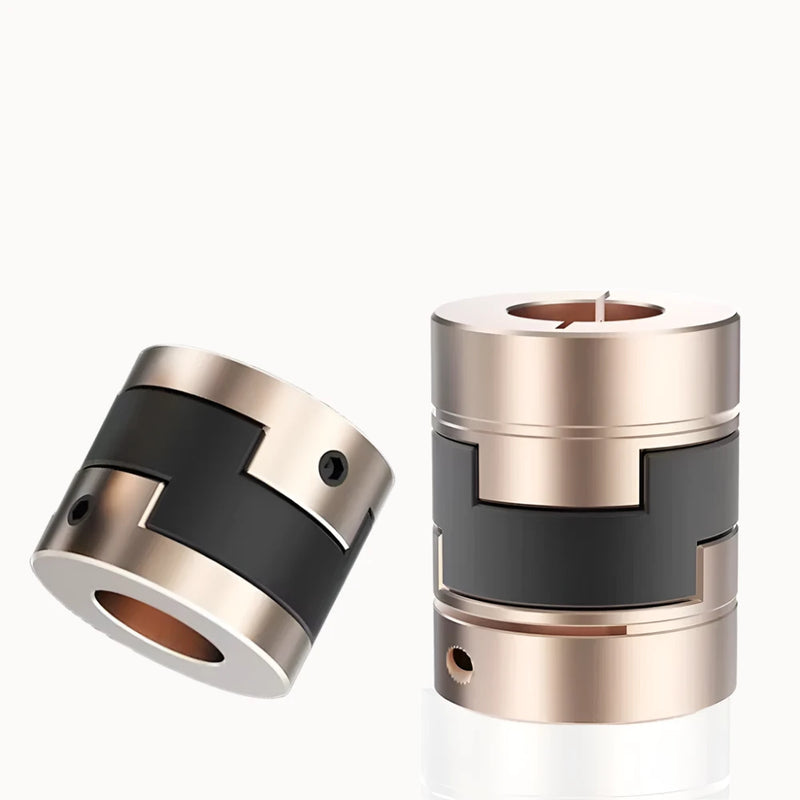

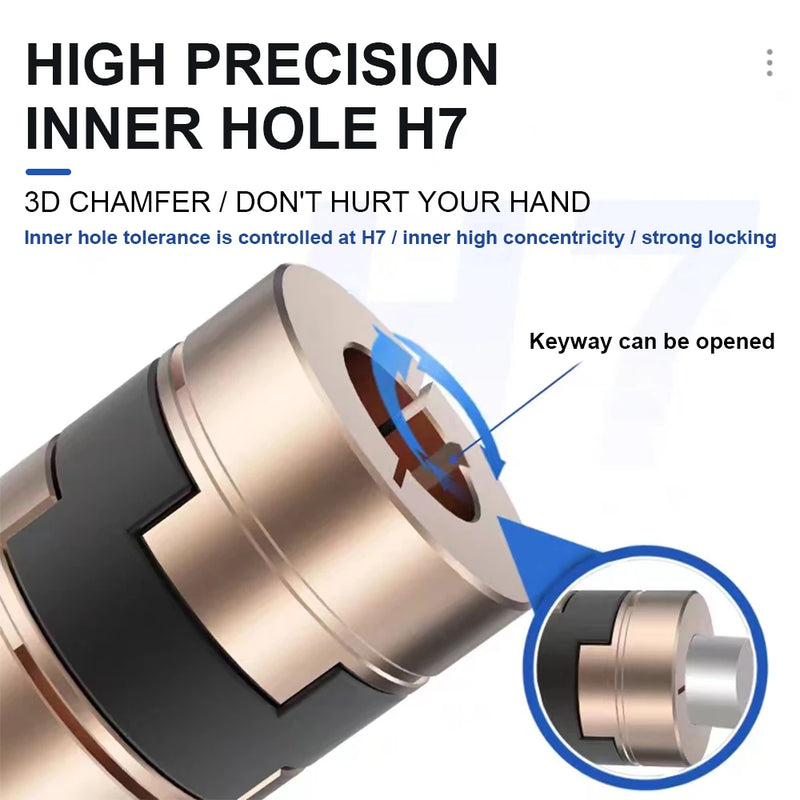

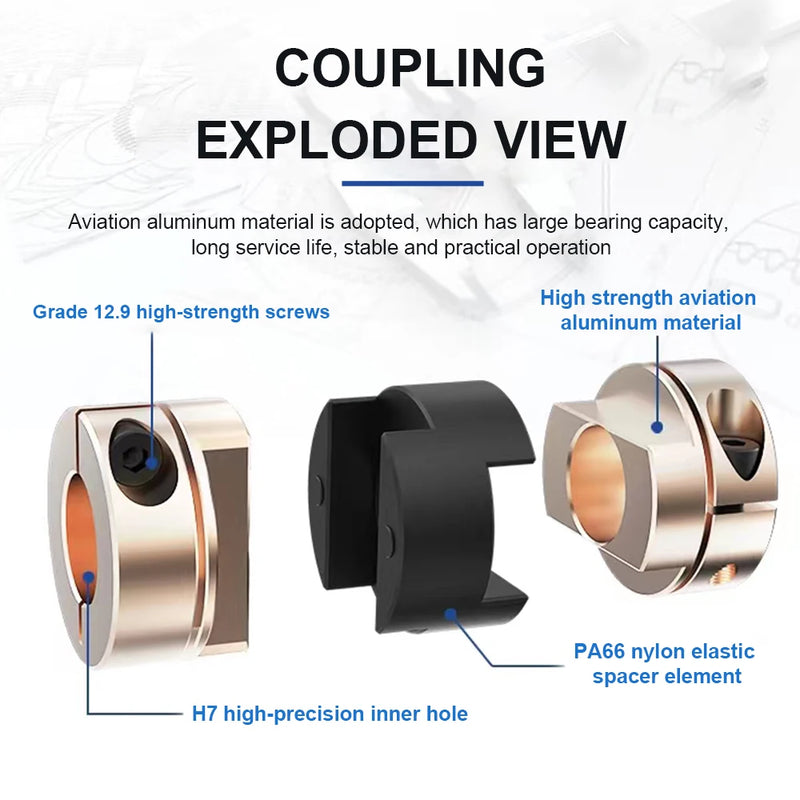

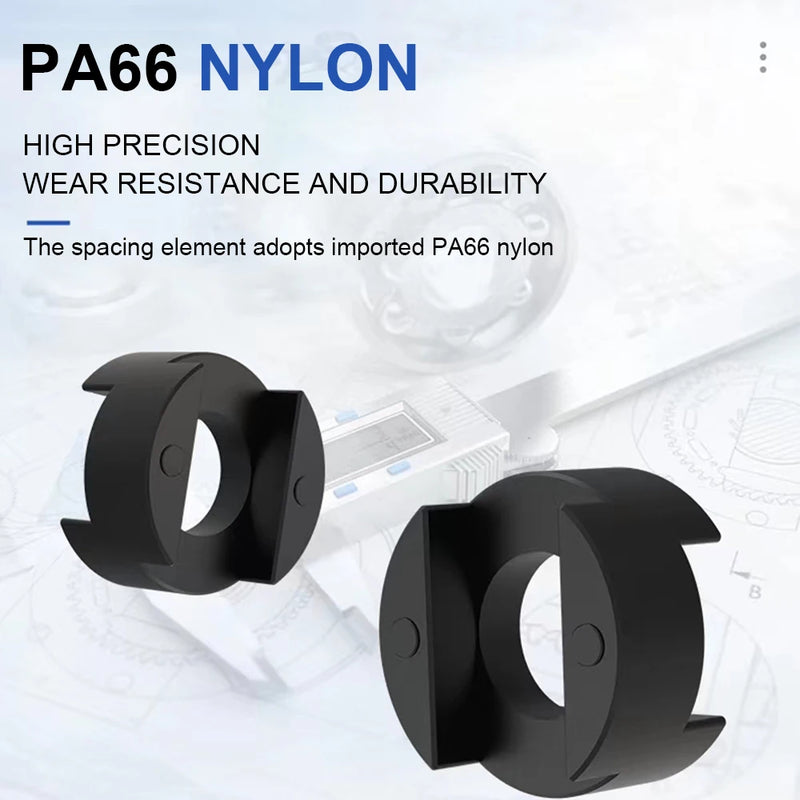

LZ-B-D32L45 Flexible Shaft Coupler Oldham

1set customize fee

shaft diameter

keyway width

keyway depth

tolarance

0.5usd for LD/LF/LB/LE
1usd for LL/LT /LR
2usd for LP (line cutting)
No customization for LS series
Customization link

10-12mm

4mm

1.8mm

0.1mm

12.7-17mm

5mm

2.3mm

18-22mm

6mm

2.8mm

23-30mm

8mm

3.3mm

0.2mm

31-38mm

10mm

3.3mm

39-44mm

12mm

3.3mm

45-50mm

14mm

3.Smm

51-58mm

16mm

4.3mm

59-65mm

18mm

4.4mm

Model

D
(mm)

L
(mm)

D1-D2
(mm)

M

L1
(mm)

L2
(mm)

L3
(mm)

Screw fasten
torque
(n.m)

LZ-B-D16L30

16

30

4-8

M2.5

10

14

4

1.1

LZ-B-D20L33

20

33

5-10

M3

12

14

4

2.1

LZ-B-D25L39

25

39

6-14

M3

15

17.5

4.5

2.1

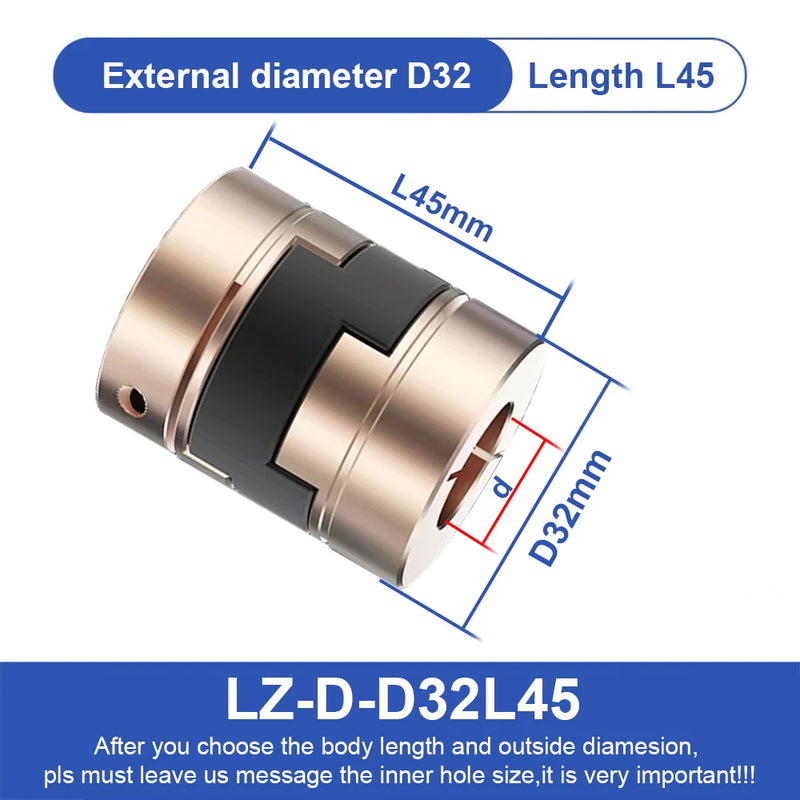

LZ-B-D32L45

32

45

8-16

M4

20

20

5

4.9

LZ-B-D40L50

40

50

10-20

M5

20

22.5

6

10

LZ-B-D50L58

50

58

12-25

M6

22

26

7

17

LZ-B-D63L71

63

71

3-8

M8

26

32

9

44

LZ-D-D16L18

16

18

4-8

M3

10

8

3.5

1.1

LZ-D-D20L23

20

23

5-10

M4

12

10

5.5

2.1

LZ-D-D25L28

25

28

6-14

M4

15

12

6.5

2.1

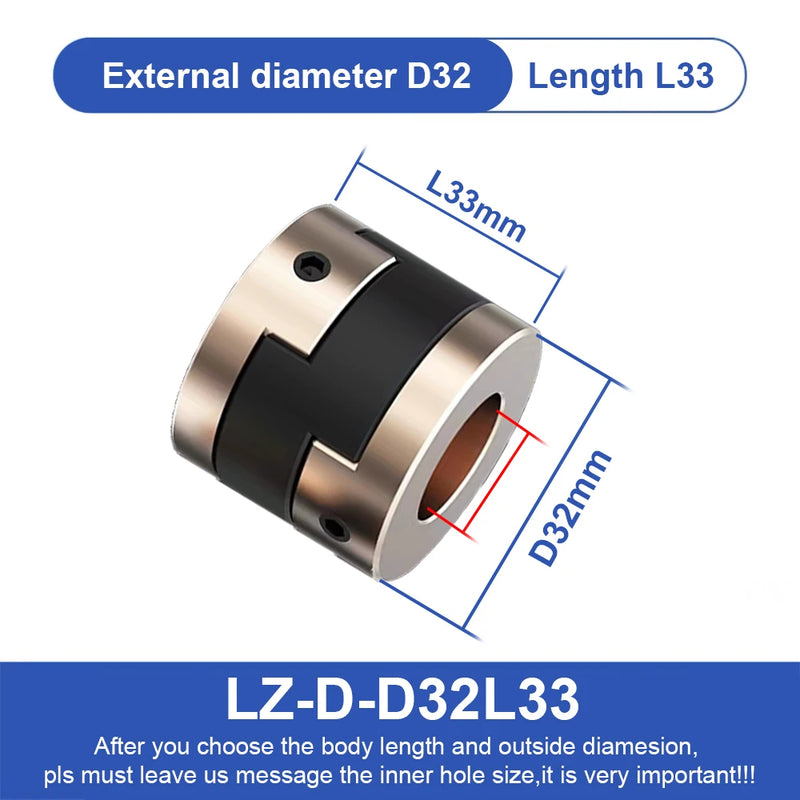

LZ-D-D32L33

32

33

8-16

M5

20

13

5.5

4.9

LZ-D-D40L35

40

35

10-20

M6

20

14.5

7

10

LZ-D-D50L38

50

38

12-25

M6

22

15.5

7

17

LZ-D-D63L47

63

47

14-32

M8

26

20

8

44
