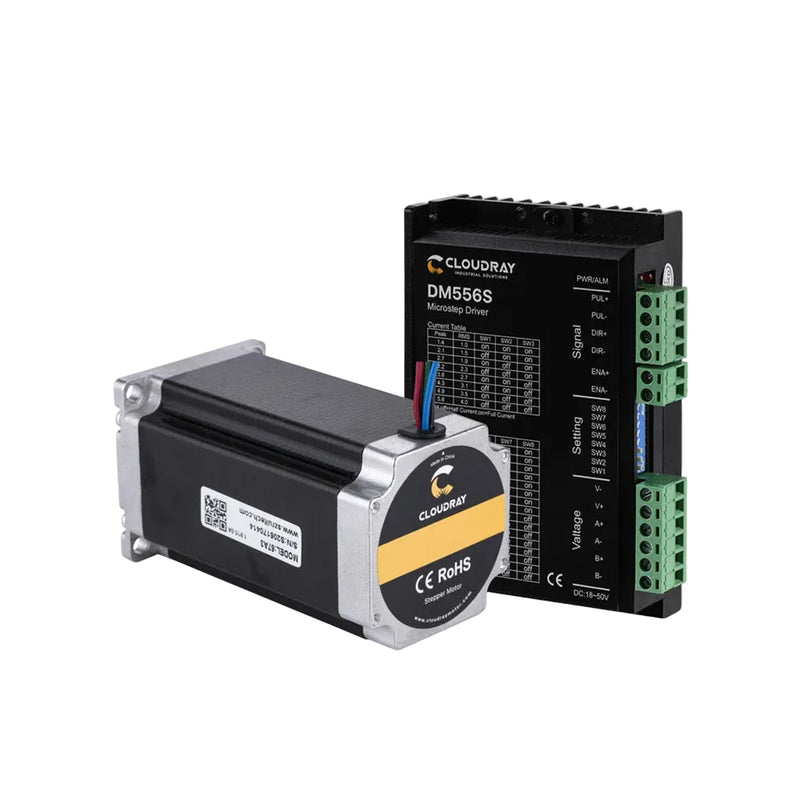

Cloudray NEMA 23 Stepper Motor Kit 3.0N.m 5.0A DM556S CNC
Cloudray NEMA 23 stepper motor kit with DM556S driver is designed for powerful and precise motion control in CNC routers, engraving machines, milling systems, and industrial automation applications. The 2-phase hybrid stepper motor delivers strong torque output and stable positioning even under demanding load conditions.
With a holding torque of 3.0N.m and rated current of 5.0A per phase, this motor provides reliable and consistent performance for heavy-duty CNC operations. The 1.8° ±5% step angle ensures accurate positioning and smooth motion control.

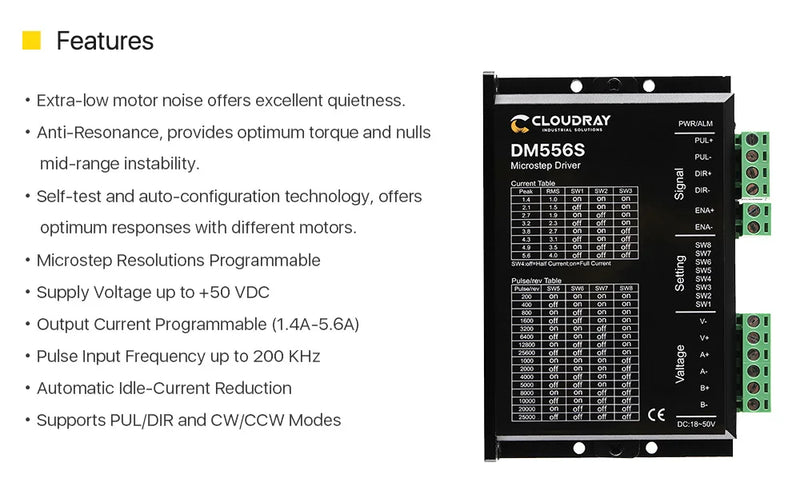

The included DM556S digital microstep driver supports stable operation, programmable current control, and anti-resonance technology for improved torque stability and reduced vibration.
Key Features
• High-torque 3.0N.m NEMA 23 hybrid motor
• 5.0A per phase for demanding applications
• DM556S digital microstep driver included
• Accurate 1.8° ±5% step angle
• Stable open loop control system
• Suitable for CNC routers and milling machines
• CCC, CE and ROHS certified
Technical Specifications

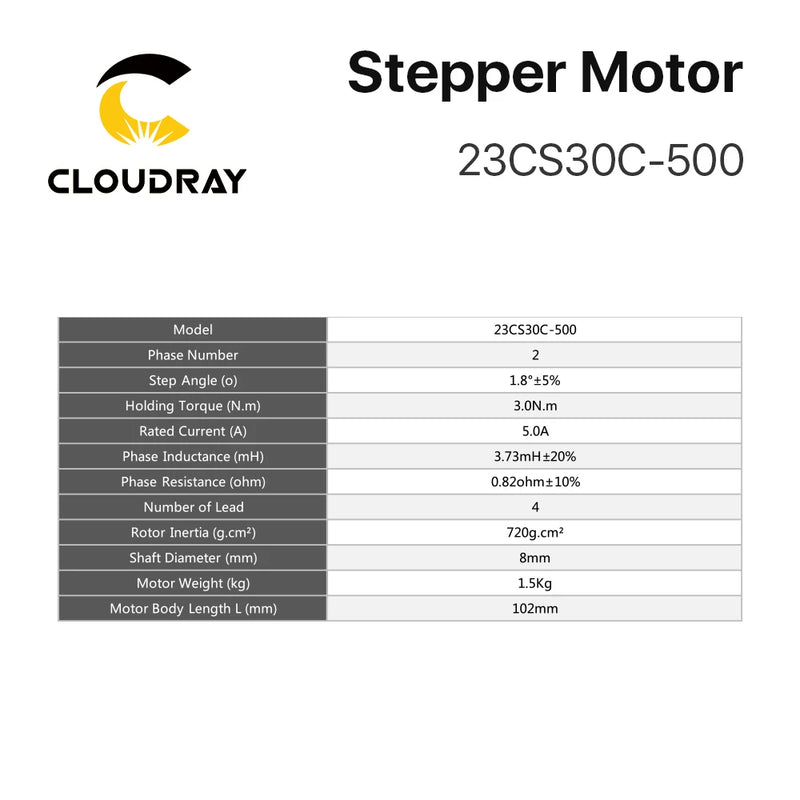

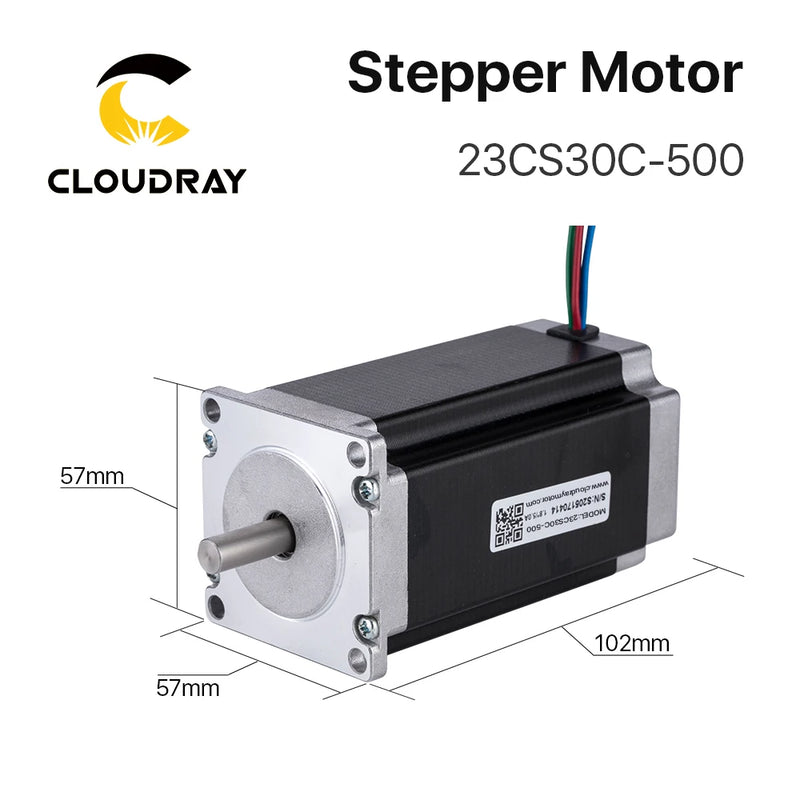

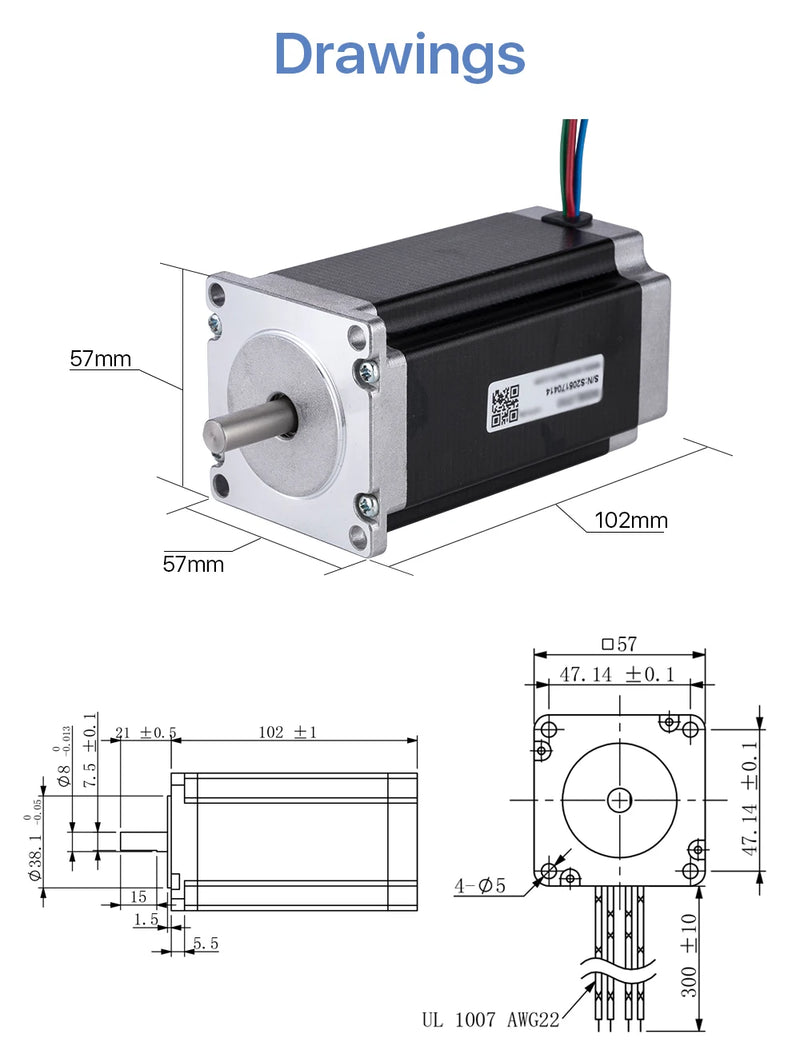

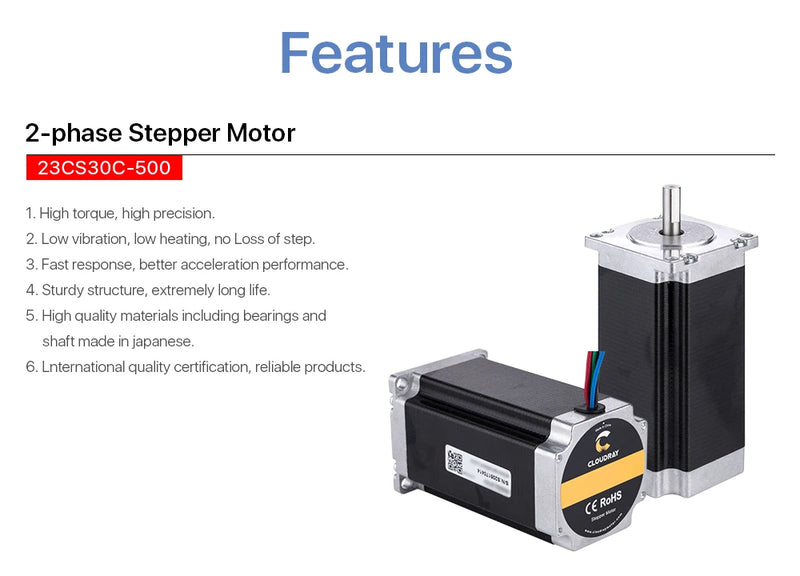

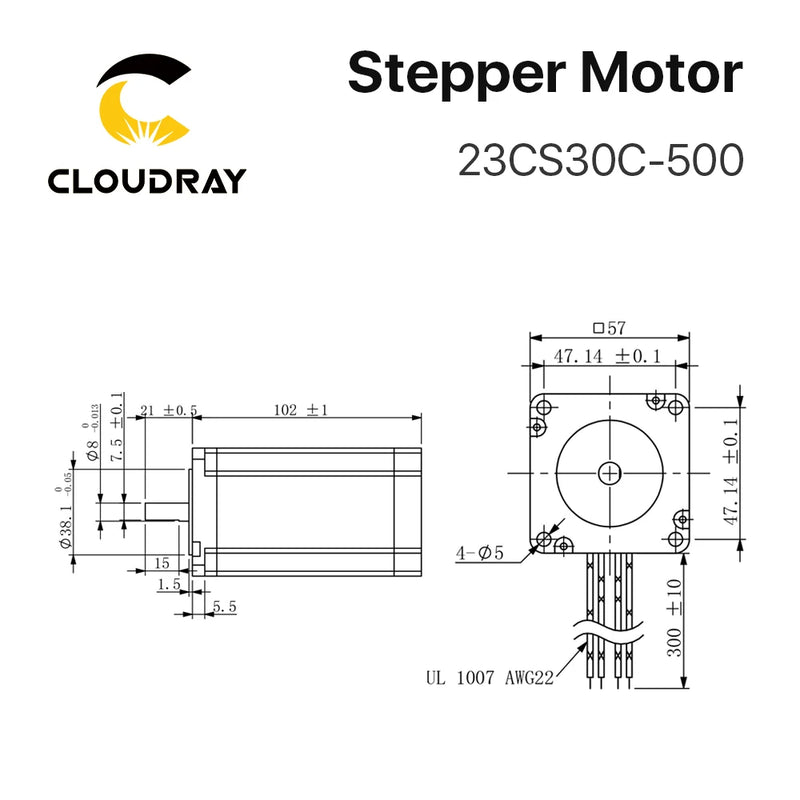

Stepper Motor – 23CS30C-500
| Parameter | Specification |
|---|---|
| Holding Torque | 3.0N.m |
| Current / Phase | 5.0A |
| Phase | 2 |
| Step Angle | 1.8° ±5% |
| Type | Hybrid |
| Power Supply | DC |
| Certification | CCC, ROHS, CE |
| High-concern Chemicals | None |
| Origin | Mainland China |

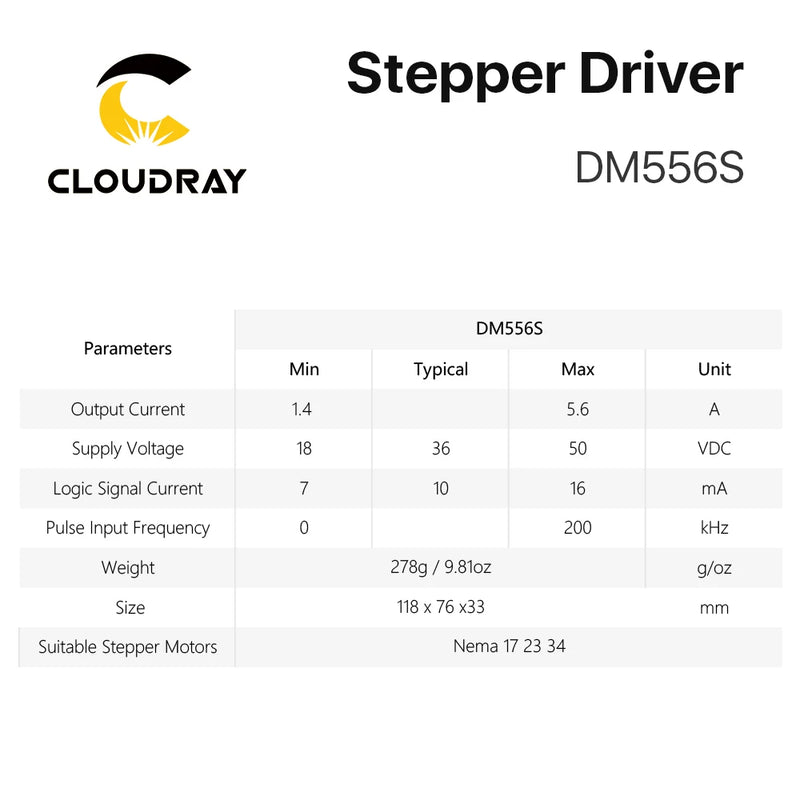

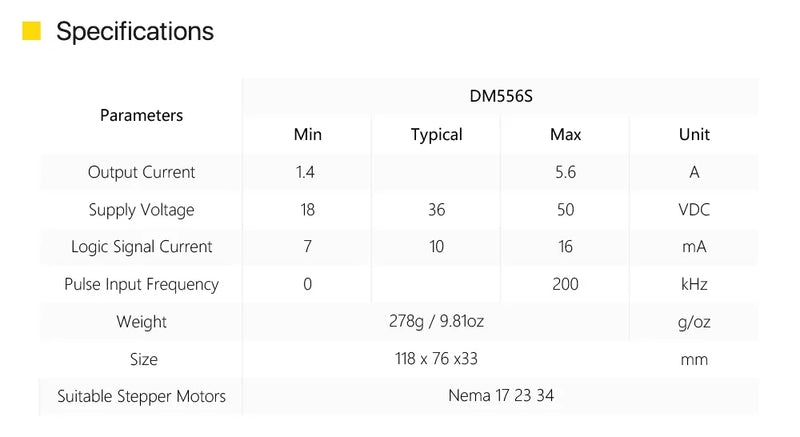

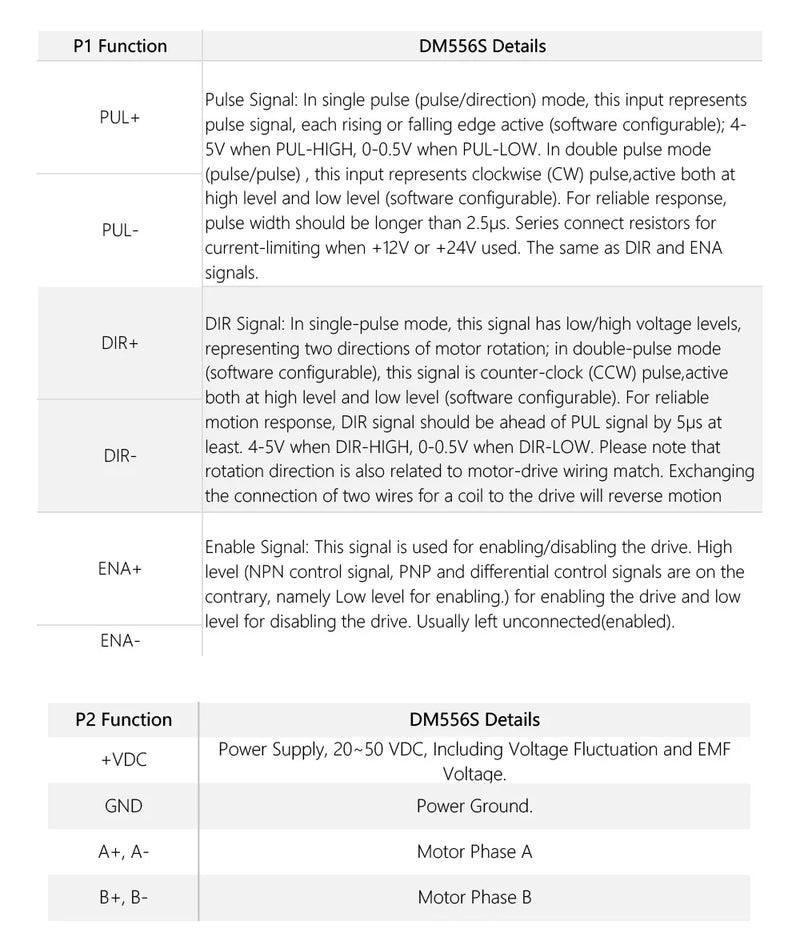

Stepper Driver – DM556S
| Parameter | Specification |
|---|---|
| Model | DM556S |
| Control Type | Open Loop |
Benefits
• Strong torque output for heavy CNC systems
• Precise and repeatable positioning
• Smooth motion with reduced vibration
• Reliable long-term industrial performance
• Professional solution for CNC and automation
