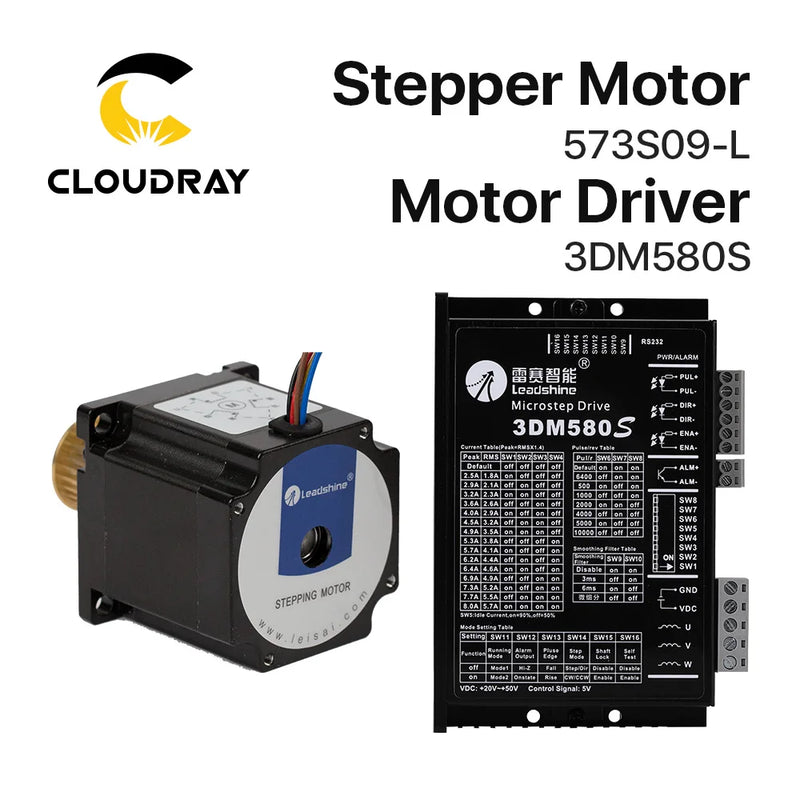

Cloudray Leadshine NEMA 23 3-Phase Stepper Motor Kit 0.9–1.3N.m 3DM580S
Cloudray Leadshine NEMA 23 3-phase stepper motor kit with 3DM580S digital driver is designed for smooth, precise, and high-efficiency motion control in CNC routers, engraving machines, and industrial automation systems. The advanced 3-phase hybrid motor technology delivers improved torque stability, reduced vibration, and smoother rotation compared to standard 2-phase motors.
Available in two torque versions (0.9N.m and 1.5N.m), this kit provides reliable positioning accuracy and stable performance across a wide speed range. The 1.2° step angle ensures enhanced resolution and precision for detailed machining and positioning tasks.

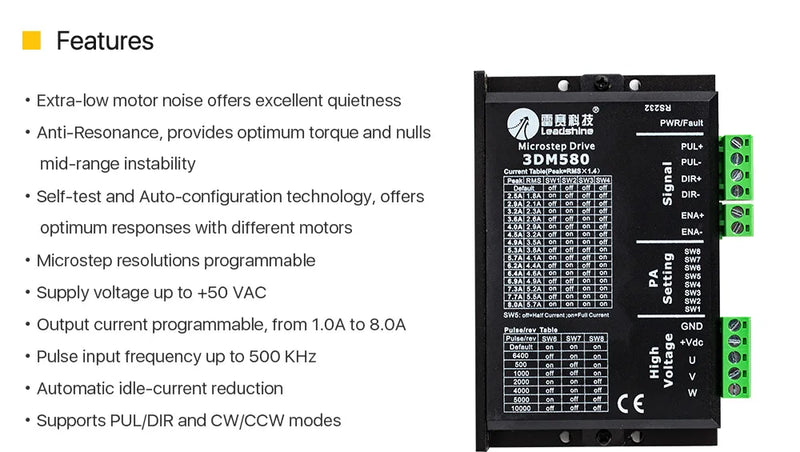

The included 3DM580S microstep driver supports programmable current control and advanced anti-resonance technology for optimized torque output and smooth high-speed operation.
Key Features
• 3-phase hybrid NEMA 23 stepper motor
• Available torque: 0.9N.m or 1.5N.m
• 3DM580S digital microstep driver included
• High-resolution 1.2° step angle
• Reduced vibration and smoother rotation
• Improved mid-range torque performance
• CE certified
• Suitable for CNC and automation systems
Technical Specifications

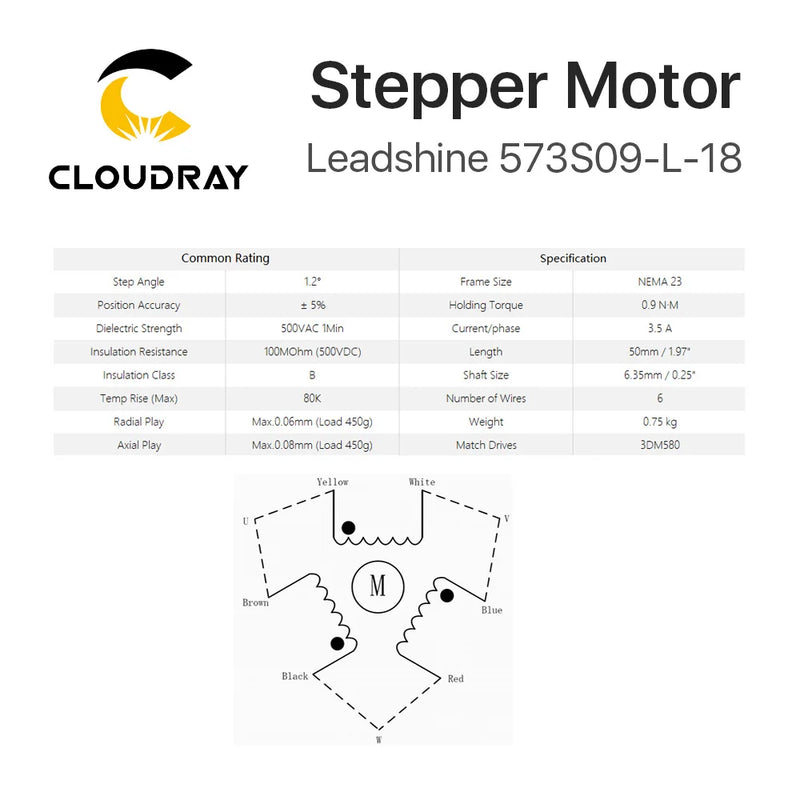

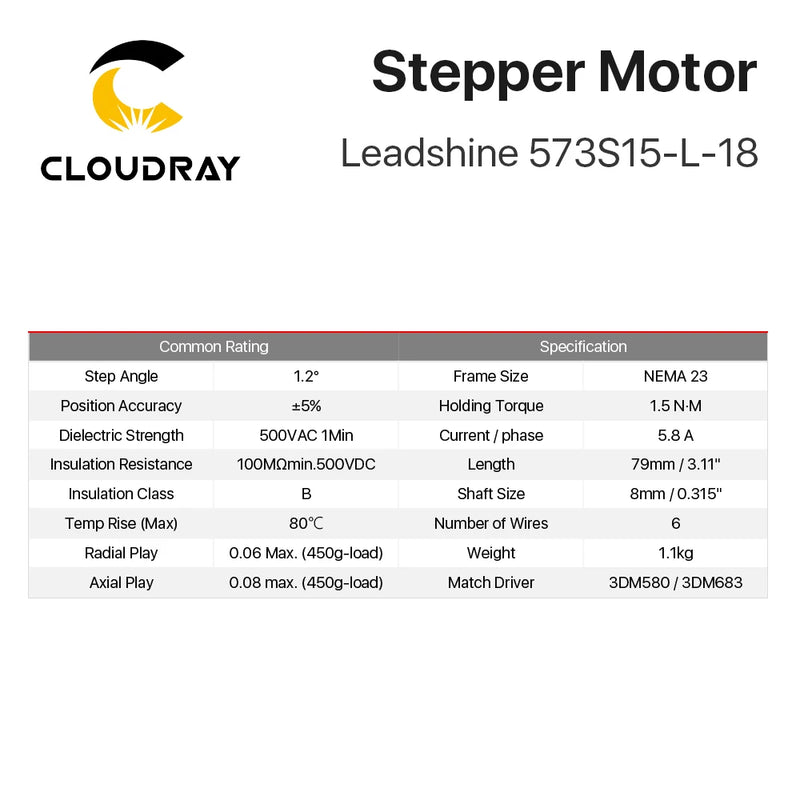

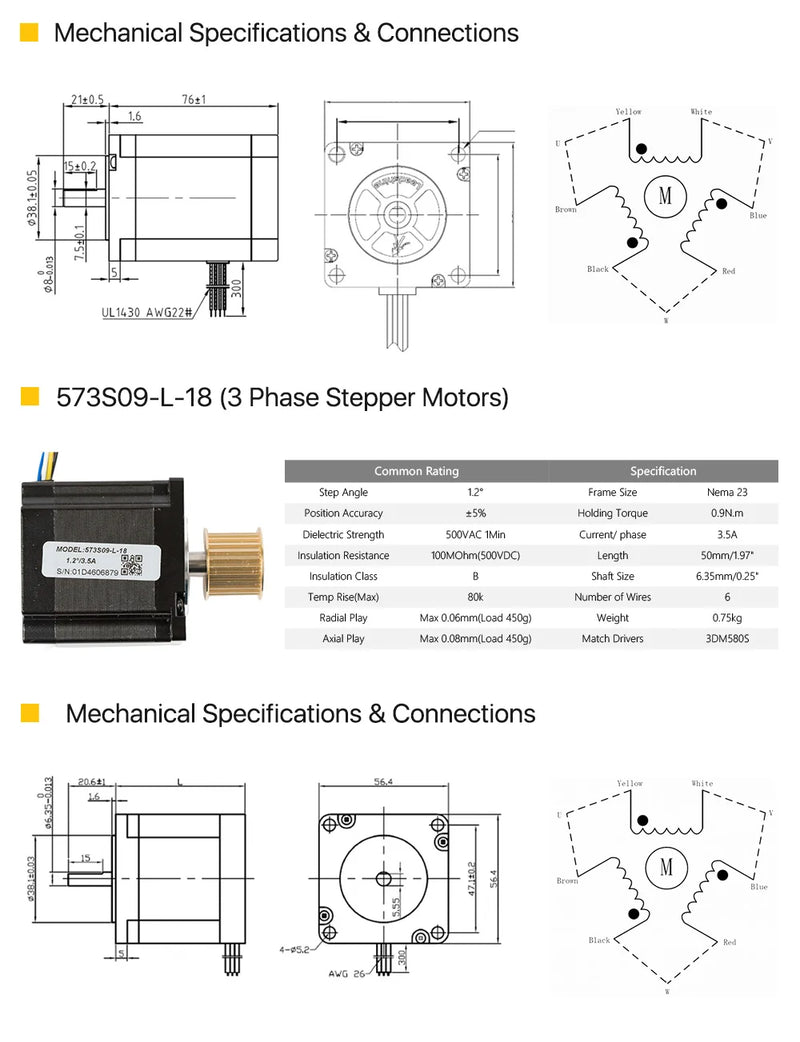

Stepper Motor – 573S09-L-18 / 573S15-L-18
| Parameter | Specification |
|---|---|
| Holding Torque | 0.9N.m (573S09) / 1.5N.m (573S15) |
| Current / Phase | 3.5A |
| Phase | 3 |
| Step Angle | 1.2° |
| Type | Hybrid |
| High-concern Chemicals | None |

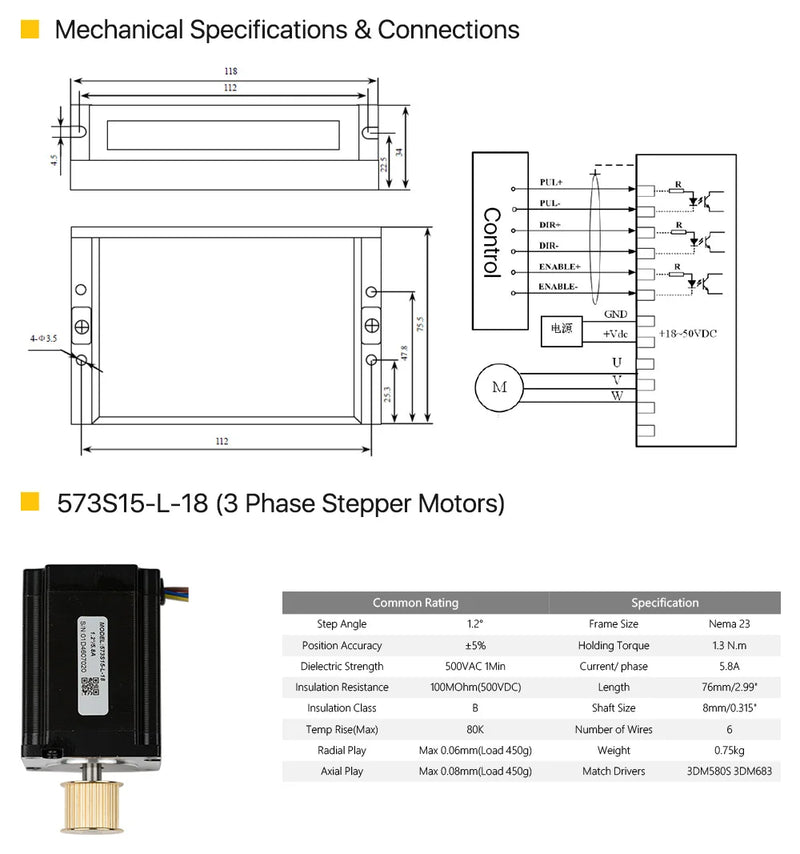

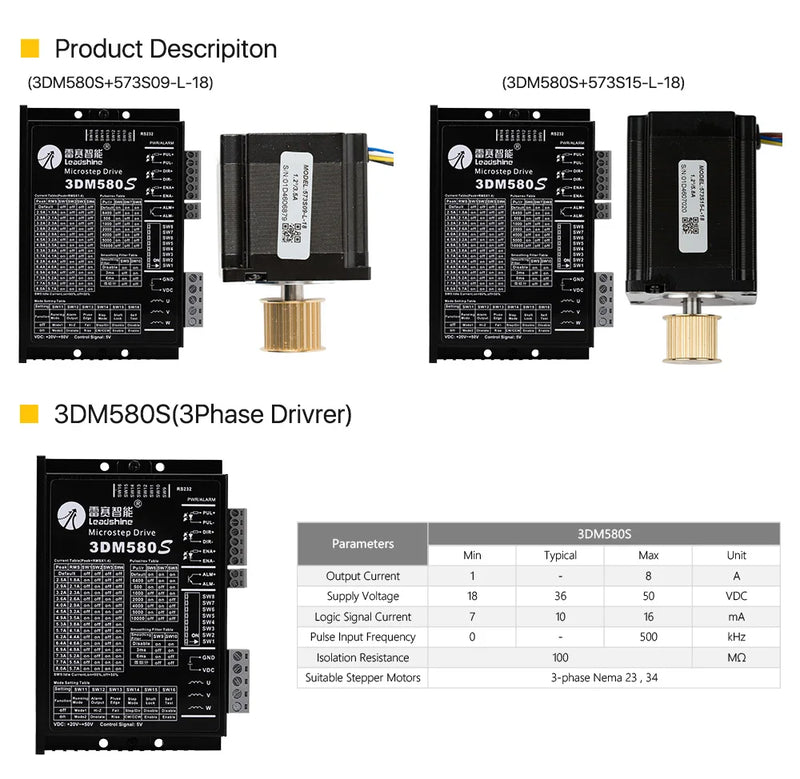

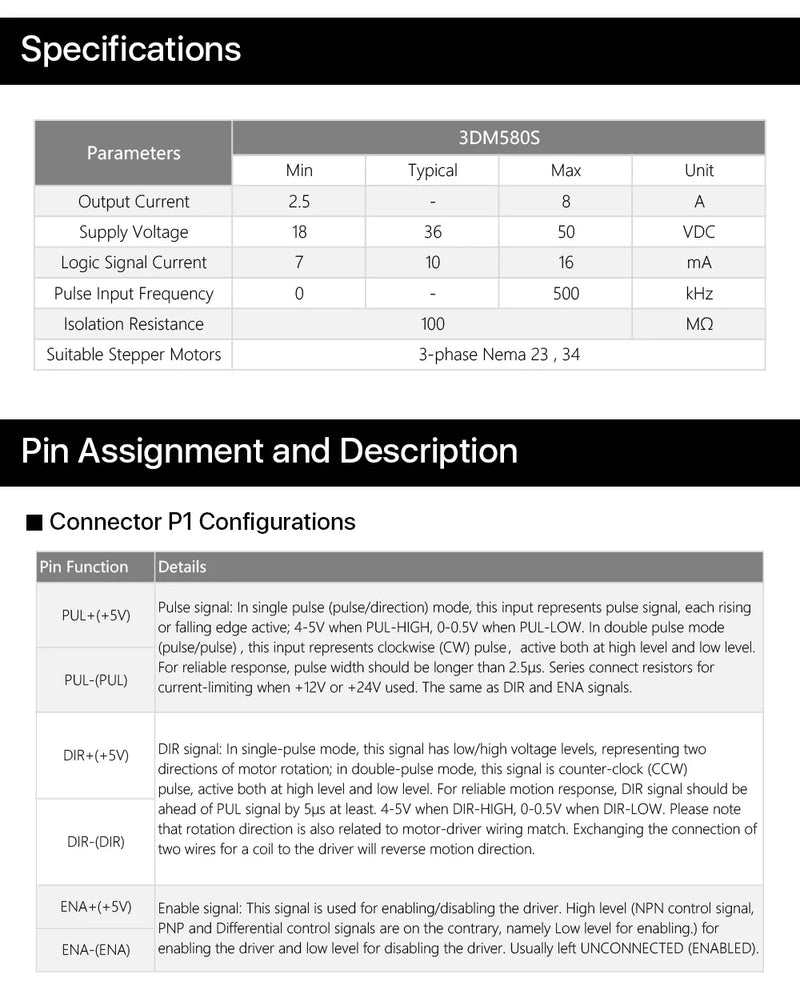

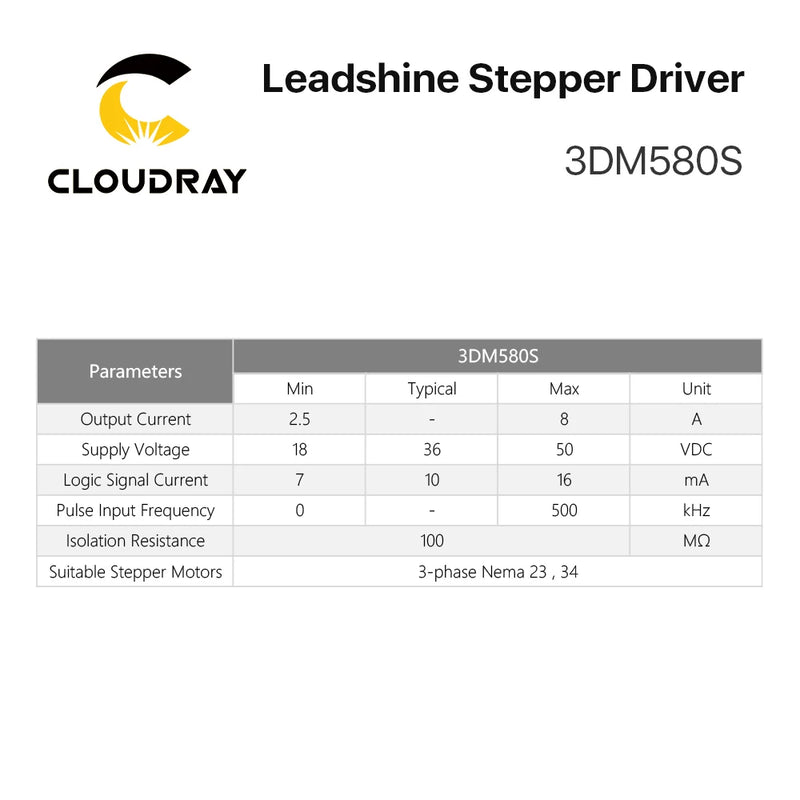

Stepper Driver – 3DM580S
| Parameter | Specification |
|---|---|
| Model | 3DM580S |
| Control Type | Digital Microstep |
| Certification | CE |
Benefits
• Smoother motion compared to 2-phase motors
• Higher precision thanks to 1.2° step angle
• Stable torque output across speed range
• Reduced noise and vibration
• Reliable performance for professional CNC systems
