ZK-PP2K Cycle Delay Drive Module PWM Motor Governor Frequency Duty
Description:
Enhance your projects with the ZK-PP2K Cycle Delay Drive Module, a high-configuration PWM pulse generator built for versatility and precision. Designed to control a variety of loads like LEDs, motors, and solenoid valves, this module features dual operating modes (PWM and Pulse) and offers a wide range of frequency and duty cycle adjustments. Perfect for both professional and DIY applications, it guarantees reliable performance and precise control for tasks like LED brightness adjustment, motor speed regulation, solenoid valve operation, and more.
Key Features:
- Direct Load Driving: Capable of directly controlling LEDs, motors, solenoid valves, and other loads.
-

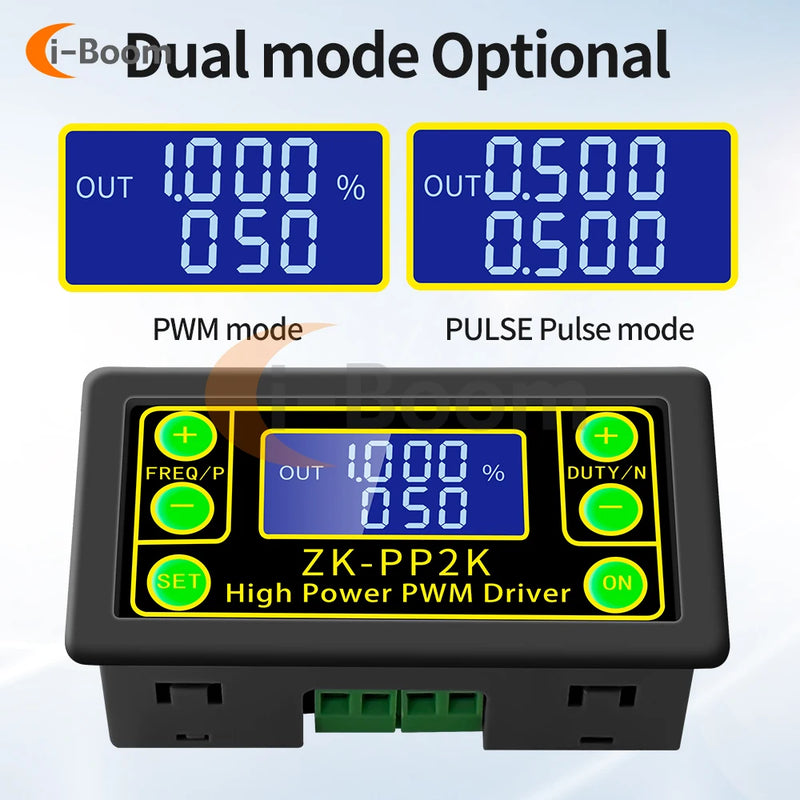

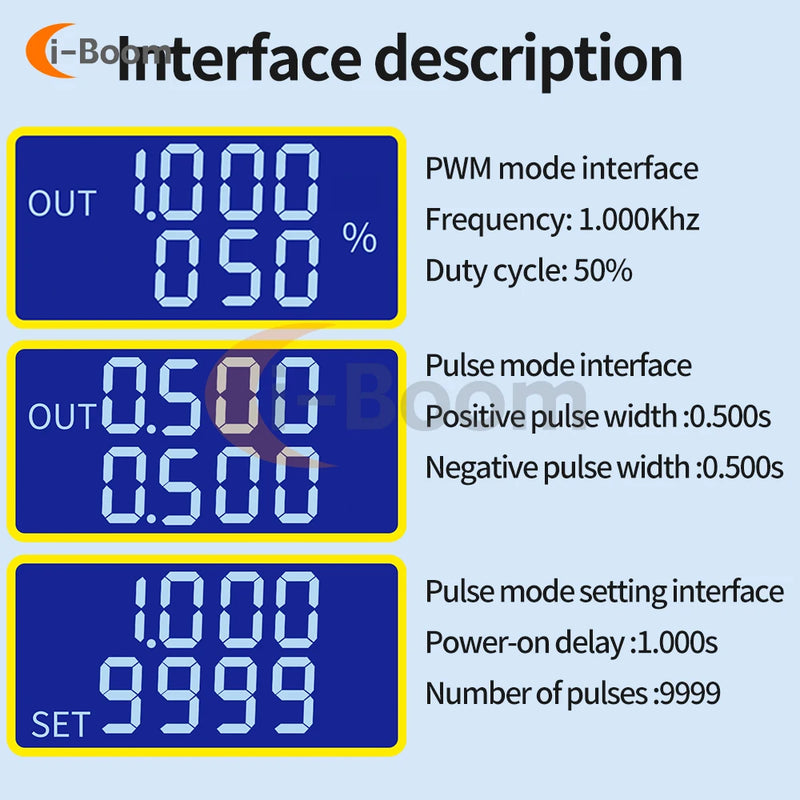

Dual Modes:
- PWM Mode: Provides continuous frequency and duty cycle control.
- Pulse Mode: Adjusts positive pulse width, negative pulse width, power-on delay, and switching frequency.
- Start/Stop Button: Convenient control with an integrated start/stop button.
- Wide Voltage Input: Operates within a voltage range of 3.3-30V using 5.08mm terminal wiring.
- High-Quality Construction: Made with premium materials for enhanced durability.
Product Parameters:
| Parameter | Details |
|---|---|
| Working Voltage | 3.3-30V (Ensure correct polarity) |
| Frequency Range | 1Hz to 150kHz (±2% accuracy) |
| Duty Cycle Range | 0-100%, adjustable in 1% increments |
| Number of Pulses | 1-9999 or infinite ('----' for infinity) |
| Delay Output Time | 0.000s to 9999s (min. settable time: 1ms) |
| Positive/Negative Pulse Width | 0.000s to 9999s (min. settable time: 1ms) |
| Output Carrying Capacity | <8A (MOS switch) |
| Output Amplitude | Equal to power supply voltage |
Applications:
- LED Brightness Adjustment: Fine-tune brightness using adjustable frequency and duty cycle.
- Motor Speed Control: Optimize motor speed through precise frequency and duty cycle adjustments.
- Solenoid Valve Operation: Automate solenoid valve control with adjustable cycling, delay output, and settable cycle counts.
- Equipment Testing: Perform switch fatigue tests, voltage drop tests, and other reliability checks.
- Delayed Load Start: Set a delay time to control when the load starts, either continuously or intermittently.
Package Includes:
- 1 x PWM Generator
