GT2 / 2GT Timing Pulley with D Bore – Aluminum Synchronous Pulley, 20T–28T, for 3D Printers & Motion Systems
Product Description
The D Hole GT2 / 2GT Timing Pulley is a precision aluminum synchronous pulley designed for use in timing and motion systems such as 3D printers, CNC machines, and other mechanical automation applications.

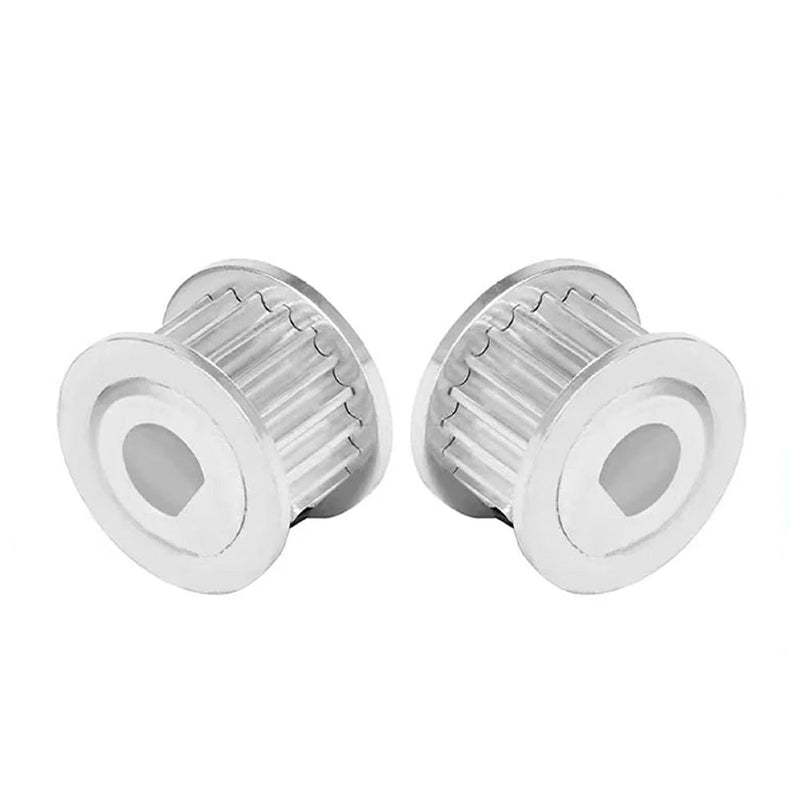

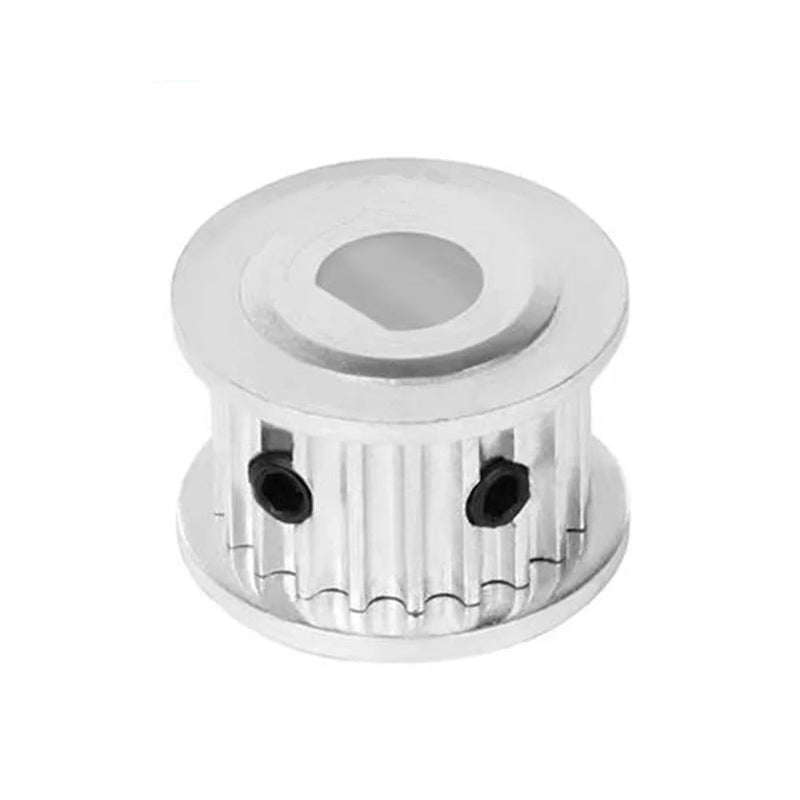

This pulley features a D-shaped bore, which provides better torque transmission compared to standard round bore designs with set screws. Thanks to this construction, the pulley is more resistant to slipping and ensures a more stable connection between the shaft and the pulley.
The pulley is manufactured from aluminum alloy, offering a good balance between low weight and mechanical strength. The flange is made of galvanized iron, which helps maintain belt alignment during operation.
With a 2 mm tooth pitch (GT2 / 2GT) and multiple tooth count options, this timing pulley is suitable for precise positioning and smooth motion control.
Key Features
-
D-shaped bore for improved torque resistance
-
Reduced risk of slipping compared to round bore pulleys
-
GT2 / 2GT tooth profile with 2 mm pitch
-
Lightweight aluminum alloy body
-
Galvanized iron flange for belt stability
-
Suitable for 6 mm and 10 mm timing belts
Specifications
| Parameter | Specification |
|---|---|
| Product Name | D Hole 2GT / GT2 Timing Pulley |
| Type | Synchronous Timing Pulley (AF Type) |
| Material | Aluminum Alloy |
| Flange Material | Galvanized Iron |
| Surface Treatment | Untreated |
| Model Number | 2GT D AF type |
| Tooth Pitch | 2 mm |

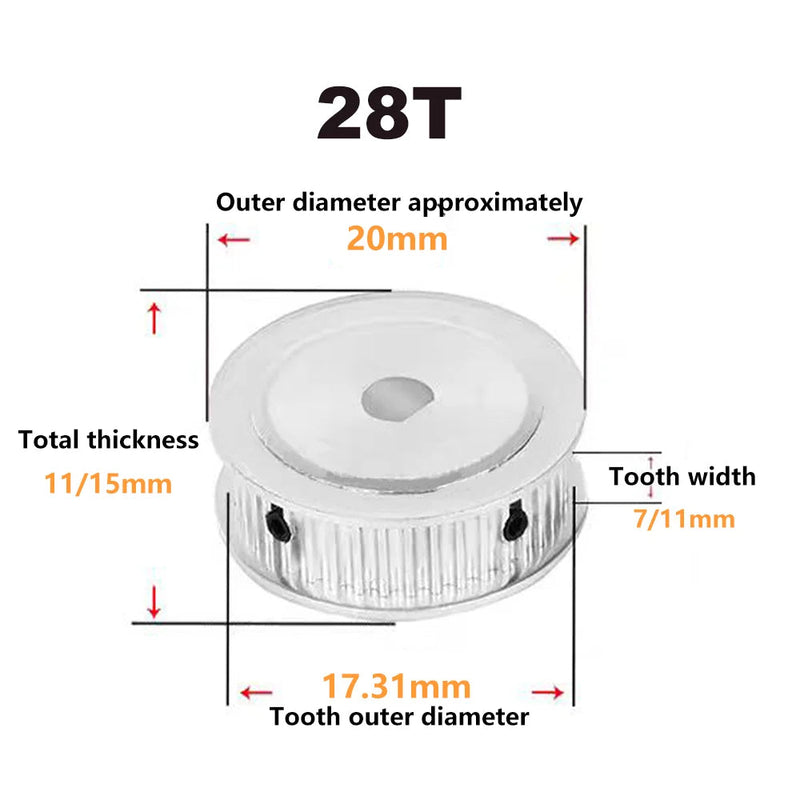

| Number of Teeth | 20T / 22T / 24T / 25T / 26T / 28T |
| Bore Type | D-shaped bore |
| D Bore Sizes | 5 × 4.5 mm / 6 × 5.5 mm / 8 × 7 mm / 8 × 7.5 mm |
| Pulley Width | 7 mm / 11 mm |
| Suitable Belt Width | 6 mm / 10 mm |
| Bore Tolerance | 0.01 – 0.02 mm |
| Chemical Safety | No high-concern chemicals |
| Brand | None |
| Application | 3D printers, CNC, automation, motion systems |
