Cloudray Nema 24 Closed Loop Stepper Motor with Encoder – 3.0N.m

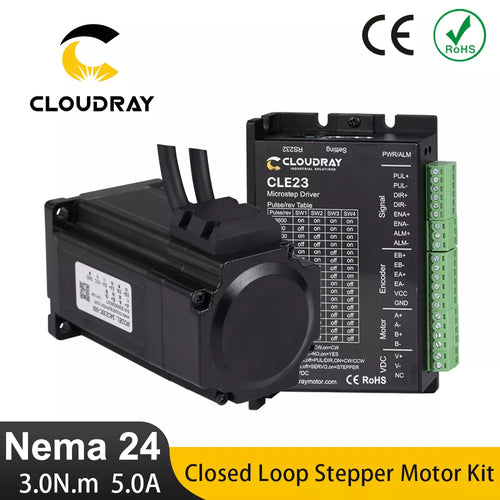

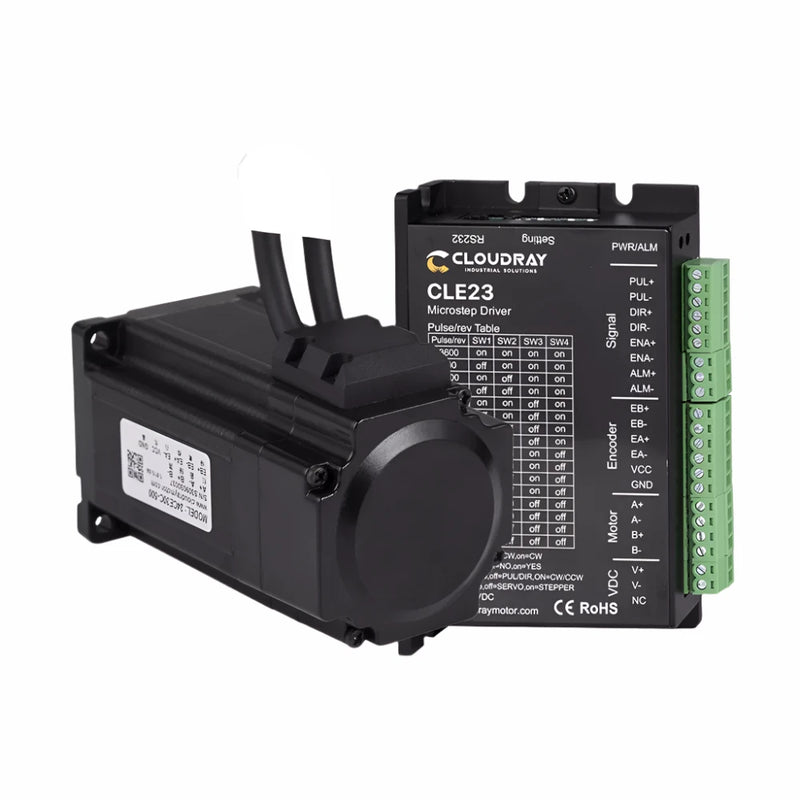

The Cloudray Nema 24 Closed Loop Stepper Motor (model 24CE30C-500) is designed for high-performance industrial automation and precision motion control. It features a holding torque of 3.0N.m and operates at 5.0A current, with a step angle of 1.8°. This motor includes an encoder for closed-loop feedback, ensuring real-time control and preventing step loss during operation. Paired with the CLE23 stepper driver, this system provides advanced servo vector control and debugging capabilities.

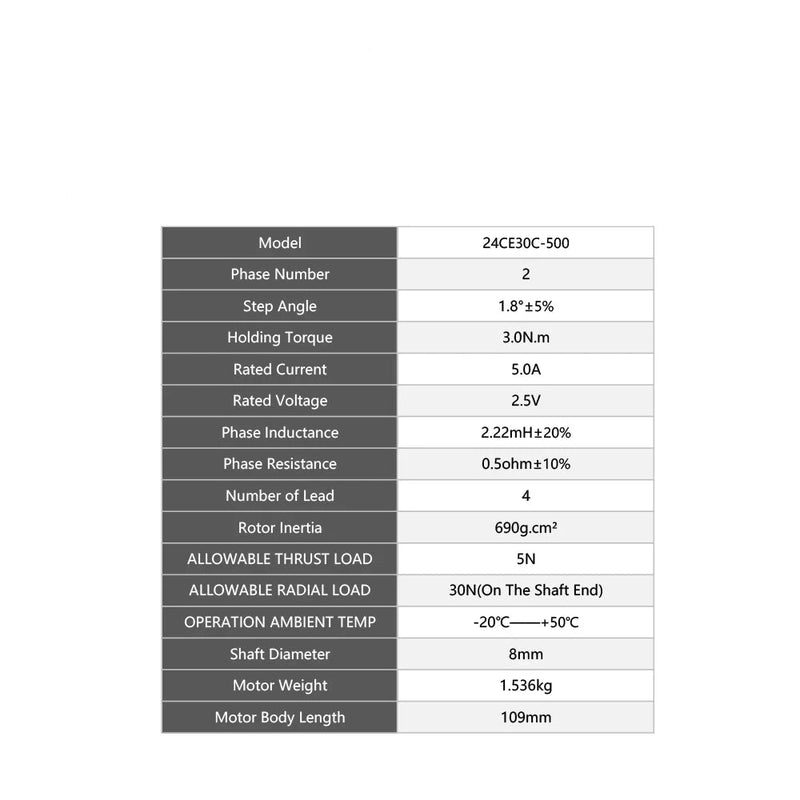

Stepper Motor Specifications (Model 24CE30C-500)
| Feature | Specification |
|---|---|
| Motor Type | Nema 24 Closed Loop Stepper Motor |
| Holding Torque | 3.0N.m (424 oz-in) |
| Rated Current | 5.0A |
| Rated Voltage | 2.5V |
| Step Angle | 1.8° ±5% |
| Phase Inductance | 2.22mH ±20% |
| Phase Resistance | 0.5Ω ±10% |
| Rotor Inertia | 690g.cm² |
| Number of Leads | 4 |
| Allowable Thrust Load | 5N |
| Allowable Radial Load | 30N (on shaft end) |
| Operating Temperature | -20°C to +50°C |

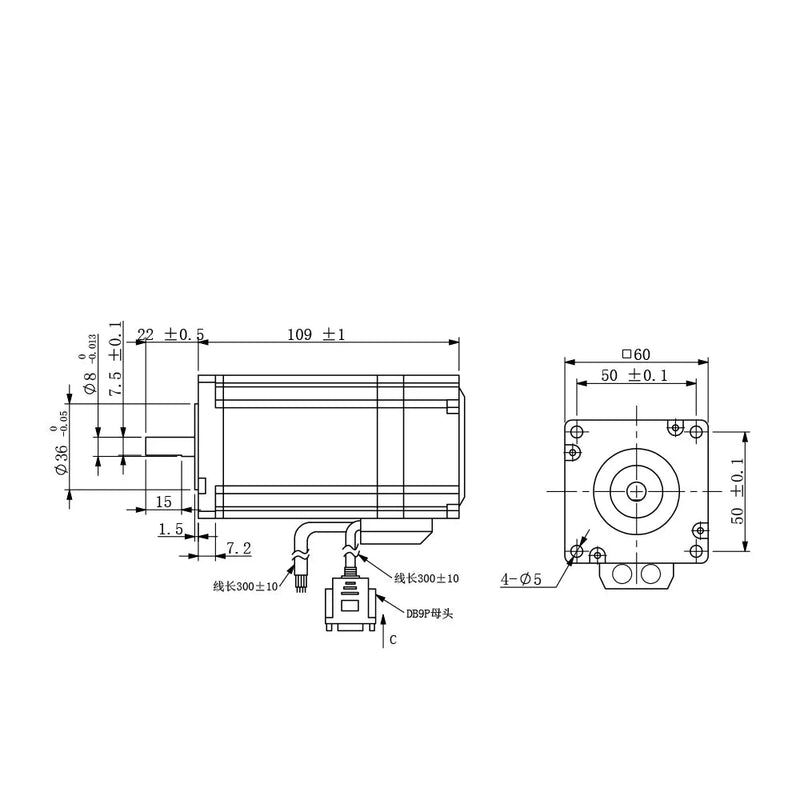

| Shaft Diameter | 8mm |
| Motor Weight | 1.536kg |

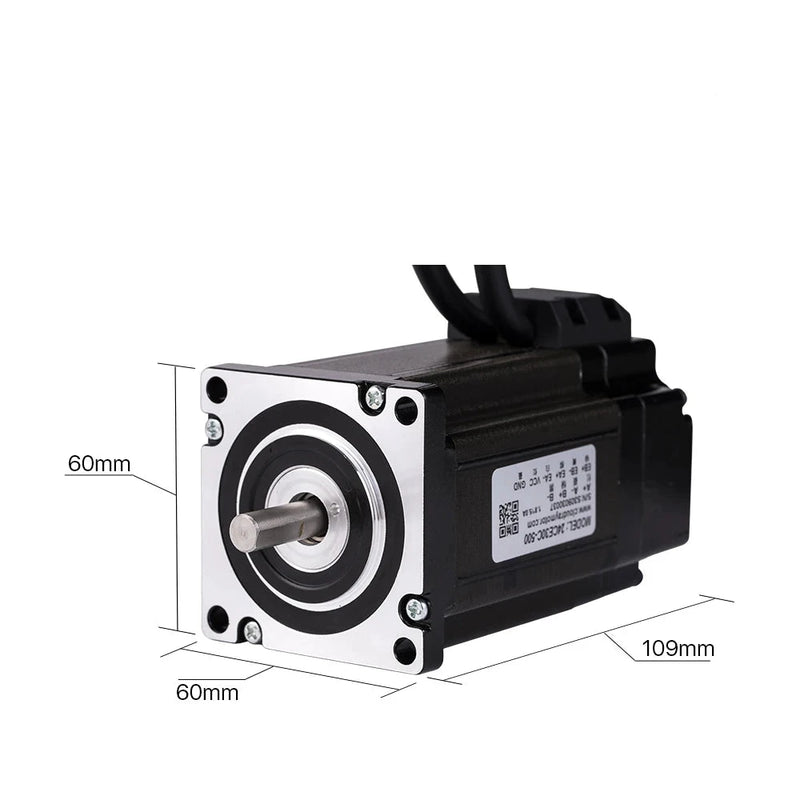

| Motor Body Length | 109mm |

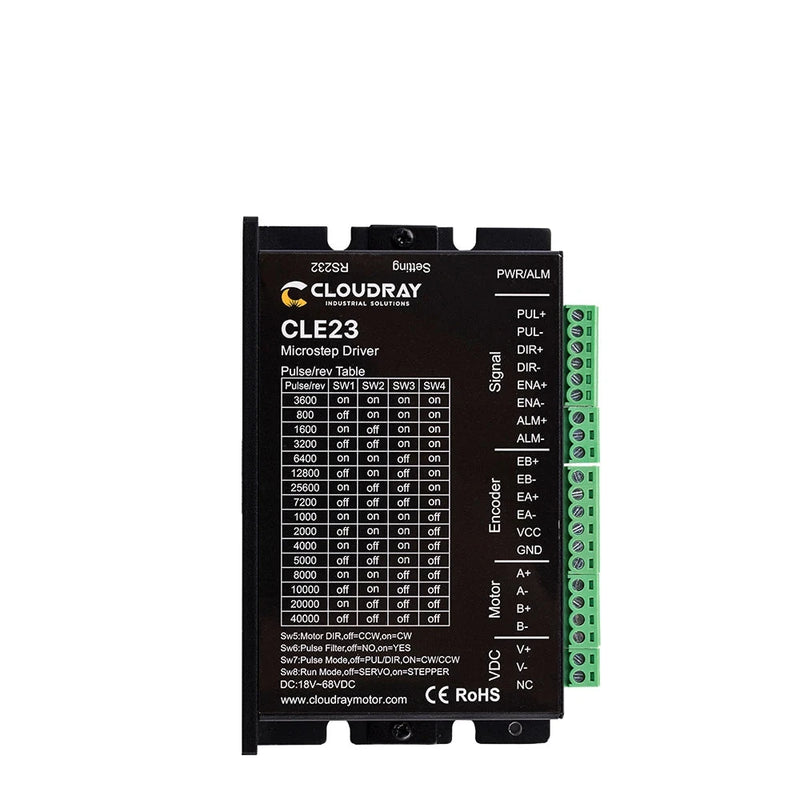

Stepper Driver Specifications (CLE23)
| Feature | Specification |
|---|---|
| Power Supply | 24-60V DC |
| Control Precision | 4000 Pulse/r |
| Pulse Mode | Direction & pulse, CW/CCW double pulse |
| Current Control | Servo vector control algorithm |
| Subdivision Settings | DIP switch, 16 choices or software |
| Speed Range | 1200-1500rpm, max 4000rpm |
| Resonance Suppression | Automatic calculation of resonance |
| PID Parameter Adjustment | Debugging software available |
| Pulse Filter | 2MHz digital signal filter |
| Alarm Output | Over current, over voltage, position error |
| Typical Applications | CNC machines, robotics, labeling, medical detectors, electronics assembly |
Key Features
- Closed Loop System: Real-time feedback from the encoder ensures precise motion control, eliminating step loss.
- High Torque: The 3.0N.m holding torque makes it ideal for demanding applications like CNC and industrial automation.
- Advanced Driver: The CLE23 driver offers servo vector control, precise current regulation, and resonance suppression for smoother operation.
- Durable and Robust: Designed for high-performance tasks, with a 109mm motor body length and 1.536kg weight, making it suitable for heavy-duty applications.
- Wide Application Range: Perfect for CNC machines, robotics, labeling machines, and automated production systems.
Applications
- CNC machines
- Robotics
- Industrial automation
- Medical devices
- Electronics assembly machines
