C Type V-Belt – Standard Rubber Belt, 22mm Width
Original price
€26,94
-
Original price
€31,49
Original price
€27,31
€26,94
-
€31,49
Current price
€27,31
C Type V-Belt – Standard Rubber Belt, 22mm Width, Multiple Pitch Lengths
The C Type V-Belt is designed to enhance the efficiency of power transmission in various machinery. Made from high-quality rubber, this standard V-belt offers superior flexibility, durability, and low-noise operation. With a width of 22 mm and a thickness of 14 mm, it comes in a range of pitch lengths from 2500 mm to 3000 mm, making it suitable for diverse mechanical systems. The belt’s simple structure ensures easy installation and maintenance while providing cushioning and vibration absorption for smooth transmission.

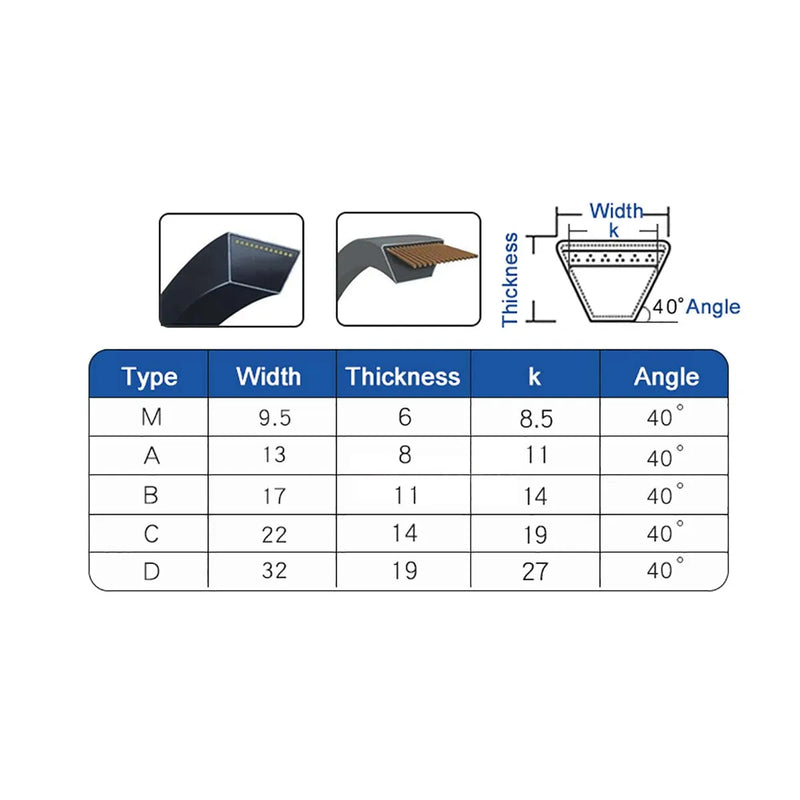

Technical Specifications
| Feature | Specification |
|---|---|
| Material | Rubber |
| Pitch Length Options | 2500 mm, 2550 mm, 2600 mm, 2650 mm, 2700 mm, 2750 mm, 2800 mm, 2850 mm, 2900 mm, 2950 mm, 3000 mm |

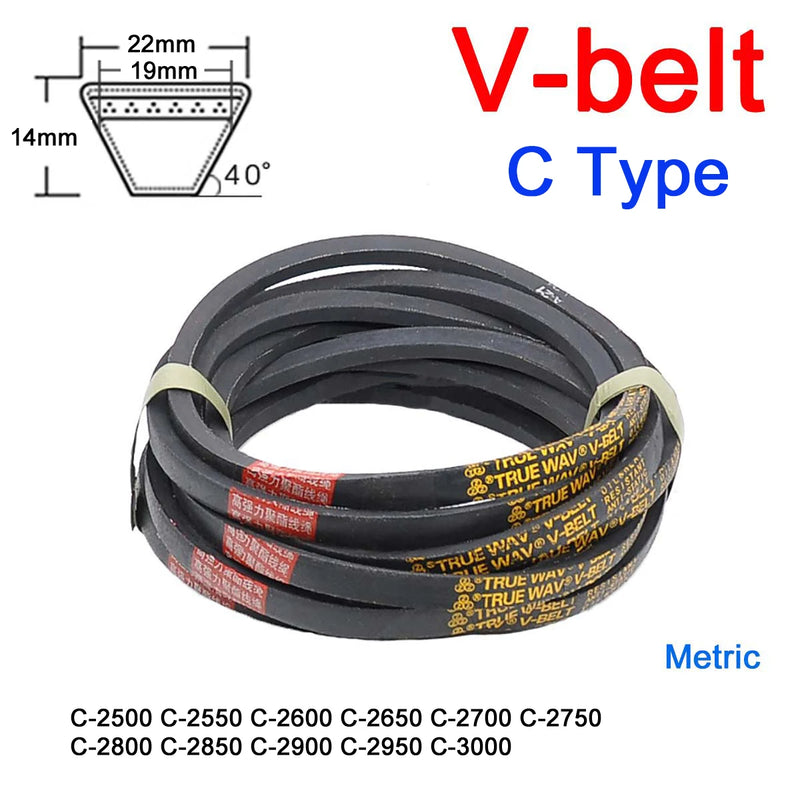

| Width | 22 mm |
| Thickness | 14 mm |
| Standard Parts | Yes, designed to fit various mechanical systems |
| Application | Industrial machinery, automotive systems, equipment requiring power transmission |
Features:
- Simple Structure: Easy to use and maintain.
- Smooth Transmission: Low-noise operation with built-in cushioning and vibration absorption.
- Overload Protection: Slips on the pulley during overload conditions to prevent damage to weaker components.
Keywords: C Type V-belt, rubber V-belt, 22mm V-belt, power transmission belt, standard V-belt, long pitch V-belt, industrial drive belt.
