HTD3M 24 Teeth Keyless Timing Pulley 24T HTD-3M Expansion Sleeve

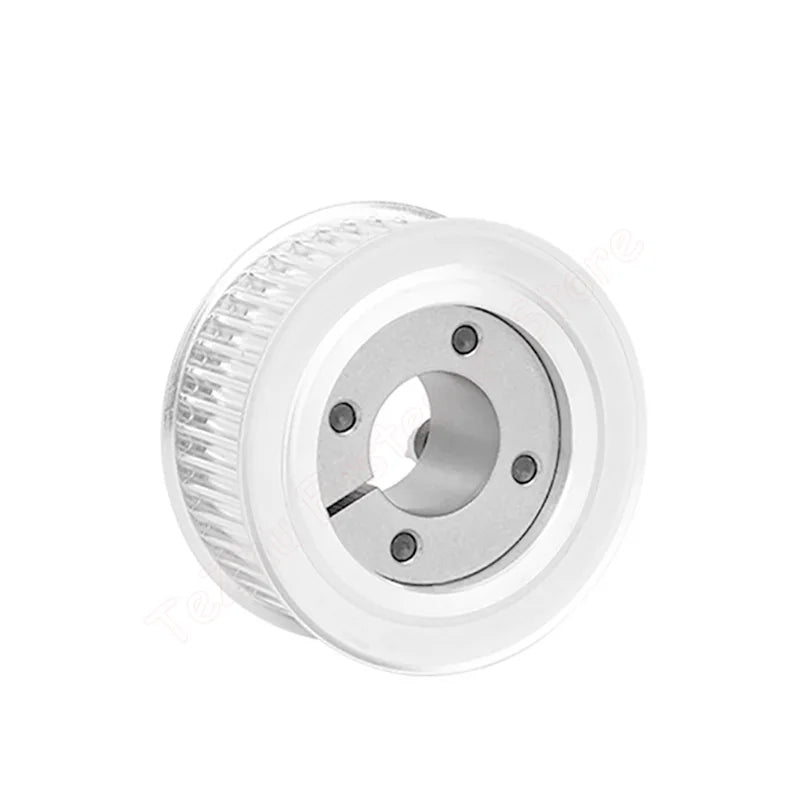

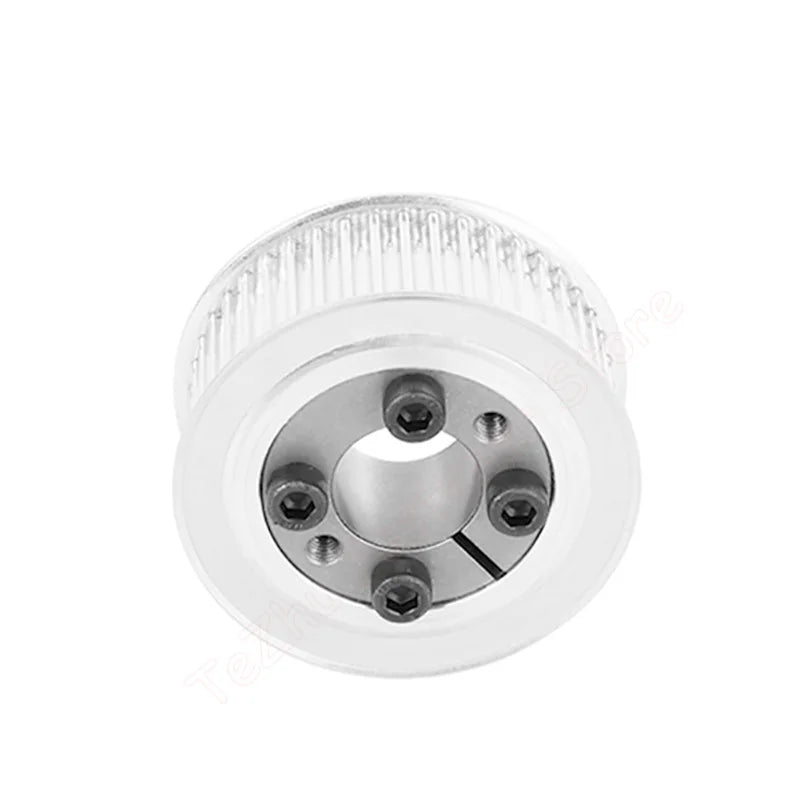

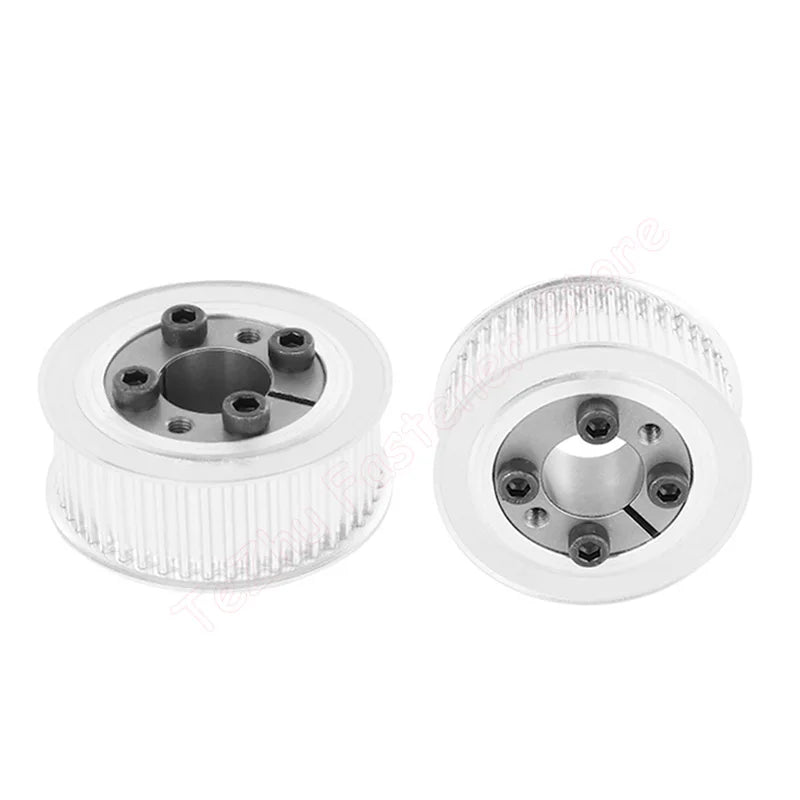

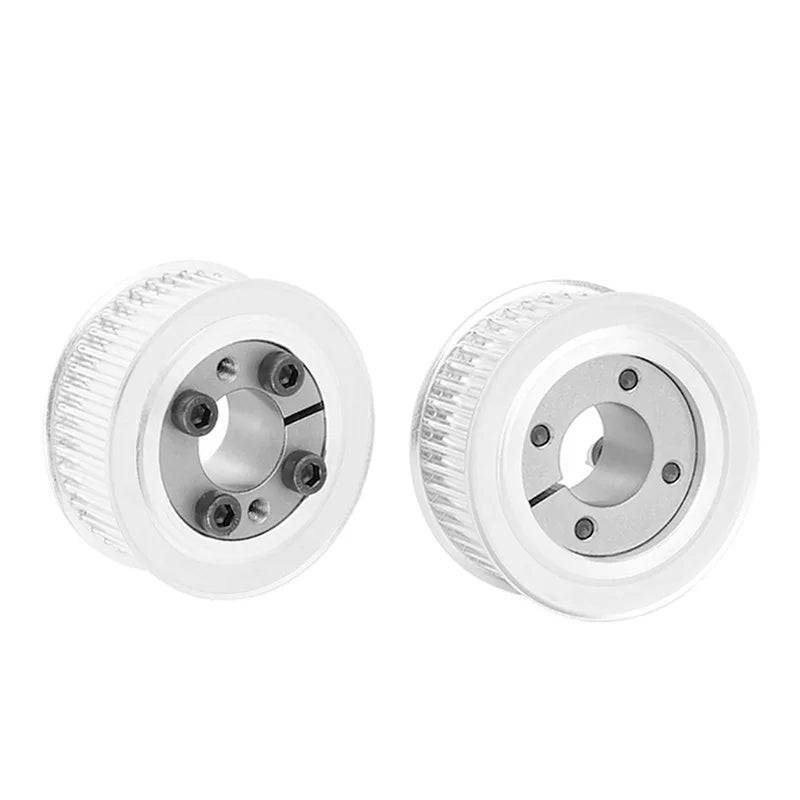

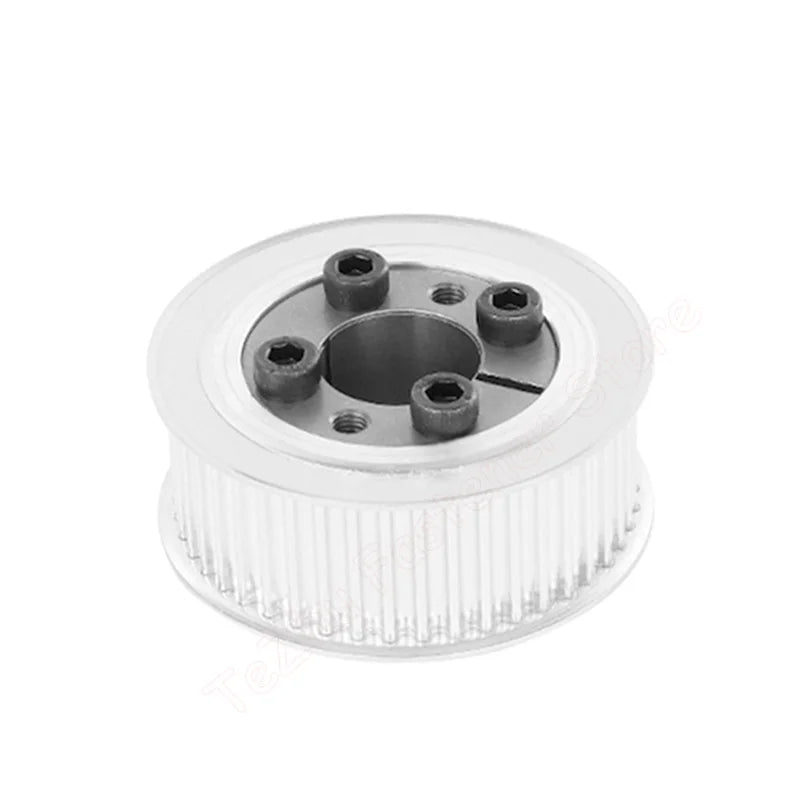

Keyless Timing Pulley Expansion Sleeve Bushing Synchronous Wheel – 24 Teeth, HTD3M Model
The Keyless Timing Pulley Expansion Sleeve Bushing Synchronous Wheel combines high-quality materials and precision engineering for reliable performance in synchronization and power transmission. The timing pulley is made from durable aluminum alloy with a galvanized iron edge, offering excellent corrosion resistance. It features a Z21 expansion sleeve made of 45# steel, providing strength and torque resistance for secure mounting. With a 3 mm (0.12 inches) teeth pitch and 24 teeth, this pulley ensures smooth and efficient transmission, suitable for a wide range of industrial applications. The bore sizes and slot width options offer flexibility for various shaft and belt sizes.

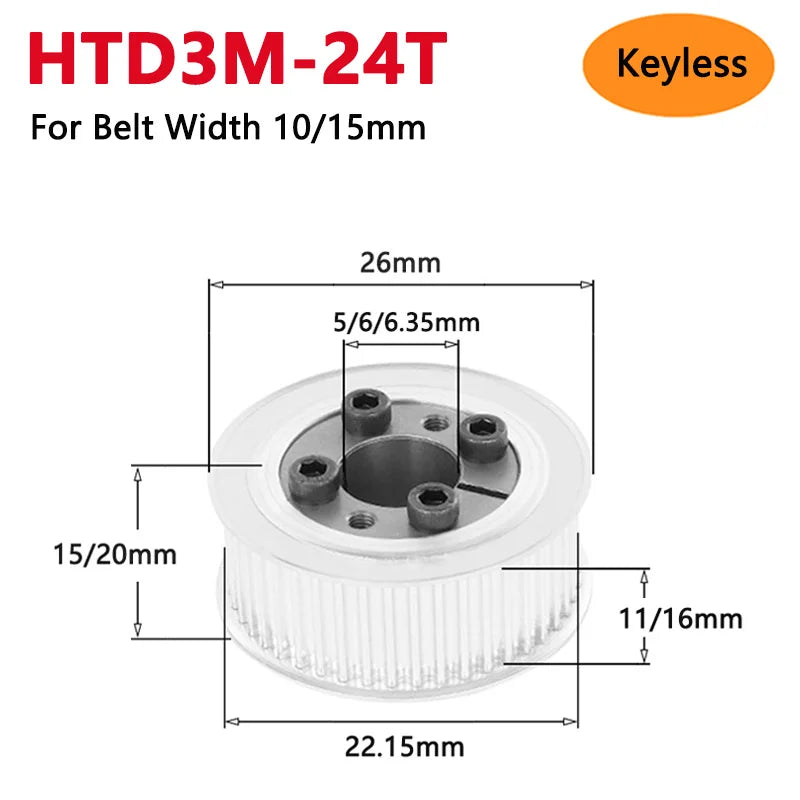

Technical Specifications:
| Specification | Details |
|---|---|
| Timing Pulley Material | High-quality aluminum alloy with galvanized iron edge |
| Expansion Sleeve Material | 45# steel for strength and durability |
| Timing Pulley Model | HTD3M |
| Teeth Pitch | 3 mm (0.12 inches) |
| Number of Teeth | 24 |
| Bore Sizes | 5 mm, 6 mm, 6.35 mm (0.20 to 0.25 inches) |
| Slot Width | 11 mm, 16 mm (0.43 and 0.63 inches) for belts of 10 mm, 15 mm (0.39 and 0.59 inches) |
| Expansion Sleeve Type | Z21 |
Application:
Ideal for use in precision transmission systems where accurate synchronization and torque resistance are essential, such as in industrial machinery and automation systems.
Package Includes:
- 1 x Keyless Timing Pulley Expansion Sleeve Bushing Synchronous Wheel
- Packaging: Plastic bag or carton box, customizable based on order size
