SZ308 Digital Multimeter – AC/DC Voltage & Current Meter, Resistance, Diode, hFE, Square Wave, LCD Backlight
Specifications
| Parameter | Value |
|---|---|
| Model | SZ308 |
| Brand | ANENG |
| Display | Digital LCD with backlight |
| Max display | 1999 counts |
| Operating mode | Manual range |
| Operating temperature | 0–40 °C |
| Material | ABS |
| Battery type | 6F22 9V (not included) |
| Certifications | CE, UL |
| High-concern chemicals | None |
| Smart device | No |
| Resistance range | 200–2000 kΩ |

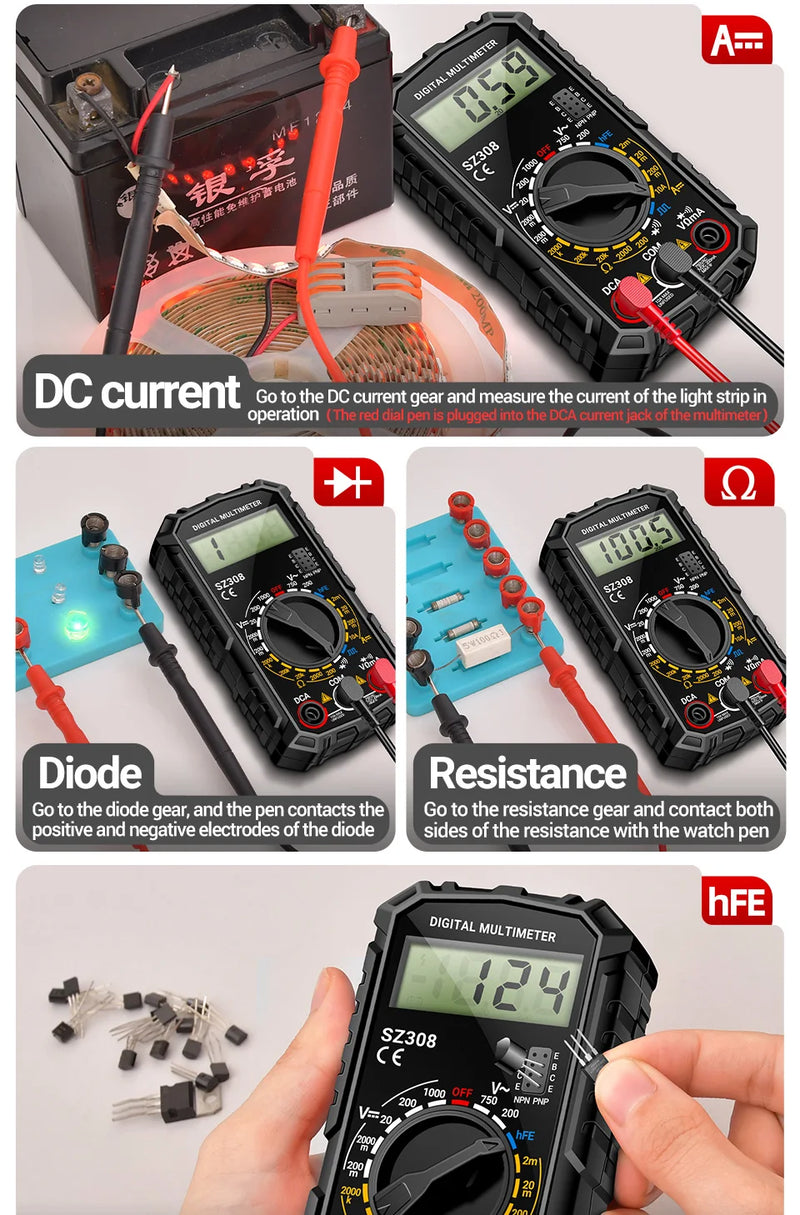

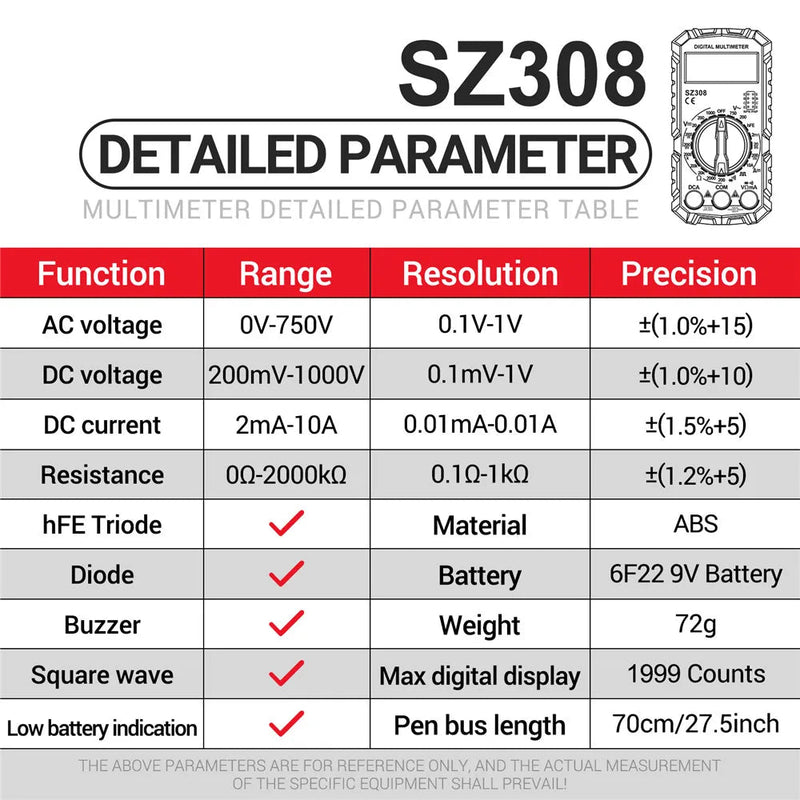

Measurement functions and accuracy
| Function | Range | Resolution | Precision |
|---|---|---|---|
| AC voltage | 0–750 V | 0.1 V–1 V | ±(1.0% + 15) |
| DC voltage | 200 mV–1000 V | 0.1 mV–1 V | ±(1.0% + 10) |
| DC current | 2 mA–10 A | 0.01 mA–0.01 A | ±(1.5% + 5) |
| Resistance | 0–2000 kΩ | 0.1 Ω–1 kΩ | ±(1.2% + 5) |

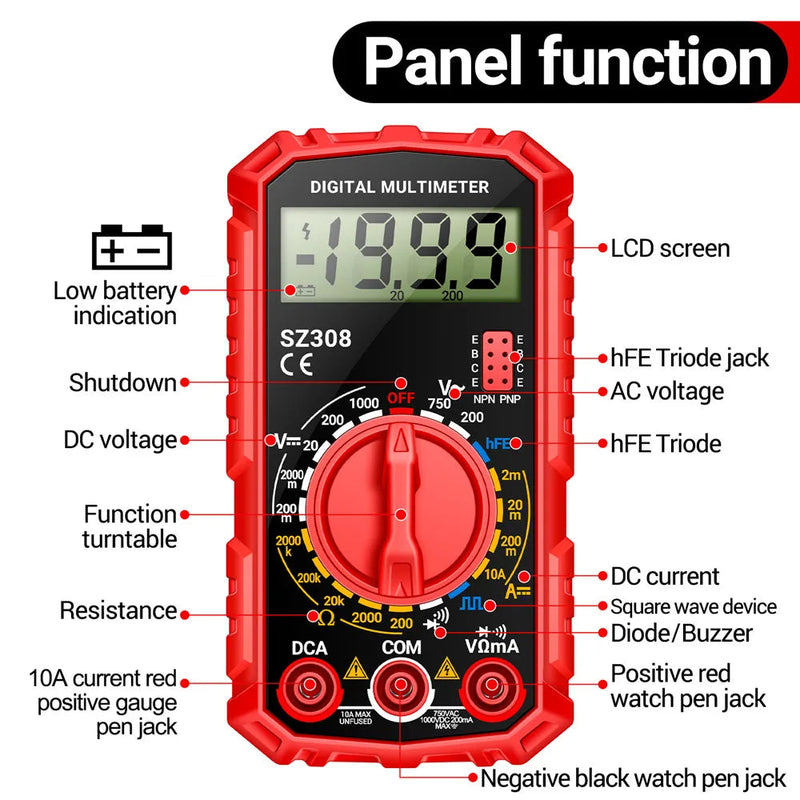

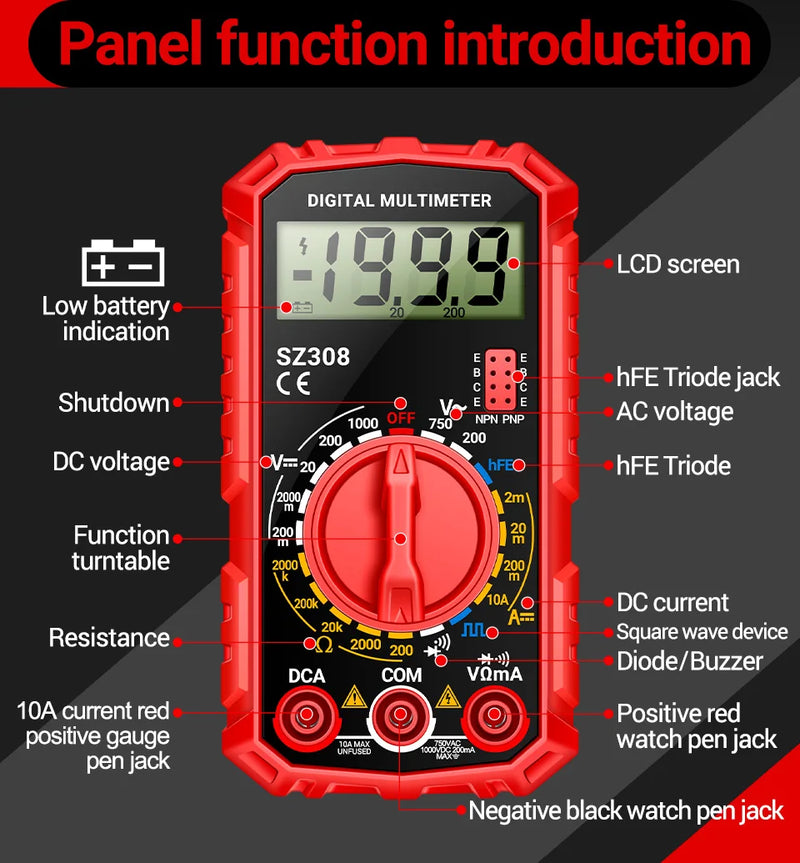

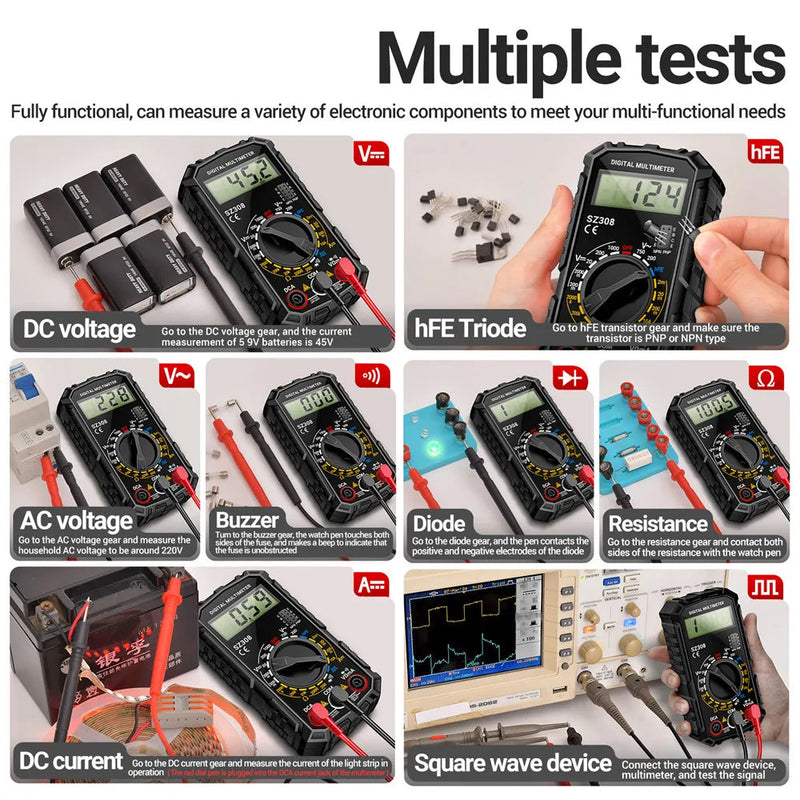

Supported tests and extra features
| Feature | Supported |
|---|---|
| Diode test | Yes |
| Continuity buzzer | Yes |
| hFE transistor test | Yes |
| Square wave | Yes |
| Low battery indication | Yes |

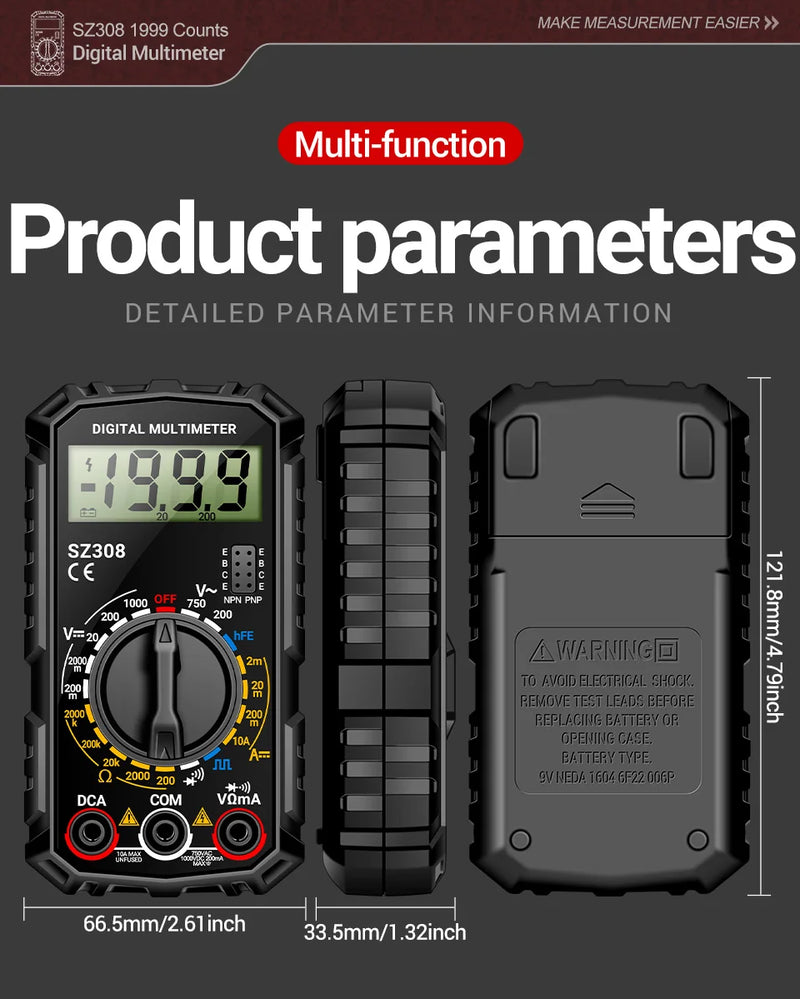

Size and weight
| Parameter | Value |
|---|---|
| Weight | 72 g |
| Test lead length (pen bus length) | 70 cm / 27.5 inch |

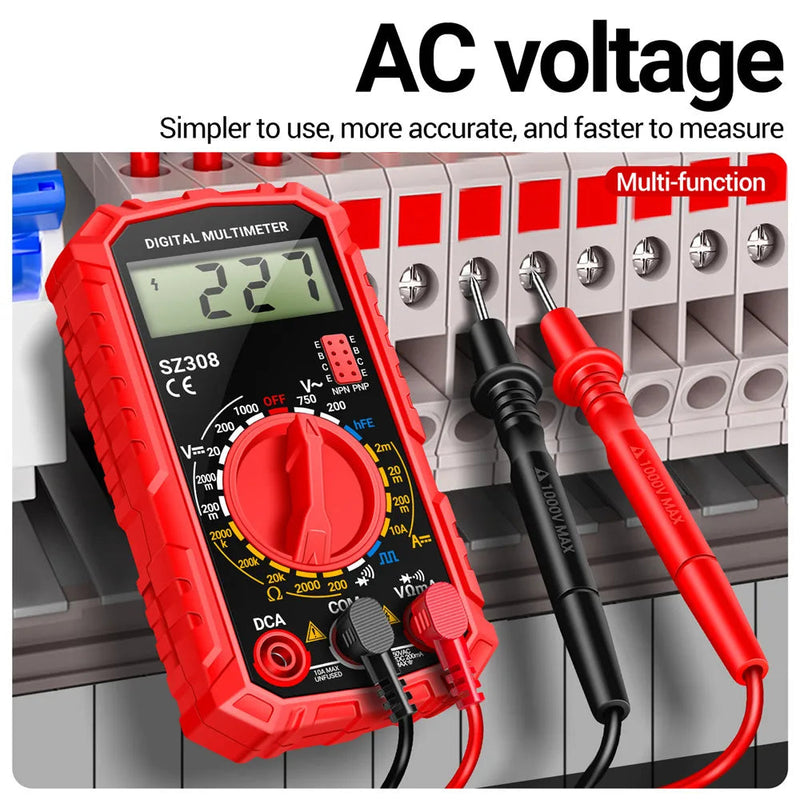

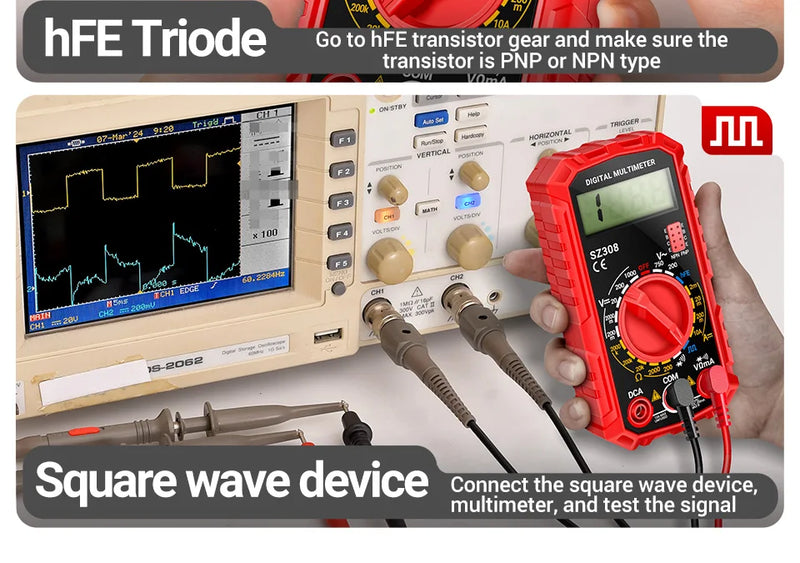

The SZ308 is a handheld digital multimeter built for everyday electrical testing in the home, workshop, or on-site jobs. It measures AC and DC voltage, AC/DC current and resistance, and it also supports diode testing, continuity buzzer, hFE transistor testing and square wave output checks. Thanks to the clear digital LCD with backlight, readings stay visible even in low light, making it a practical tool for electricians, DIY users and electronics troubleshooting.

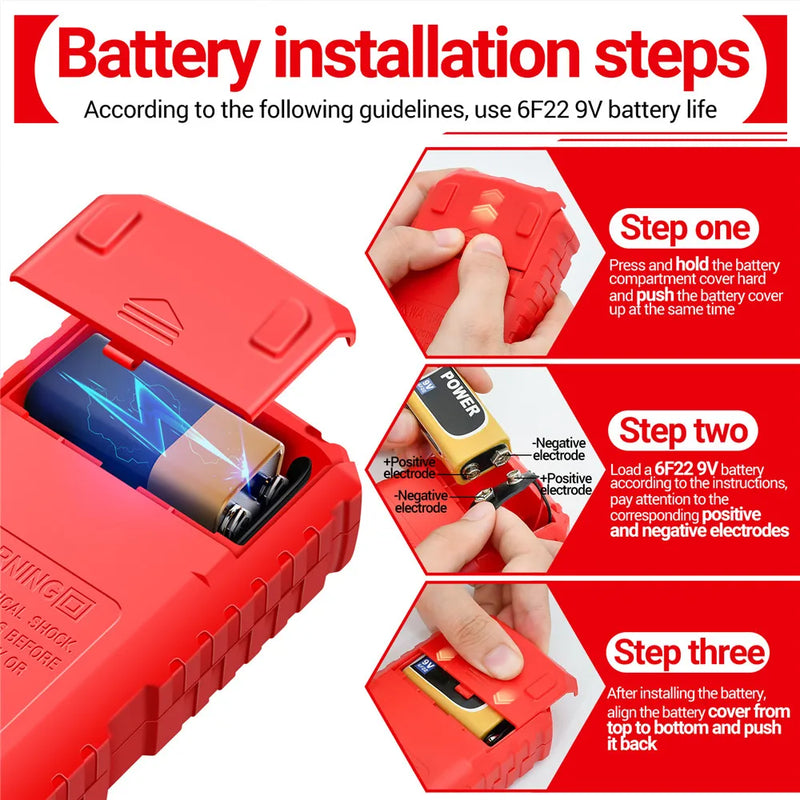

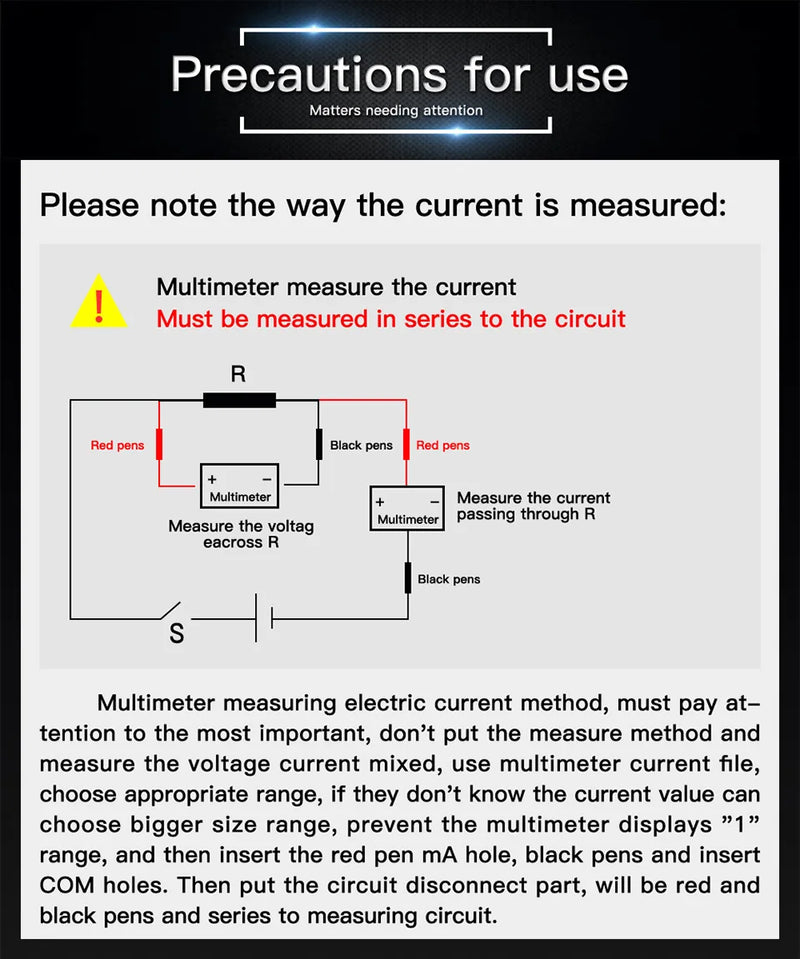

This SZ308 multimeter uses manual range selection, which gives you reliable control when measuring unknown values. For best results when measuring current, always use the correct current input and start with a higher range if you’re unsure of the expected value. The meter is shipped without a battery and is powered by a standard 9V (6F22) battery.

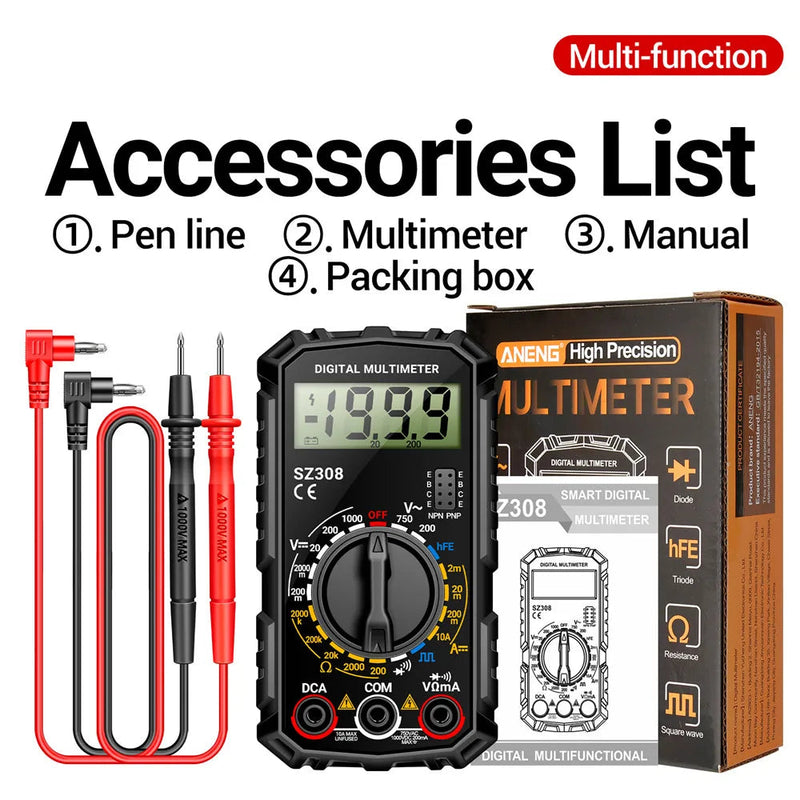

Package contents
Item 1: SZ308 Digital Multimeter (battery not included)
Item 2: Test leads
Item 3: English user manual
Item 4: Packaging box
Special note: This product is shipped without batteries.
