DM850 Digital Multimeter – 1999 Counts AC/DC Voltage Tester, Ohm Meter, DC Current Ammeter, Continuity, Diode
Specifications
| Parameter | Value |
|---|---|
| Model | DM850 |
| Display | Digital display, 1999 counts |
| Operating mode | Manual range |
| Operating temperature | 0–40 °C |
| Dimensions | 139 × 74.5 × 33.6 mm |
| Battery included | No |
| Certification | CE, UL |
| High-concern chemicals | None |
| Smart device | No |
| AC voltage ranges | 200 V / 600 V |
| DC voltage ranges | 200 mV / 2000 mV / 20 V / 200 V / 600 V |
| DC current ranges | 200 µA / 2000 µA / 20 mA / 200 mA / 10 A |
| Resistance ranges | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 2000 kΩ |
| Frequency range (AC) | 45 Hz – 450 Hz |
| Overload protection | 15 seconds |
Measurement accuracy (by function)
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV | ±(2% of rdg + 3D) |
| DC Voltage | 2000 mV / 20 V / 200 V | ±(2% of rdg + 5D) |
| DC Voltage | 600 V | ±(2.5% of rdg + 5D) |
| AC Voltage | 200 V / 600 V | ±(2% of rdg + 10D) |
| DC Current | 200 µA / 2000 µA / 20 mA | ±(2% of rdg + 2D) |
| DC Current | 200 mA | ±(2.5% of rdg + 2D) |
| DC Current | 10 A | ±(2.5% of rdg + 10D) |
| Resistance | 200 Ω | ±(2.5% of rdg + 10D) |
| Resistance | 2000 Ω / 20 kΩ / 200 kΩ / 2000 kΩ | ±(2.5% of rdg + 4D) |
Included functions
| Feature | Availability |
|---|---|
| Diode test | Yes |
| Audible continuity test | Yes |
| Temperature measurement | Yes |
| Signal generator (single generator) | Yes |
| Low battery indication | Yes |
| Full-range overload protection | Yes |

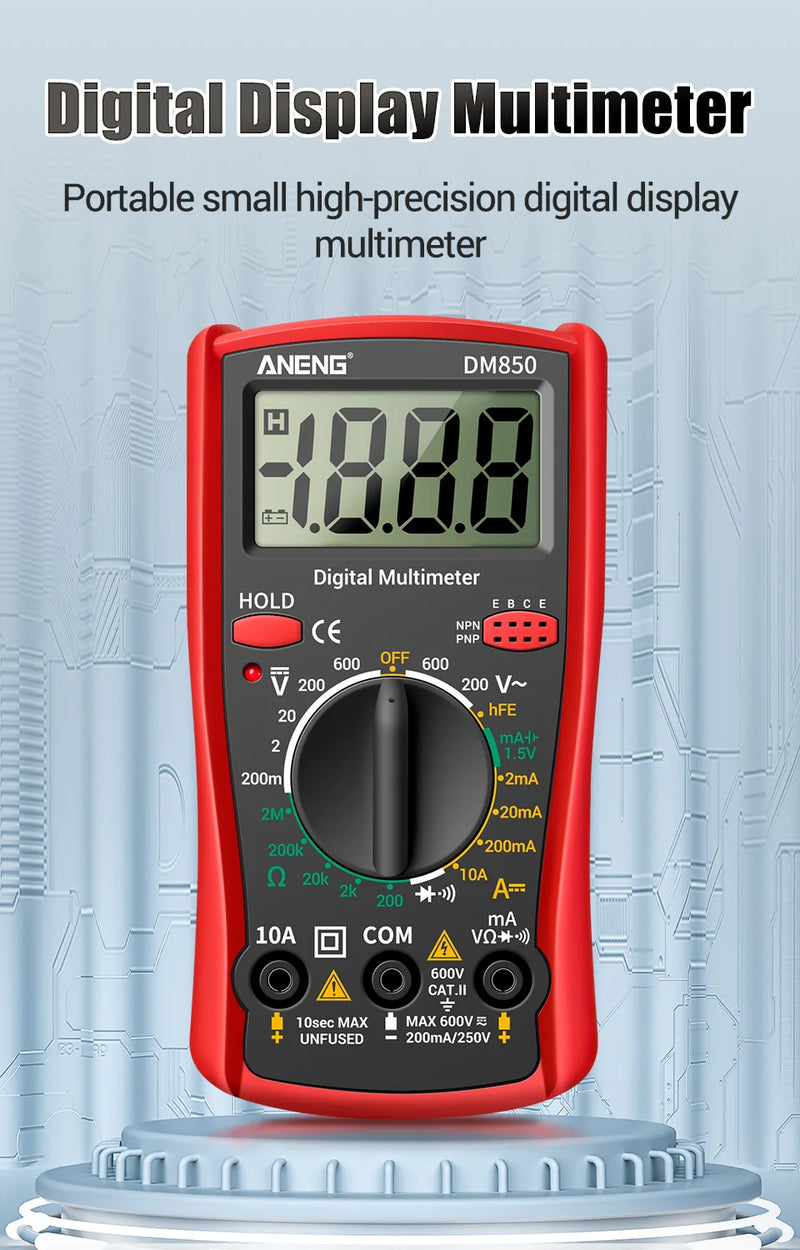

The DM850 is a compact, professional-style digital multimeter designed for fast troubleshooting and everyday electrical measurements in the lab, workshop, home or DIY projects. It features a clear 1999-count digital display and supports the most common measurements you need for diagnostics: AC/DC voltage, DC current, and resistance. The meter also includes diode testing, audible continuity for quick wiring checks, temperature measurement, overload protection and low-battery indication, making it a reliable pocket-size tool for electricians and hobbyists.
DM850 is built to be easy to carry while still offering a wide set of functions for practical use. The device is shipped without a battery and is intended for routine measurements in household electronics, basic installations, repairs and testing tasks.

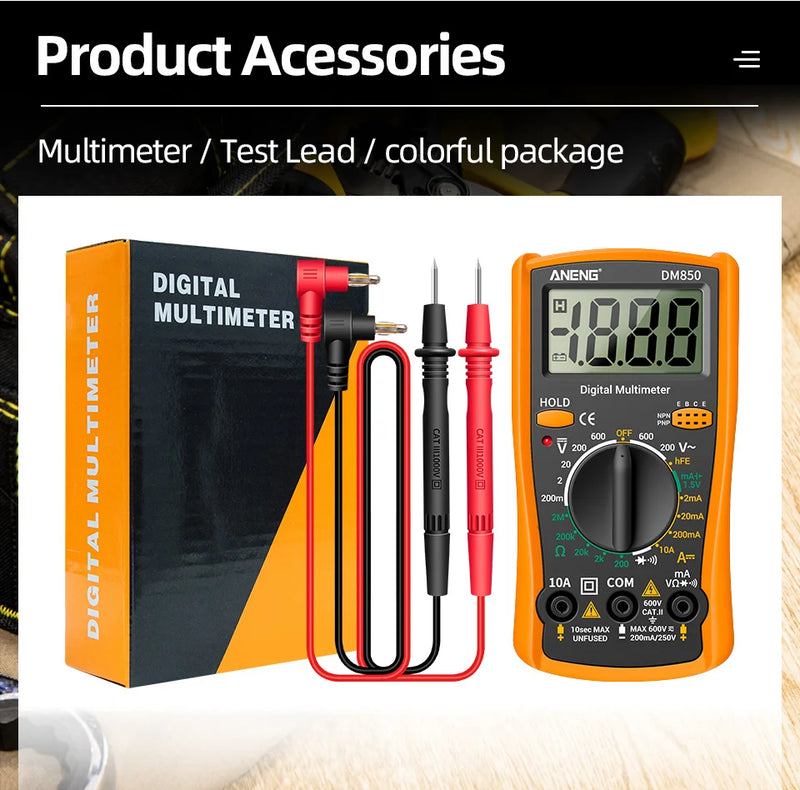

Package contents (without battery)
Item 1: 1 × DM850 Multimeter
Item 2: 1 × Test leads
Item 3: 1 × User manual
Item 4: 1 × Outer packing box (optional by selection)
