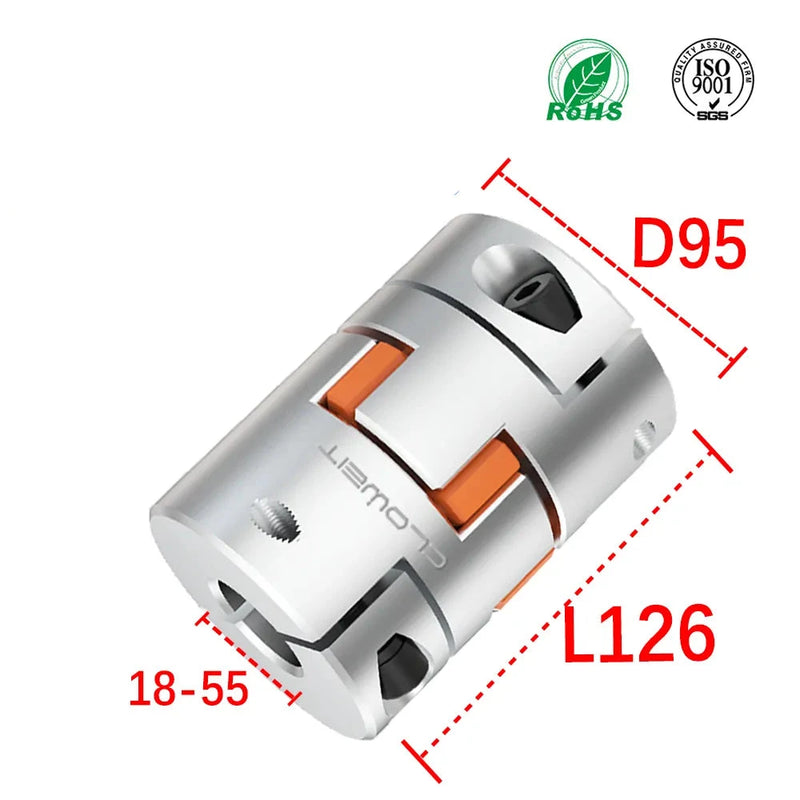

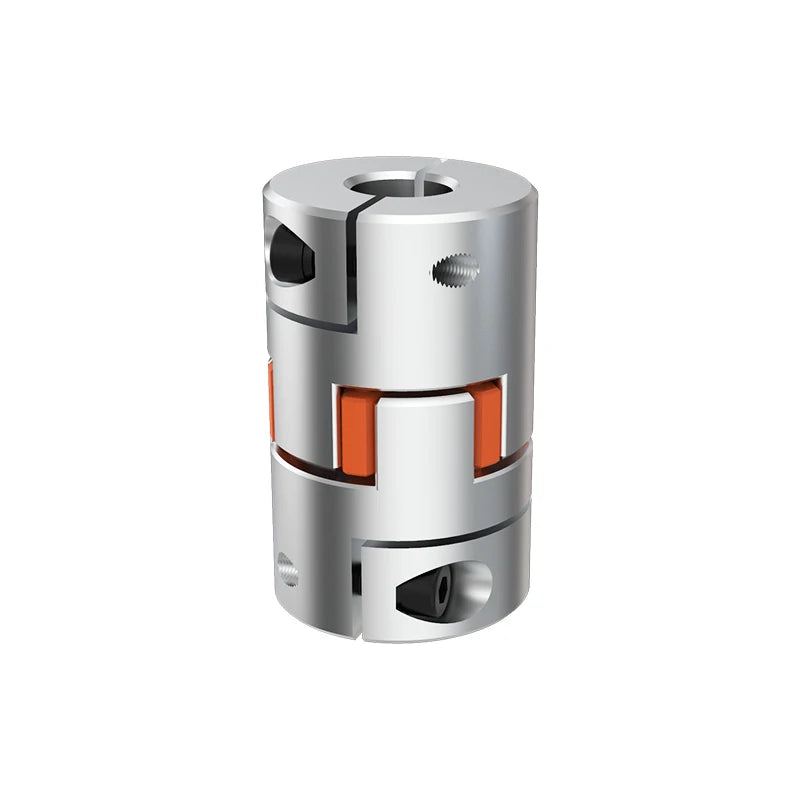

LF-B D95L126 Aluminum Shaft Coupler – Jaw Plum Spider Clamping Type for CNC, 95mm x 126mm
The LF-B D95L126 Aluminum Shaft Coupler is designed for CNC applications requiring high torque transmission and flexibility. Utilizing a jaw plum spider clamping system, this coupler provides superior performance in demanding environments, ensuring precise power transmission for CNC machinery.
Technical Specifications
| Model | Outer Diameter (mm/inch) | Length (mm/inch) | Bore Size (mm/inch) | Bolt Size | Max Torque (Nm) | Max Speed (rpm) | Weight (kg/lbs) |
|---|---|---|---|---|---|---|---|
| LF-B-D95L126 (4 Jaw) | 95 mm / 3.74 in | 126 mm / 4.96 in | 18-55 mm / 0.71-2.17 in | M10 | 73 Nm | 6000 rpm | 0.15 kg / 0.33 lbs |
Performance Data
| Model | Max Speed (rpm) | Max Torque (Nm) | Moment of Inertia (kg·m²) | Weight (kg/lbs) |
|---|---|---|---|---|
| LF-B-D95L126 (4 Jaw) | 6000 rpm | 420 Nm | 2.3 x 10⁻³ | 0.15 kg / 0.33 lbs |
Key Features:
- High Durability: Made from top-grade aluminum for durability and long service life.
- Precision Design: Suitable for CNC applications requiring exact torque and speed control.
- Wide Bore Range: Compatible with shafts from 18mm to 55mm (0.71-2.17 in).
- High Torque Capacity: Handles up to 73 Nm of torque, ideal for heavy-duty operations.
- Lightweight and Compact: Weighs only 0.15 kg (0.33 lbs) while supporting high-speed rotations of up to 6000 rpm.
